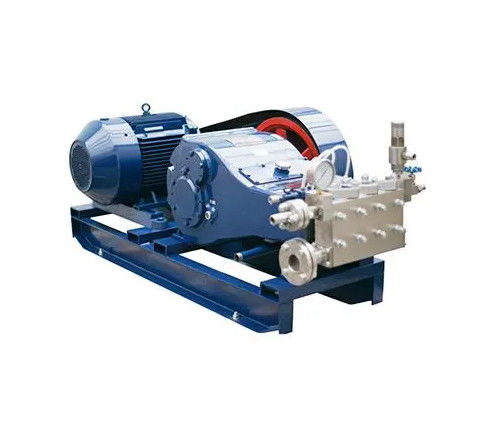

3WP20 High Pressure Reciprocating Pump Triplex Plunger Pump
Triplex Plunger Pump Introduction:
1. Suitable for the pressure-testing pump, high-pressure cleaning pump, metering pump, process pump, medicine-adding pump, hydrostatic pressure pump and oil transfer pump etc.for the valves and pipes.
2. Assembling type: horizontal type, vertical type, fixed type and movable type.
3. Drive type: electric motor driven type, diesel engine driven type, belt pulley type, gear box type, electro-magnetic speed-adjusting type and inverter speed ad justing type.
4. Technical data shown in the date sheet is for reference of the selection. Each kind of the pump is equipped with safety adjusting valve. Pressure of each pump can be arbitrary adjusted.
5. In case the flow rate shown in the data sheet can not be met your requirement when you make selection, you can adjust the flow rate by means of electro-magnetic speed-adjusting, inverter speed-adjusting or change the diameter of the plunger to get requested flow rate.
Triplex Plunger Pump Specification:
|
Rated Plunger Load: 350kg |
Stroke Length: 20mm |
Weight: 80kg |
|||||||||||
|
Model 3WP20 High Pressure Triplex Reciprocating Pump |
|||||||||||||
| Plunger Diameter (mm) | 30 | 28 | 26 | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
|
Work Pressure (MPa) |
4 | 5 | 6 | 7 | 8 | 10 | 14 | 16 | 23 | 30 | 45 | ||
| Speed (min) | Flow L/min M3/h Power KW | ||||||||||||
|
150 |
L/min | 6.36 | 5.54 | 4.78 | 4.07 | 3.42 | 2.83 | 2.29 | 1.81 | 1.38 | 1.02 | 0.71 | |
| M³/h | 0.381 | 0.332 | 0.287 | 0.244 | 0.205 | 0.17 | 0.137 | 0.109 | 0.083 | 0.061 | 0.042 | ||
| KW | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||
|
200 |
L/min | 8.5 | 7.38 | 6.37 | 5.43 | 4.56 | 3.77 | 3.05 | 2.41 | 1.85 | 1.37 | 0.94 | |
| M3/h | 0.509 | 0.443 | 0.382 | 0.326 | 0.274 | 0.226 | 0.183 | 0.145 | 0.111 | 0.082 | 0.057 | ||
| KW | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||
|
250 |
L/min | 10.6 | 9.23 | 7.96 | 6.78 | 5.70 | 4.71 | 3.82 | 3.01 | 2.31 | 1.71 | 1.18 | |
| M3/h | 0.636 | 0.554 | 0.478 | 0.407 | 0.342 | 0.283 | 0.229 | 0.181 | 0.138 | 0.103 | 0.071 | ||
| KW | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
|
300 |
L/min | 12.7 | 11.1 | 9.55 | 8.14 | 6.84 | 5.65 | 4.58 | 3.62 | 2.77 | 2.05 | 1.41 | |
| M3/h | 0.763 | 0.665 | 0.573 | 0.488 | 0.410 | 0.339 | 0.275 | 0.217 | 0.166 | 0.123 | 0.085 | ||
| KW | 1 | 1 | 1 | 1.2 | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | ||
|
350 |
L/min | 14.8 | 12.9 | 11.4 | 9.50 | 7.98 | 6.59 | 5.34 | 4.22 | 3.23 | 2.39 | 1.65 | |
| M3/h | 0.89 | 0.775 | 0.669 | 0.569 | 0.479 | 0.395 | 0.320 | 0.253 | 0.194 | 0.144 | 0.099 | ||
| KW | 1.2 | 1.5 | 1.5 | 1.5 | 1.2 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
|
400 |
U/min | 17.0 | 14.8 | 12.74 | 10.85 | 9.12 | 7.54 | 6.10 | 4.82 | 3.69 | 2.74 | 1.88 | |
| M3/h | 1.02 | 0.888 | 0.764 | 0.651 | 0.547 | 0.452 | 0.366 | 0.289 | 0.222 | 0.164 | 0.113 | ||
| KW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.8 | 1.5 | 1.8 | 1.8 | 1.8 | ||
|
450 |
L/min | 19.1 | 16.6 | 14.33 | 12.21 | 10.26 | 8.48 | 6.87 | 5.43 | 4.15 | 3.08 | 2.12 | |
| M³/h | 1.14 | 0.997 | 0.860 | 0.732 | 0.616 | 0.509 | 0.412 | 0.326 | 0.249 | 0.185 | 0.127 | ||
| KW | 1.6 | 1.5 | 1.8 | 1.8 | 1.6 | 1.8 | 2.0 | 1.8 | 2.0 | 1.8 | 2.0 | ||
|
500 |
L/min | 21.2 | 18.5 | 15.92 | 13.56 | 11.40 | 9.42 | 7.6 | 6.03 | 4.62 | 3.42 | 2.36 | |
| M3/h | 1.27 | 1.11 | 0.955 | 0.814 | 0.684 | 0.565 | 0.458 | 0.362 | 0.27 | 0.205 | 0.141 | ||
| KW | 1.8 | 1.8 | 2.0 | 2.0 | 1.8 | 1.8 | 2.0 | 2.0 | 2.2 | 2.0 | 2.2 | ||
※ When you want to select one kind of high pressure reciprocating pump with a certain flow rate and pressure and high pressure pump for special medium,please acquire its latest general drawing and foundation drawing from our factory.
Triplex Plunger Pump Application:
1. High-Pressure Applications
The High Pressure Triplex Plunger Pump is designed to create high discharge pressure. Hence it is widely used for spray dryers, jet cleaning, pressure cleaning, mobile oil field and drilling mud pumps, sewage cleaning and other high-pressure applications.
2. Pulp & Paper Industries
The paper manufacturing process demands high-pressure pumps. This is where High Pressure Triplex Plunger Pump can help provide the requisite high-pressure discharge making it widely used in this sector.
3. Processing Industries
The High Pressure Reciprocating Pump is very suitable for many processes that need high-pressure discharge pumps with compact size. Given their ease of installation and reliable operations, these pumps are widely used in processing industries.
4. Construction Sector
Apart from high-pressure cleaning, the High Pressure Reciprocating Pump is also used extensively in road equipment and construction equipment due to their ability to generate high discharge pressure.
Our products are sold all over the world, you can rest assured.
