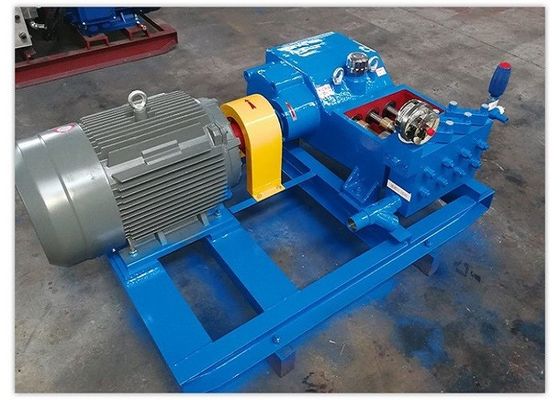

3WP35 Reciprocating Triplex Plunger Pump Electric Plunger Pump
Triplex Plunger Pump Introduction:
The High Pressure Reciprocating Pump is mainly composed of a power part composed of a seat, a crankshaft, a connecting rod, a crosshead, etc., and a hydraulic part consisting of an inlet and discharge valve, a plunger, a stuffing box, a pump body, etc., and is installed together with the power source and transmission mechanism. On a common chassis. When the reciprocating pump is working, the motor transmits it to the crankshaft through the belt or reducer, and then converts the rotation into linear motion through the connecting rod and crosshead. The three plungers are 120° to each other in turn, and alternately control the liquid entering the water collector. The liquid medium in the valve increases the pressure and is sent to the use through the drain valve. The liquid end adopts a symmetrical design, with inlets and outlets on both sides for easy placement and installation, and is equipped with a full-open safety valve.
The Plunger Pump has the characteristics of compact structure, small size, high efficiency, beautiful appearance, convenient operation and maintenance, light and flexible movement, etc. At the same time, different special designs can be made according to the different requirements of users, different environments, and different transmission methods to meet the needs of the majority of users.
Triplex Plunger Pump Specification:
|
Rated Plunger Load: 650kg |
Stroke Length: 35mm |
Weight: 120kg |
|||||||||||
|
Model 3WP35 High Pressure Triplex Reciprocating Pump |
|||||||||||||
| Plunger Diameter (mm) | 42 | 41 | 38 | 35 | 32 | 29 | 25 | 22 | 20 | 18 | 16 | 14 | |
| Work Pressure (MPa) | 2 | 4 | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | |
| Speed (min) | Flow L/min M3/h Power KW | ||||||||||||
|
90 |
L/min | 13 | 12 | 11 | 10 | 8 | 6 | 4.6 | 3.5 | 2.9 | 2.4 | 2 | 1.4 |
| M³/h | 0.78 | 0.75 | 0.64 | 0.54 | 0.45 | 0.37 | 0.27 | 0.21 | 0.17 | 0.14 | 0.12 | 0.08 | |
| KW | 0.75 | 1 | 1.5 | 1.6 | 1.6 | 1.44 | 1.47 | 1.4 | 1.45 | 1.44 | 1.6 | 1.4 | |
|
110 |
L/min | 16 | 15 | 13 | 11 | 9 | 7.6 | 5.6 | 4.3 | 3.6 | 2.9 | 2.5 | 1.8 |
| M³/h | 0.96 | 0.91 | 0.78 | 0.66 | 0.55 | 0.45 | 0.34 | 0.26 | 0.21 | 0.17 | 0.15 | 0.1 | |
| KW | 1 | 1.2 | 1.56 | 1.76 | 1.8 | 1.8 | 1.79 | 1.72 | 1.8 | 1.74 | 2.2 | 1.7 | |
| 130 | L/min | 19 | 18 | 15 | 13 | 11 | 9 | 6.6 | 5 | 4.3 | 3.4 | 2.9 | 2 |
| MP/h | 1.13 | 1.1 | 0.93 | 0.79 | 0.66 | 0.54 | 0.4 | 0.31 | 0.25 | 0.2 | 0.17 | 0.12 | |
| KW | 1.5 | 1.8 | 2 | 2 | 2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.32 | 2.2 | ||
| 150 | L/min | 22 | 20 | 18 | 15 | 13 | 10 | 8 | 6 | 5 | 4 | 3 | 2 |
| M³/h | 1.30 | 1.20 | 1.10 | 0.89 | 0.78 | 0.60 | 0.48 | 0.36 | 0.30 | 0.24 | 0.18 | 0.12 | |
| KW | 0.75 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | |
| 200 | L/min | 29 | 28 | 24 | 20 | 17 | 14 | 10 | 8 | 6 | 5 | 4 | 3 |
| MP/h | 1.70 | 1.68 | 1.44 | 1.20 | 1.02 | 0.84 | 0.60 | 0.48 | 0.36 | 0.30 | 0.24 | 0.18 | |
| KW | 1.2 | 2.2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
|
280 |
L/min | 40 | 38 | 33 | 28 | 23 | 19 | 14 | 11 | 9 | 7 | 6 | 4 |
| M³/h | 2.40 | 2.26 | 1.98 | 1.68 | 1.38 | 1.14 | 0.84 | 0.66 | 0.54 | 0.42 | 0.36 | 0.24 | |
| KW | 2.2 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
|
330 |
L/min | 48 | 46 | 39 | 33 | 28 | 23 | 17 | 13 | 11 | 9 | 7 | 5 |
| MP/h | 2.87 | 2.75 | 2.34 | 1.98 | 1.68 | 1.38 | 1.02 | 0.78 | 0.66 | 0.54 | 0.42 | 0.30 | |
| KW | 2 | 4 | 5 | 5 | 5.5 | 5.5 | 5.5 | 5 | 5.5 | 5 | 5.5 | 5 | |
| 400 | L/min | 58 | 55 | 47 | 40 | 34 | 28 | 20 | 16 | 13 | 10 | 8 | 6 |
| M³/h | 3.47 | 3.29 | 2.81 | 2.39 | 2.03 | 1.68 | 1.20 | 0.96 | 0.78 | 0.60 | 0.48 | 0.36 | |
| KW | 2 | 4 | 5.5 | 6 | 7 | 7 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 450 | L/min | 65 | 62 | 53 | 45 | 38 | 31 | 23 | 18 | 15 | 12 | 9 | 7 |
| M³/h | 3.89 | 3.71 | 3.17 | 2.69 | 2.27 | 1.86 | 1.38 | 1.08 | 0.90 | 0.72 | 0.54 | 0.42 | |
| KW | 3 | 5 | 6 | 7 | 7.5 | 7 | 7 | 7 | 7.5 | 7 | 7 | 7 | |
※ When you want to select one kind of high pressure reciprocating pump with a certain flow rate and pressure and high pressure pump for special medium,please acquire its latest general drawing and foundation drawing from our factory.
Triplex Plunger Pump Application:
Our products are suitable for use as process pumps in petroleum, chemical and fertilizer industries, and can also be used as high-pressure water cleaning and descaling in metallurgy, construction, shipbuilding, sugar, paper and other industries, as transmission sources for hydraulic machinery, as well as in food, pharmaceuticals, machinery, etc. Sectors that require the production of high-pressure liquids.
Our products are sold all over the world, you can rest assured.
