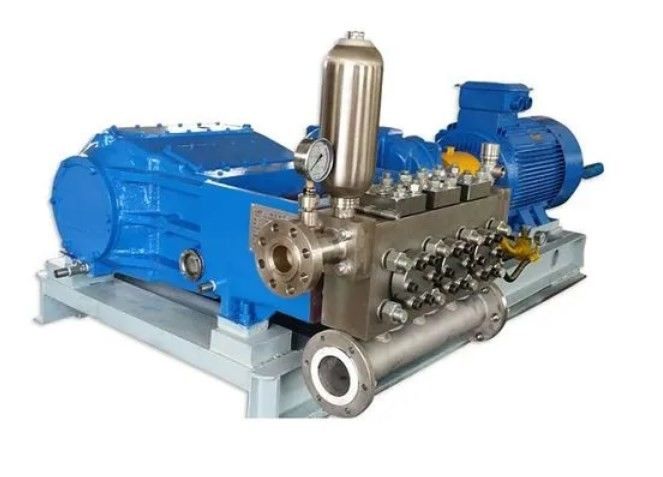

3WP40 Industrial Direct Drive Plunger Pump Triplex Reciprocating Pump
Triplex Reciprocating Pump Introduction:
1. It consists of three plunger arrangements working in tandem
2. The pump design is simple and easy to install
3. Can handle highly viscous liquids or fluids with solid particles
4. Generates very high discharge pressure consistently
5. Discharge size and temperature can be customized
6. A variety of materials can be used for construction based on pump application
Triplex Reciprocating Pump Specification:
|
Rated Plunger Load: 1200kg |
Stroke Length: 40mm |
Weight: 250kg | |||||||||||
|
3WP40 High Pressure Triplex Reciprocating Pump |
|||||||||||||
| Plunger Diameter (mm) | 60 | 55 | 50 | 43 | 35 | 30 | 27 | 24 | 22 | 19 | 17 | 15 | |
| Work Pressure (MPa) | 2 | 4 | 6 | 8 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | |
| Speed (min) | Flow L/min M3/h Power KW | ||||||||||||
|
90 |
Umin | 30 | 25 | 21 | 15 | 10 | 7.6 | 6.1 | 4.8 | 4.1 | 3 | 2.4 | 2.1 |
| M³/h | 1.8 | 1.5 | 1.2 | 0.9 | 0.62 | 0.45 | 0.37 | 0.29 | 0.24 | 0.18 | 0.14 | 0.12 | |
| KW | 1.2 | 2 | 2.5 | 2.4 | 2.4 | 2.43 | 2.44 | 2.4 | 2.46 | 2.4 | 2.4 | 2.52 | |
|
120 |
L/min | 40 | 34 | 28 | 21 | 14 | 10 | 8.2 | 6.5 | 5.4 | 4 | 3.2 | 2.5 |
| MP/h | 2.4 | 2 | 1.7 | 1.2 | 0.8 | 0.61 | 0.49 | 0.39 | 0.32 | 0.24 | 0.19 | 0.15 | |
| KW | 1.6 | 2.72 | 3.36 | 3.36 | 3.36 | 3.2 | 3.28 | 3.25 | 3.24 | 3.2 | 3.2 | 3 | |
|
140 |
L/min | 47 | 39 | 32 | 24 | 16 | 12 | 9.6 | 7.6 | 6.3 | 4.7 | 3.8 | 2.9 |
| M²/h | 2.8 | 2.4 | 1.9 | 1.46 | 0.97 | 0.72 | 0.57 | 0.45 | 0.38 | 0.28 | 0.22 | 0.17 | |
| KW | 1.8 | 3.12 | 3.84 | 3.84 | 3.84 | 3.84 | 3.84 | 3.8 | 3.78 | 3.76 | 3.8 | 3.48 | |
|
160 |
L/min | 54 | 45 | 38 | 28 | 18 | 13 | 11 | 8 | 7 | 5 | 4 | 3 |
| M?/h | 3.20 | 2.70 | 2.30 | 1.68 | 1.08 | 0.78 | 0.66 | 0.48 | 0.42 | 0.30 | 0.24 | 0.18 | |
| KW | 2 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
|
220 |
L/min | 75 | 62 | 52 | 38 | 25 | 18 | 15 | 12 | 10 | 7 | 6 | 4 |
| M³/h | 4.50 | 3.70 | 3.11 | 2.26 | 1.50 | 1.08 | 0.90 | 0.72 | 0.60 | 0.42 | 0.36 | ||
| KW | 3 | 5 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 5 | |
|
300 |
L/min | 102 | 85 | 70 | 52 | 34 | 25 | 20 | 16 | 13 | 10 | 8 | 6 |
| M³/h | 6.11 | 5.19 | 4.19 | 3.11 | 2.04 | 1.50 | 1.20 | 0.96 | 0.78 | 0.60 | 0.48 | 0.36 | |
| KW | 4 | 7 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 7 | |
|
350 |
U/min | 118 | 100 | 82 | 60 | 40 | 30 | 24 | 19 | 16 | 12 | 9 | 7 |
| M²/h | 7.06 | 5.99 | 4.91 | 3.59 | 2.39 | 1.80 | 1.44 | 1.14 | 0.96 | 0.72 | 0.54 | 0.42 | |
| KW | 5 | 8 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 9 | 8 | |
|
400 |
L/min | 135 | 114 | 94 | 70 | 46 | 34 | 27 | 22 | 18 | 13 | 11 | 8 |
| M³/h | 8.08 | 6.83 | 5.63 | 4.19 | 2.75 | 2.04 | 1.62 | 1.32 | 1.08 | 0.78 | 0.66 | 0.48 | |
| KW | 5 | 9 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 10 | 11 | 10 | |
|
450 |
L/min | 153 | 128 | 106 | 78 | 52 | 38 | 31 | 24 | 20 | 15 | 12 | 9 |
| MP/h | 9.16 | 7.66 | 6.35 | 4.67 | 3.11 | 2.28 | 1.86 | 1.44 | 1.20 | 0.90 | 0.72 | 0.54 | |
| KW | 6 | 10 | 13 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 11 | |
※ When you want to select one kind of high pressure reciprocating pump with a certain flow rate and pressure and high pressure pump for special medium,please acquire its latest general drawing and foundation drawing from our factory.
Triplex Reciprocating Pump Application:
1. High-Pressure Applications
The High-Pressure Triplex Plunger Pump is designed to create high discharge pressure. Hence it is widely used for spray dryers, jet cleaning, pressure cleaning, mobile oil field and drilling mud pumps, sewage cleaning and other high-pressure applications.
2. Pulp & Paper Industries
The paper manufacturing process demands high-pressure pumps. This is where High-Pressure Triplex Plunger Pump can help provide the requisite high-pressure discharge making it widely used in this sector.
3. Processing Industries
The High-Pressure Triplex Plunger Pump is very suitable for many processes that need high-pressure discharge pumps with compact size. Given their ease of installation and reliable operations, these pumps are widely used in processing industries.
4. Construction Sector
Apart from high-pressure cleaning, the High-Pressure Triplex Plunger Pumps are also used extensively in road equipment and construction equipment due to their ability to generate high discharge pressure.
