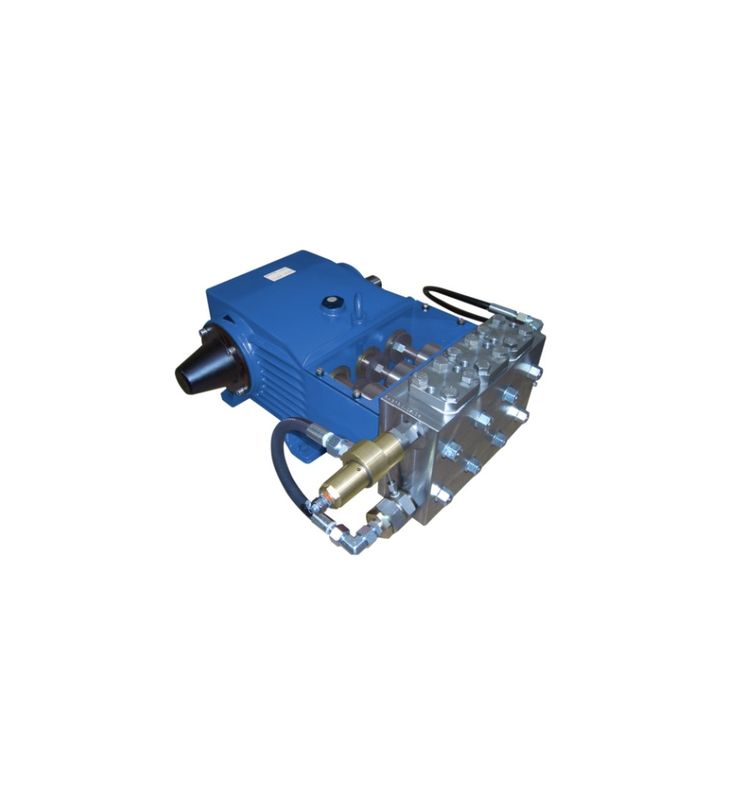

3WP60 High Pressure Plunger Pump Triplex Reciprocating Pump
High Pressure Plunger Pump Introduction:
1. Durable
Triplex Reciprocating Pumps are the most commonly used pumps for drilling operations. triplex plunger pumps are built to the highest quality standards for high-pressure onshore and offshore applications, including injection and hydrostatic testing. Widely used for creating a flow of fluid under extremely high pressure, our triplex high-pressure plunger pumps are designed for optimal durability and reliability.
2. Constant
A positive-displacement or Reciprocating Pump that uses three plungers, or pistons to transfer fluid, it reaches pressure of 1000 bar. Components are designed to provide high performance regardless of conditions or operational wear. The stainless-steel construction is resistant to corrosion. Low-maintenance and reliable, our triplex pumps supply a smooth and constant flow of pressure and powerful suction.
3. Adaptable
Triplex Reciprocating Pumps can be custom engineered to suit your specific application and conditions. Special seals can be fitted to suit your requirements. Fully tested before shipment, we support our products throughout their life cycle to optimize your investment.
High Pressure Plunger Pump Specification:
|
Rated Plunger Load: 2100kg |
Stroke Length: 60mm |
Weight: 500kg | |||||||||||
|
3WP60 High Pressure Triplex Reciprocating Pump |
|||||||||||||
| Plunger Diameter (mm) | 72 | 65 | 60 | 50 | 42 | 38 | 30 | 27 | 22 | 20 | 19 | 16 | |
| Work Pressure (MPa) | 2 | 6 | 8 | 12 | 16 | 20 | 30 | 40 | 60 | 70 | 80 | 100 | |
| Speed (min) | Flow L/min M3/h Power KW | ||||||||||||
|
90 |
U/min | 66 | 53 | 45 | 31 | 22 | 18 | 11.4 | 9.2 | 6.1 | 5 | 4.5 | 3.2 |
| M³/h | 3.9 | 3.2 | 2.7 | 1.9 | 1.3 | 1.1 | 0.68 | 0.55 | 0.37 | 0.3 | 0.27 | 0.19 | |
| KW | 2.64 | 6.36 | 7.2 | 7.44 | 7 | 7.2 | 6.8 | 7.3 | 7.32 | 7 | 7.2 | 6.4 | |
|
110 |
L/min | 80 | 65 | 55 | 39 | 27 | 22 | 14 | 11 | 7.5 | 6.2 | 5.6 | 3.9 |
| M/h | 4.8 | 3.9 | 3.3 | 2.3 | 1.6 | 1.3 | 0.8 | 0.66 | 0.45 | 0.37 | 0.33 | 0.23 | |
| KW | 3.2 | 7.8 | 8.8 | 9.36 | 8.64 | 8.8 | 8.4 | 8.8 | 9 | 8.68 | 8.96 | 7.8 | |
|
130 |
L/min | 95 | 77 | 66 | 46 | 32 | 26 | 16.5 | 13 | 8.8 | 7.3 | 6.6 | 4.7 |
| MP/h | 5.7 | 4.6 | 3.9 | 2.7 | 1.9 | 1.6 | 0.8 | 0.53 | 0.44 | 0.39 | 0.28 | ||
| KW | 3.8 | 9.2 | 10.5 | 11 | 10 | 10 | 9.9 | 10 | 10 | 10 | 10 | 9.4 | |
|
140 |
L/min | 103 | 84 | 71 | 49 | 35 | 28 | 18 | 14 | 10 | 8 | 7 | 5 |
| M³/h | 6.17 | 5.03 | 4.25 | 2.95 | 2.10 | 1.68 | 1.08 | 0.84 | 0.60 | 0.48 | 0.42 | 0.30 | |
| KW | 4 | 10 | 11 | 11 | 11 | 11 | 11 | 11 | 12 | 11 | 11 | 10 | |
|
200 |
L/min | 146 | 119 | 102 | 70 | 50 | 41 | 25 | 21 | 14 | 11 | 10 | 7 |
| M³/h | 8.74 | 7.13 | 6.11 | 4.19 | 2.99 | 2.46 | 1.50 | 1.26 | 0.84 | 0.66 | 0.60 | 0.42 | |
| KW | 6 | 14 | 16 | 17 | 16 | 16 | 15 | 17 | 17 | 15 | 16 | 14 | |
|
280 |
L/min | 205 | 167 | 142 | 99 | 70 | 57 | 36 | 29 | 19 | 16 | 14 | 10 |
| MP/h | 12.2 | 10 | 8.50 | 5.93 | 4.19 | 3.41 | 2.16 | 1.74 | 1.14 | 0.96 | 0.84 | 0.60 | |
| KW | 8 | 20 | 22 | 22 | 22 | 22 | 21 | 22 | 22 | 22 | 22 | 20 | |
|
350 |
L/min | 256 | 209 | 178 | 124 | 87 | 71 | 44 | 36 | 24 | 20 | 18 | 13 |
| MP/h | 15.3 | 12.5 | 10.6 | 7.43 | 5.21 | 4.25 | 2.63 | 2.16 | 1.44 | 1.20 | 1.08 | 0.78 | |
| KW | 10 | 25 | 28 | 30 | 28 | 28 | 26 | 29 | 29 | 28 | 29 | 26 | |
|
400 |
L/min | 293 | 238 | 203 | 141 | 100 | 82 | 51 | 41 | 27 | 23 | ||
| M³/h | 17.5 | 14.2 | 2.1 | 8.44 | 5.99 | 4.91 | 3.05 | 2.46 | 1.62 | 1.38 | |||
| KW | 12 | 29 | 32 | 34 | 32 | 33 | 30 | 33 | 32 | 32 | |||
|
450 |
L/min | 330 | 268 | 229 | 159 | 112 | 92 | 57 | 46 | 31 | |||
| MP/h | 19.7 | 16.0 | 13.7 | 9.52 | 6.71 | 5.51 | 3.41 | 2.75 | 1.80 | ||||
| KW | 13 | 32 | 37 | 38 | 36 | 37 | 34 | 37 | 37 | ||||
※ When you want to select one kind of high pressure reciprocating pump with a certain flow rate and pressure and high pressure pump for special medium,please acquire its latest general drawing and foundation drawing from our factory.
High Pressure Plunger Pump Advantages:
Solid aluminium-cast-iron crankcase ensures stability and vibration dampening.
Crankshaft and oversize taper roller bearings together with plain bearing con rod all run in oil.
Solid ceramic plunger, and double plunger sealing with leakage-return.
All gaskets in seal sleeves to ensure precise centering and easy replacement.
Easy accessible suction and discharge valves with identical wearing parts.
Our products are sold all over the world, you can rest assured.
