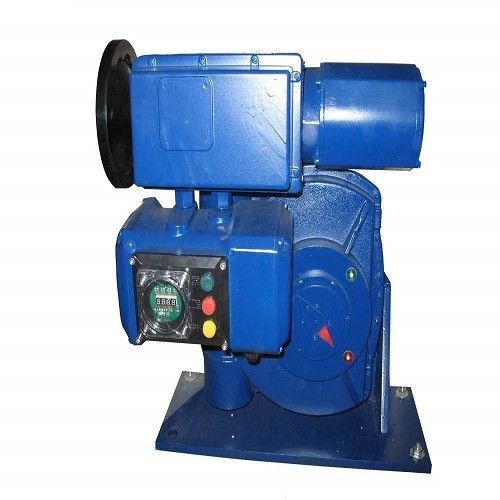

SD Series Quarter Turn Electric Actuators Motorized Electric Actuator Intelligent Foot Mounted Type
Quarter Turn Valve Actuator Overview:
The electric actuator mechanism is the terminal control device of the industrial process measurement and control system. It can convert the signal of the control system into the angular displacement of the output shaft to control the position of the interceptor in the valve or other adjustment structures, so that the controlled medium can be controlled according to the system regulations. status work.
Quarter Turn Electric Actuators Working Conditions:
1)Power Supply Conditions:
AC single voltage: 220V±10%
AC three-phase three-wire: 380V±10%
Frequency: 50/60HZ ±1%
DC220V
DC48V
Please indicate before ordering special power supply
2)Environmental Conditions
Temperature: -10~+55℃ or -20~+70℃
Relative Humidity: no more than 95%, non-corrosive medium in the surrounding air
Working System: reversible intermittent working system, the number of connections per hour is 320 when the connection continuity rate is 50%
Quarter Turn Valve Actuator Specification:
| Model | Rated Torque(Nm) |
Full Running Time(S) |
Flange Mounted | Base Mounted | Equipped Motor Parameters | |
|
Mounting Flange ISO Standard |
Ball Hinge Model | Voltage Code |
Rated Power KW |
|||
| OA-10 | 100 | 30 | F05/07 | SQJ-10 | K;F | 0.065 |
| AS-25 | 250 | 30 | F10 | SQJ-25 | K;F | 0.065 |
| BS-60 | 600 | 30 | F12 | SQJ-100 | K;F | 0.16 |
| A+RS100 | 1000 | 48 | F14 | SQJ-60 | K;F | 0.16 |
| B+RS160 | 1600 | 40 | F14 | SQJ-160 | K;F | 0.4 |
| B+RS250 | 2500 | 40 | F16 | SQJ-250 | K;F | 0.4 |
| B+RS400 | 4000 | 65 | SQJ-400 | K;F | 0.4 | |
| B+RS600 | 6000 | 105 | SQJ-600 | K;F | 0.4 | |
| B+RS800 | 8000 | 105 | F25 | SQJ-800 | K;F | 0.65 |
| B+RS1000 | 10000 | 125 | SQJ-1825 | F | 1.1 | |
| B+RS1200 | 12000 | 125 | SQJ-1825 | F | 1.1 | |
| B+RS1600 | 16000 | 150 | SQJ-1825 | F | 1.5 | |
| B+RS1800 | 18000 | 150 | SQJ-1825 | F | 1.5 | |
