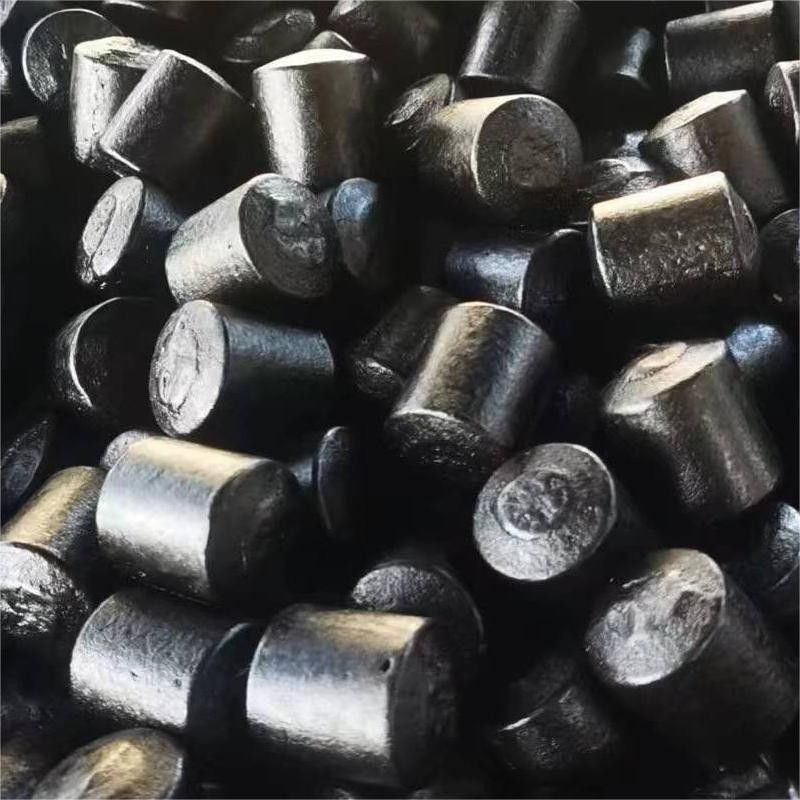

Cr8%-Cr18% Grinding Section Forged Grinding Media Balls For Mill
Product Description
Grinding sections are specialized components used in autogenous (AG) mills, semi-autogenous (SAG) mills, and other types of grinding mills. These sections are typically composed of a combination of grinding media, such as balls and rock fragments, and are strategically placed within the mill to optimize the grinding action. The grinding sections help in reducing the ore to the desired size by continuously impacting and grinding the material.
Technical parameters
① Material: Cr8%, Cr10%, Cr12%, Cr15%, Cr18%.
② Hardness: HRC60-68
③ Impact value: ≥3.5J/cm3
④ Broken rate after use: ≤0.3%
⑤ Grinding ball specifications: φ15mm—φ130mm
⑥ Grinding section specifications: φ18*18mm—φ50*60mm
| Product Name | Special grinding balls and grinding sections for mining | ||||||
| chemical composition(%) | C | Si | Mn | Cr | S | P | Y |
| 1.8-3.3 | 0.3-1.2 | 0.2-1.0 | 8.0-20.0 | ≤0.08 | ≤0.08 | ≤0.10 | |
| Mo | Nb | Ti | V | Cu | Al | W | |
| microscale | microscale | microscale | microscale | microscale | microscale | microscale | |
| mechanical properties | Microstructure | Impact value AK(J/cm3) | hardness(HRC) | Falling ball impact fatigue life (number of times) | |||
| M+C+A | ≥3.5 | 60-68 | ≥28000 | ||||
| Remark:M—martensite C—carbide A—retained austenite | |||||||
Product Application
Mine Industry, Cement Industry, Chemical Industry, Quarries, Power Station.
Our products are sold all over the world, you can rest assured.
