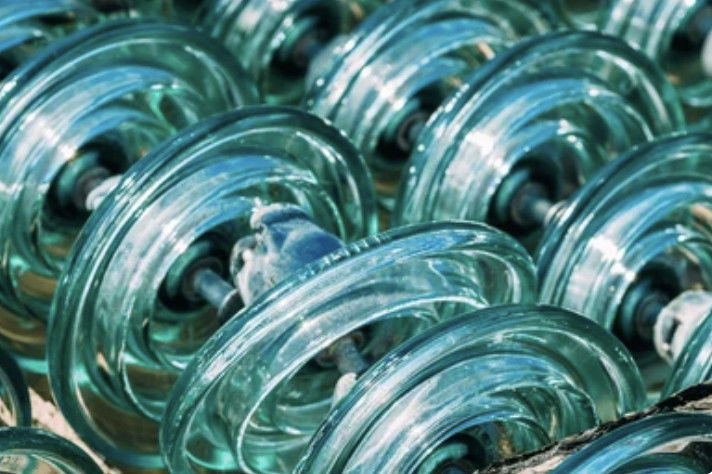

10KV-1000KV Toughened Glass Disc Insulators For High Voltage Transmission Line
Disc Suspension Insulator Working Principal
A suspension insulator for an overhead powerline comprises two major components. These are the cross-arms and the disc insulators, which are coupled up by metallic links. These suspension insulator parts work as a system to protect the transmission line.
A complete set of suspension insulator is manufactured by stringing the disc insulators using the metallic string. The connection of the insulators is in series.
For the pole lines where the conductor is suspended from the insulator’s bottom section, cross-arms are used for securing the insulator in place. The cross-arm also guarantees the stability of the insulator.
Each disc for a suspension insulator is designed to have a low voltage. For example, a single disc of the insulator can be calibrated to have 11 kV. The discs are connected in series, and the desired voltage will determine the number of discs to be used on the insulator.
The series connection of the insulation of the discs provides maximum independence of the insulator. This is to say that the performance of one disc does not depend on the others. In the event that one disc fails, the rest will remain unaffected.
Power line Glass Insulators Specification
|
Product name and specification model |
Voltage level(KV) | Product name and specification model | Voltage level(KV) | ||
| Stain resistant type | Disc insulator U70BLP | 10KV-330KV | Standard type | Disc insulator U40B | 10KV-66KV |
| Disc insulator U70BLP1 | 10KV-330KV | Disc insulator U70BS | 10KV-330KV | ||
| Disc insulator U70BLP2 | 10KV-330KV | Disc insulator U70BL | 10KV-330KV | ||
| Disc insulator U80BLP | 10KV-330KV | Disc insulator U100BS | 10KV-330KV | ||
| Disc insulator U80BLP1 | 10KV-330KV | Disc insulator U100BL | 10KV-330KV | ||
| Disc insulator U100BLP | 10KV-330KV | Disc insulator U120B | 10KV-330KV | ||
| Disc insulator U100BLP1 | 10KV-330KV | Disc insulator U160BS | 10KV-500KV | ||
| Disc insulator U100BLP2 | 10KV-330KV | Disc insulator U160BM | 10KV-500KV | ||
| Disc insulator U120BP | 10KV-330KV | Disc insulator U160BL | 10KV-500KV | ||
| Disc insulator U120BP1 | 10KV-330KV | Disc insulator U210B | 10KV-500KV | ||
| Disc insulator U120BP2 | 10KV-330KV | Disc insulator U240B | 10KV-500KV | ||
| Disc insulator U160BMP | 10KV-500KV | Disc insulator U300B | 10KV-500KV | ||
| Disc insulator U160BLP | 10KV-500KV | Disc insulator U420B | 10KV-500KV | ||
| Disc insulator U160BMP1 | 10KV-500KV | Disc insulator U530B | 10KV-1000KV | ||
| Disc insulator U160BLP1 | 10KV-500KV | Disc insulator U550B | 10KV-1000KV | ||
| Disc insulator U210BP | 10KV-500KV | dual umbrella type | Disc insulator U70BLD | 10KV-330KV | |
| Disc insulator U210BP1 | 10KV-500KV | Disc insulator U70BSD | 10KV-330KV | ||
| Disc insulator U240BP | 10KV-500KV | Disc insulator U100BLD | 10KV-330KV | ||
| Disc insulator U240BP1 | 10KV-500KV | Disc insulator U100BSD | 10KV-330KV | ||
| Disc insulator U240BP2 | 10KV-500KV | Disc insulator U120BLD | 10KV-330KV | ||
| Disc insulator U300BP | 10KV-500KV | Disc insulator U160BLD | 10KV-500KV | ||
| Disc insulator U300BP1 | 10KV-500KV | Disc insulator U160BSD | 10KV-500KV | ||
| Aerodynamic type | Disc insulator U70BSM | 10KV-330KV | Disc insulator U160BMD | 10KV-500KV | |
| Disc insulator U70BLM | 10KV-330KV | Disc insulator U210BD | 10KV-500KV | ||
| Disc insulator U100BSM | 10KV-330KV | Disc insulator U240BD | 10KV-500KV | ||
| Disc insulator U100BLM | 10KV-330KV | Ground type | Disc insulator U70C | 10KV-330KV | |
| Disc insulator U120BLM | 10KV-330KV | Disc insulator U70CN | 10KV-330KV | ||
| Disc insulator U160BSM | 10KV-500KV | Disc insulator U100C | 10KV-330KV | ||
| Disc insulator U160BMM | 10KV-500KV | Disc insulator U100CN | 10KV-330KV | ||
| Disc insulator U160BLM | 10KV-500KV | ||||
| Disc insulator U210BM | 10KV-500KV | ||||
| Disc insulator U240BM | 10KV-500KV | ||||
