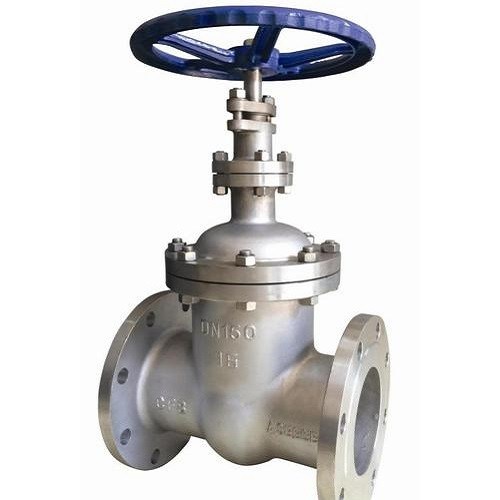

SS Stainless Steel Flanged Gate Valve Industrial Open And Close Valve
Product Description:
Stainless Steel Gate Valve is a common industrial valve used to control the flow of liquid or gas. It is corrosion-resistant and high-strength, and is suitable for various environments and media.
Metal Seated Gate Valve is widely used in petroleum, chemical, electric power, metallurgy, pharmaceutical and other industries, and are usually used for fluid control and regulation in pipeline systems.
Product Parameter:
| Type | DN(mm) | Dimension(mm) | |||||||
| L | D | D1 | D2 | b-f | Z-φd | H | D0 | ||
|
Z41H(/W/Y)-10 Z541H(/W/Y)-10 Z941H(/W/Y)-10
|
15 | 130 | 95 | 65 | 45 | 12-2 | 4-φ14 | 185 | 120 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-φ14 | 200 | 120 | |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-φ14 | 225 | 140 | |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-φ18 | 275 | 160 | |
| 40 | 165 | 145 | 110 | 85 | 16-3 | 4-φ18 | 290 | 160 | |
| 50 | 180 | 160 | 125 | 100 | 18-3 | 4-φ18 | 345 | 200 | |
| 65 | 195 | 180 | 145 | 120 | 18-3 | 4-φ18 | 360 | 220 | |
| 80 | 210 | 195 | 160 | 135 | 18-3 | 4-φ18 | 380 | 240 | |
| 100 | 230 | 215 | 180 | 155 | 20-3 | 8-φ18 | 430 | 280 | |
| 125 | 255 | 245 | 210 | 185 | 22-3 | 8-φ18 | 520 | 300 | |
| 150 | 280 | 280 | 240 | 210 | 22-3 | 8-φ23 | 600 | 320 | |
| 200 | 330 | 335 | 295 | 265 | 22-3 | 8-φ23 | 765 | 400 | |
| 250 | 380 | 390 | 350 | 320 | 24-3 | 12-φ23 | 930 | 450 | |
| 300 | 420 | 440 | 400 | 368 | 26-3 | 12-φ23 | 1080 | 500 | |
| 350 | 450 | 500 | 460 | 428 | 26-4 | 16-φ23 | 1200 | 500 | |
| 400 | 480 | 565 | 515 | 482 | 26-4 | 16-φ35 | 1400 | 550 | |
| 450 | 510 | 615 | 565 | 532 | 26-4 | 20-φ25 | 1500 | 600 | |
| 500 | 540 | 670 | 620 | 585 | 28-4 | 20-φ25 | 1630 | 650 | |
| 600 | 600 | 780 | 725 | 685 | 28-5 | 20-φ30 | 1830 | 700 | |
| 700 | 660 | 895 | 840 | 800 | 30-5 | 24-φ30 | 1930 | 750 | |
Product Feature:
1. Simple structure: stainless steel gate valve consists of valve body, valve cover, valve stem and valve plate. The valve stem moves up and down between the valve plate and the valve seat to control the flow of fluid.
2. Corrosion resistance: Stainless steel materials have good corrosion resistance and can adapt to various corrosive media such as acids, alkalis, and salts.
3. Good sealing performance: Stainless steel gate valve adopts metal-to-metal sealing to ensure zero leakage of fluid.
4. Fast opening and closing: The stainless steel gate valve controls the on and off of the fluid through the lifting and lowering of the valve stem, and the opening and closing operation is relatively fast.
5. Strong pressure-bearing capacity: Stainless steel gate valves have high pressure-bearing capacity and are suitable for high-pressure or high-temperature working conditions.
Our products are sold all over the world, you can rest assured.
