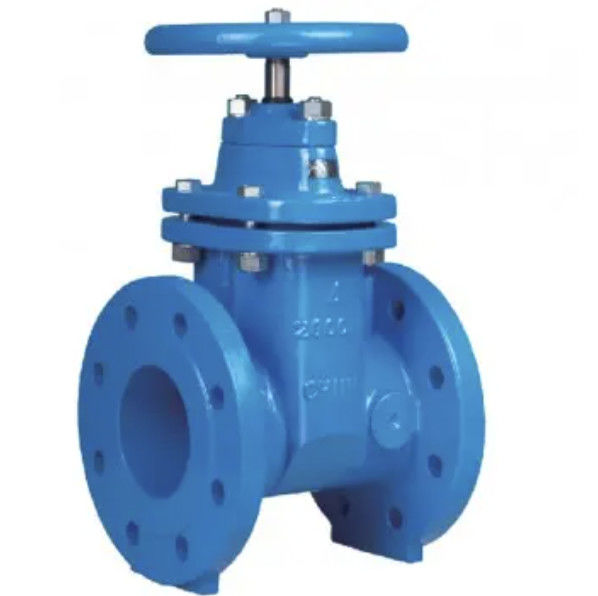

DN40-DN600 Resilient Seated Gate Valve RSGV Valve For Water Treatment
Product Feature:
Easy installation and maintenance.
The ductile iron frame work is thermal-clad integrally with high performance rubber. Ensuring tight seal and rust prevention.
Flat-bottom seat. The sealing surface of the body is flat without hollow, avoiding any dirt deposit.
Product Material:
| Item | Parts Name | Material |
| 1 | Valve Body | Ductile iron, spray plastic |
| 2 | Valve Plate | Ductile iron, integral coating |
| 3 | Stem | 2Gr13,45 #steel chrome plated |
| 4 | Screw Bolt | Steel galvanized |
| 5 | O-ring | Nitrile rubber |
| 6 | Thrust Bearing | Bronze |
| 7 | O-ring | Nitrile rubber |
| 8 | Valve Cap | Ductile iron, spray plastic |
| 9 | Screw Bolt | Steel galvanized |
| 10 | Handwheel | Ductile iron, spray plastic |
Product Specification:
1. Working temperature: natural rubber ≤80℃, nitrile rubber ≤80℃, EPDM rubber ≤120℃, silicone rubber ≤160℃, pure natural food rubber ≤80℃.
2. Working pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa.
3. Adaptable media: cold water, hot water, oil, gas.
4. Non-standard sizes and smelting standard sizes matching cast iron pipes can be customized according to user requirements.
| Nominal diameter(mm) | Length(mm) | Width(mm) | Height(mm) | |||||
| Underground | Concealed pole | Open pole | Signal | Lock | Opening indication | |||
| DN40 | 178 | 150 | 380 | 380 | 420 | 480 | 380 | 480 |
| DN50 | 178 | 165 | 380 | 380 | 420 | 480 | 380 | 480 |
| DN65 | 190 | 185 | 400 | 410 | 450 | 500 | 400 | 500 |
| DN80 | 203 | 200 | 410 | 460 | 460 | 510 | 410 | 510 |
| DN100 | 229 | 220 | 460 | 540 | 530 | 560 | 460 | 560 |
| DN125 | 254 | 250 | 550 | 610 | 650 | 650 | 550 | 650 |
| DN150 | 267 | 285 | 620 | 670 | 730 | 720 | 620 | 720 |
| DN200 | 292 | 340 | 740 | 480 | 890 | 840 | 740 | 840 |
| DN250 | 330 | 405 | 830 | 890 | 1000 | 980 | 830 | 980 |
| DN300 | 356 | 460 | 940 | 990 | 1140 | 1090 | 940 | 1090 |
| DN350 | 381 | 520 | 980 | 1110 | 1180 | 1180 | 980 | 1180 |
| DN400 | 406 | 580 | 1010 | 1240 | 1260 | 1210 | 1010 | 1210 |
| DN450 | 432 | 640 | 1200 | 1350 | 1450 | 1400 | 1200 | 1400 |
| DN500 | 457 | 715 | 1250 | 1450 | 1500 | 1450 | 1250 | 1450 |
| DN600 | 508 | 840 | 1350 | 1700 | 1650 | 1550 | 1350 | 1550 |
Product Principle:
The resilient seat gate valve is divided into two types: bright-stem resilient seat gate valve and dark-stem resilient seat gate valve. Usually there is a trapezoidal thread on the lifting rod, through the nut in the middle of the gate and the guide groove on the valve body, the rotary motion is changed into linear motion, that is, the operating torque is turned into operating thrust. When the valve is opened, when the lift height of the gate is equal to 1:1 times the valve diameter, the fluid passage is completely unblocked, but this position cannot be monitored during operation.
Product Application:
The resilient seat gate valve is suitable for non-corrosive gas and liquid medium at room temperature (≤80℃). Such as clean water, air, oil, water treatment sewage, food processing, fire protection system, natural gas, liquefied gas system. And has a very good sealing effect, almost zero leakage can be achieved.
Product Image:
