GPR Type 0.4～3.0m² Aluminum Finned Tube Cooler Industrial Shell And Tube Heat Exchanger
Product Overview
The Tube Cooler, also called the Shell And Tube Cooler, is divided into tube side and shell side. The path of the liquid flowing in the tube is the tube side, and the path of the liquid flowing outside the tube is the shell side. The wall surface of the tube bundle is the transmission path. On the hot surface, when the temperature difference between the tube bundle and the shell exceeds 50°C, appropriate temperature compensation measures should be taken to eliminate or reduce thermal stress. Generally water-cooled type dominates.
The heat transfer tubes of the tube cooler are rolled out of copper tubes to form heat dissipation fins. The heat exchange area is large, the product is small in size and light in weight.
This series can be designed and manufactured according to customer requirements from small to medium-sized, covering a wide range.
Product Parameters
| Model | A | B | C | D | E | F | G | dl | d2 | L1 | L2 | Hl | H2 | H3 | M | I |
| GPR-0.4 | 370 | 38 | 240 | φ76 | 70 | 102 | 70 | G1” | G1/2” | 145 | 100 | 60 | 68 | 50 | 3-G1/4” | 4-φ11 |
| GPR-0.6 | 540 | 38 | 405 | φ76 | 72.5 | 102 | 70 | G1” | G1/2” | 310 | 100 | 60 | 68 | 50 | 3-G1/4” | 4-φ11 |
| GPR-0.8 | 660 | 38 | 532 | φ76 | 69 | 102 | 70 | G1” | G1/2” | 435 | 100 | 60 | 68 | 50 | 3-G1/4” | 4-φ11 |
| GPR-1.0 | 810 | 38 | 665 | φ76 | 77.5 | 102 | 70 | G1” | G1/2” | 570 | 100 | 60 | 68 | 50 | 3-G1/4” | 4-φ11 |
| GPR-1.2 | 940 | 38 | 805 | φ76 | 72.5 | 102 | 70 | G1” | G1/2” | 715 | 100 | 60 | 68 | 50 | 3-G1/4” | 4-φ11 |
| GPR-1.3 | 560 | 60.5 | 375 | φ121 | 100 | 161 | 130 | G1” | G1" | 225 | 160 | 85 | 93 | 73 | 3-G1/4” | 4-φ1l |
| GPR-1.7 | 690 | 60.5 | 500 | φ121 | 102.5 | 161 | 130 | G1” | G1" | 350 | 160 | 85 | 93 | 73 | 3-G1/4” | 4-φ11 |
| GPR-2.1 | 820 | 60.5 | 635 | φ121 | 100 | 161 | 130 | G1” | G1" | 485 | 160 | 85 | 93 | 73 | 3-G1/4” | 4-φ11 |
| GPR-2.6 | 960 | 60.5 | 775 | φ121 | 100 | 161 | 130 | G1” | G1" | 630 | 160 | 85 | 93 | 73 | 3-G1/4” | 4-φ11 |
| GPR-3.0 | 1090 | 60.5 | 905 | φ121 | 100 | 161 | 130 | G1” | G1" | 760 | 160 | 85 | 93 | 73 | 3-G1/4” | 4-φ11 |

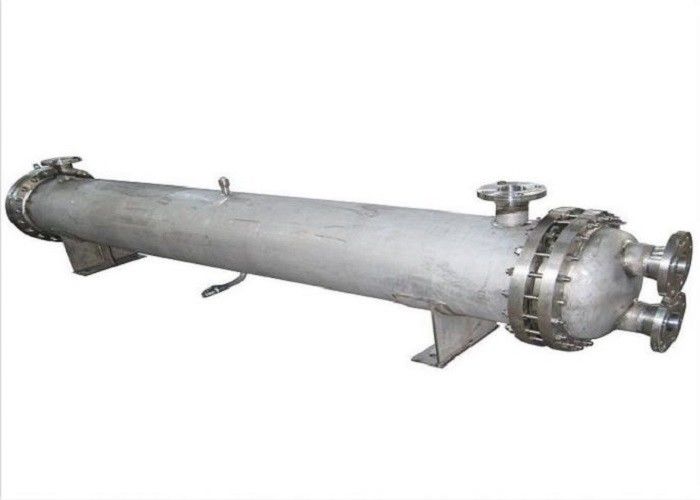

Product Image
Product Application
Tube Oil Coolers are suitable for cooling low-viscosity and relatively clean oil,so it can be used in plastic machinery, hydraulic equipment, air compressors, thin oil lubrication systems, hydraulic couplings, power equipment and other industries.
Shell And Tube Heat Exchangers are widely used in thin oil lubrication systems and hydraulic systems in metallurgy, mining, cement, electric power, light industry, food, chemical industry, papermaking and other industrial sectors to cool lubricating oil and hydraulic oil in the system.
