GPR Type 3.5~60m² Shell Tube Heat Exchanger High Efficiency Aluminium Finned Tube Oil Cooler
Product Overview
Shell And Tube Heat Exchanger (STHE) is a type of heat exchanging device constructed using a large cylindrical enclosure, or shell, that has bundles of perfectly spaced tubing compacted in its interior. Shell and tube heat exchangers are the most common form of heat exchange design.
Shell Tube Heat Exchangers are used for a variety of applications and meet the needs of an assortment of industries. Since they are available in different configurations, they can be adapted to the requirements of any manufacturing or production operation.
Product Parameters
| Model | A | B | C | D | E | F | G | d1 | d2 | L1 | L2 | Hl | H2 | H3 | M | I |
| GPR-3.5 | 1035 | 80 | 750 | φ165 | 140 | 215 | 105 | DN25 | G1” | 650 | 205 | 154 | 153 | 95 | 5-G1/4” | 4-φ12 |
| GPR-4 | 840 | 110 | 550 | φ180 | 142 | 240 | 150 | DN32 | G11/2" | 400 | 220 | 180 | 160 | 102 | 5-G1/4” | 4-φ14 |
| GPR-5 | 1020 | 110 | 730 | φ180 | 142 | 240 | 150 | DN32 | G11/2" | 580 | 220 | 180 | 160 | 102 | 5-G1/4” | 4-φ14 |
| GPR-6 | 1180 | 110 | 860 | φ180 | 157 | 240 | 150 | DN40 | G11/2" | 710 | 220 | 180 | 160 | 102 | 5-G1/4” | 4-φ14 |
| GPR-7 | 1340 | 110 | 1050 | φ180 | 142 | 240 | 150 | DN40 | G11/2" | 900 | 220 | 180 | 160 | 102 | 5-G1/4” | 4-φ14 |
| GPR-8 | 1490 | 110 | 1200 | φ180 | 142 | 240 | 150 | DN40 | G11/2" | 1050 | 220 | 180 | 160 | 102 | 5-G1/4” | 4-φ14 |
| GPR-9 | 1640 | 110 | 1350 | φ180 | 142 | 240 | 150 | DN40 | G11/2" | 1200 | 220 | 180 | 160 | 102 | 5-G1/4” | 4-φ14 |
| GPR-10 | 1850 | 110 | 1560 | φ180 | 142 | 240 | 150 | DN40 | G11/2" | 1350 | 220 | 180 | 160 | 102 | 5-G1/4” | 4-φ14 |
| GPR-11 | 1170 | 182 | 800 | φ299 | 186 | 372 | 260 | DN65 | G2" | 650 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-12 | 1240 | 182 | 870 | φ299 | 186 | 372 | 260 | DN65 | G2" | 720 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-13 | 1315 | 182 | 945 | φ299 | 186 | 372 | 280 | DN65 | G2" | 795 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-15 | 1370 | 182 | 1000 | φ299 | 186 | 372 | 260 | DN65 | G2" | 850 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-16 | 1470 | 182 | 060 | φ299 | 206 | 372 | 260 | DN65 | G2" | 910 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-17 | 1535 | 182 | 1125 | φ299 | 206 | 372 | 260 | DN65 | G2" | 925 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-18 | 1600 | 182 | 1190 | φ299 | 206 | 372 | 260 | DN65 | G2" | 1040 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-19 | 1685 | 182 | 1275 | φ299 | 206 | 372 | 260 | DN65 | G2" | 1125 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-20 | 1750 | 182 | 1340 | φ299 | 206 | 372 | 260 | DN65 | G2" | 1190 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-21 | 1830 | 182 | 1420 | φ299 | 206 | 372 | 260 | DN65 | G2" | 1270 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-22 | 1905 | 182 | 1495 | φ299 | 206 | 372 | 260 | DN65 | G2" | 1345 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-23 | 1990 | 182 | 1580 | φ299 | 206 | 372 | 260 | DN65 | G2" | 1430 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-24 | 2055 | 182 | 1645 | φ299 | 206 | 372 | 260 | DN65 | G2" | 1495 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-25 | 2120 | 182 | 1710 | φ299 | 206 | 372 | 260 | DN65 | G2" | 1560 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-27 | 2285 | 182 | 1845 | φ299 | 220 | 372 | 260 | DN65 | G2" | 1695 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-28 | 2350 | 182 | 1910 | φ299 | 220 | 372 | 260 | DN65 | G2" | 1760 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-30 | 2500 | 182 | 2060 | φ299 | 220 | 372 | 260 | DN80 | G21/2" | 1910 | 360 | 238 | 220 | 168 | 5-G1/2” | 4-φ18 |
| GPR-34 | 1740 | 230 | 1260 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1110 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-35 | 1780 | 230 | 1300 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1150 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-37 | 1855 | 230 | 1375 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 225 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-40 | 1970 | 230 | 1490 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1340 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-41 | 2010 | 230 | 1530 | φ351 | 240 | 446 | 320 | DN80 | G21/2" | 1380 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-44 | 2125 | 230 | 1645 | φ3511 | 240 | 445 | 320 | DN80 | G21/2" | 1495 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-45 | 2165 | 230 | 1685 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1535 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-48 | 2280 | 230 | 1800 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1650 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-50 | 2360 | 230 | 1880 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1730 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-51 | 2390 | 230 | 1910 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1760 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-54 | 2500 | 230 | 2020 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1870 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-55 | 2540 | 230 | 2060 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 1910 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |
| GPR-60 | 2730 | 230 | 2250 | φ351 | 240 | 445 | 320 | DN80 | G21/2" | 2100 | 420 | 278 | 246 | 194 | 5-G1/2” | 4-φ18 |

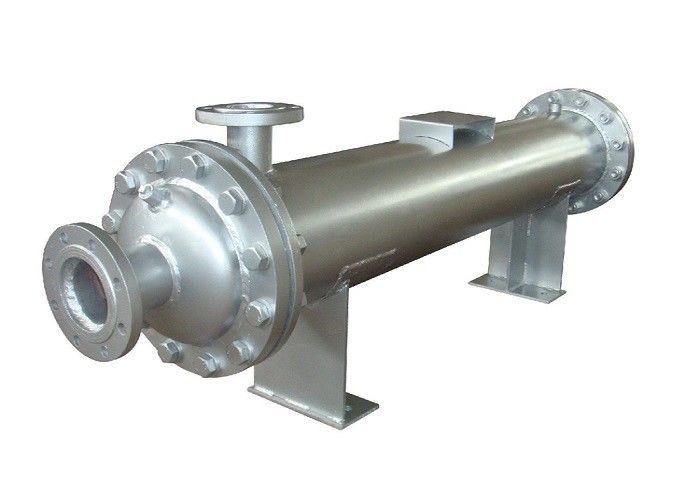

Product Image
Product Feature
1. Cost
An important benefit of shell and tube heat exchangers is their cost. They are much less expensive than plate type coolers.
2. Heat Capacity
Heat exchangers have to be able to handle a wide range of temperatures, varying by application. Their ability to deal with extreme temperatures helps maintain production and keep operations moving. Shell and tube heat exchangers have a high temperature working capacity and can be adapted to fit any conditions.
3. Pressure
Shell and Tube Exchangers are tested and designed to withstand the extremes caused by pressure variances and adhere to the Codes of the ASME and PED.
4. Pressure Loss
Shell and tube heat exchangers are designed to deal with pressure loss and keep it to a minimum within the design criteria.
5. Adjustments
The design of shell and tube heat exchangers can be adjusted for adaptation to any production process. Changes in pipe diameter, number of pipes, length of pipes, pipe pitch, and pipe arrangement can be altered to specifically fit the needs of an application.
6. Thermal Expansion
The multi-tube design of shell and tube heat exchangers allows for thermal expansion between the tubes and shell. This configuration gives the heat exchanger the ability to handle flammable and toxic fluids.
Our products are sold all over the world, you can rest assured.
