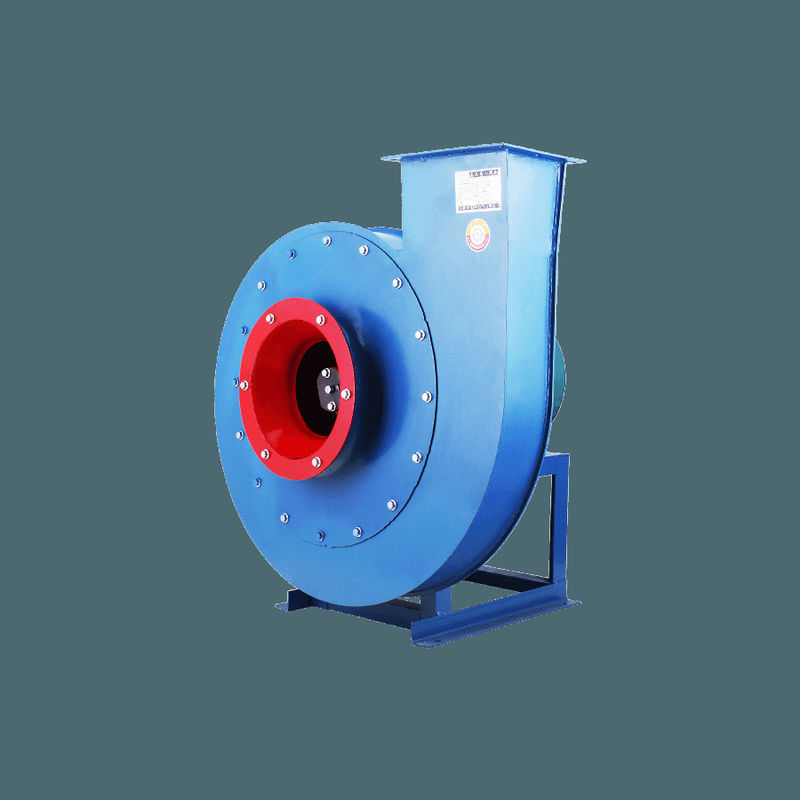

G4-73 Y4-73 Steel Centrifugal Blower Induced Draft Fans For Boiler Ventilation

G4-73 Y4-73 Steel Centrifugal Blower Induced Draft Fans For Boiler Ventilation

  • Highlight

    Y4-73 Steel Centrifugal Blower

    ,

    1450rpm Centrifugal Blower

    ,

    730rpm Induced Draft Fans

  • Product Name
    Centrifugal Ventilation Fans
  • Use
    Ventilation
  • Application Industries
    Steel Mill, Textile, Chemical, Smelting, Petroleum, Kiln, And Others
  • Specification
    According To Customer's Requirements
  • Material
    Stainless Steel / Carbon Steel
  • Speed
    730rpm-1450rpm
  • Place of Origin
    China
  • Model Number
    G4-73, Y4-73

G4-73 Y4-73 Steel Centrifugal Blower Induced Draft Fans For Boiler Ventilation

G4-73 Y4-73 Steel Centrifugal Blower Induced Draft Fans For Boiler Ventilation



1. Overview


G4-73 Y4-73 Steel Centrifugal Blower and Induced Draft Fans are suitable for ventilation and induced draft fan systems of steam boilers with a capacity below 670t/h in thermal power plants. When there are no other special requirements, G4-73 can also be used for mine ventilation and general ventilation.
The medium transported by the ventilator is air, and the maximum temperature shall not exceed 80°C; the medium transported by the induced draft fan is flue gas, and the maximum temperature shall not exceed 250°C.
In front of the induced draft fan, a dust removal device must be installed to reduce the dust content of the flue gas entering the fan as much as possible. According to general power plant usage conditions, the dust removal efficiency shall not be less than 85%.



2. Feature


(1) The Centrifugal Ventilator and Induced Draft Fans are made of single suction, each with a total of 12 machine numbers N28~28.
(2) The fan has two rotation directions: left and right. Viewed from one end of the motor, the impeller rotating clockwise is called a right-hand fan, represented by "right"; the impeller rotating counterclockwise is called a left-hand fan, represented by "left".
(3) The outlet position of the fan is expressed by the angle of the air outlet of the casing.
(4) The transmission mode of the fans is D type, and they are all driven by elastic couplings.



3. Specification


G4-73 Centrifugal Blower Fan Performance Table
Engine Number Speed
R/min
Flow
M³ / H
Total Pressure Efficiency (%) Power
/KW

Required Power

/KW

Electric Motor
Model Power kw
8D 1450 16156 2104 79.4 11.80 13.85 Y180M-4 18.5
18244 2095 83.2 12.67 14.86
20442 2072 85.7 13.63 15.99
22530 2018 87 14.42 16.92
24618 1924 86.8 15.06 17.67
26706 1794 85.6 15.45 18.13
28904 1611 82.8 15.53 18.22
30993 1400 79.4 15.11 17.73
10D 1450 31554 3301 79.4 36.02 42.27 Y250M-4 55
35633 3287 83.2 38.66 45.36
39926 3251 85.7 41.58 48.79
44004 3166 87 44.0 51.64
48083 3018 86.8 45.95 53.92
52161 2813 85.6 47.15 55.32
56455 2525 82.8 47.39 55.61
60533 2194 79.4 46.12 54.11
12D 1450 54526 4777 79.4 89.63 105.17 Y315M1-4 132
61574 4756 83.2 96.19 112.87
68992 4705 85.7 103.46 1231.40
76040 4582 87 109.49 128.47
83088 4366 86.8 114.33 134.15 Y315M2-4 160
90135 4069 85.6 117.31 137.65
97554 3650 82.8 117.92 138.36
104600 3171 79.4 114.75 134.65
14D 1450 86586 6541 79.4 193.71 227.30 Y355-4 280
97777 6513 83.2 207.90 243.96
109550 6442 85.7 223.63 262.41
120740 6272 87 236.66 277.7
131940 5975 86.8 247.13 289.99 Y355-4 315
143130 5566 85.6 253.56 297.53
154910 4990 82.8 254.89 299.10
166100 4333 79.4 248.02 291.04
16D 960 85571 3709 79.4 109.60 128.60 Y355-6 185
96631 3693 83.2 117.63 138.03
108270 3653 85.7 126.53 148.47
119330 3558 87 133.91 159.12
130390 3391 86.8 139.83 164.08
141450 3161 85.6 143.46 168.33
153090 2836 82.8 144.21 169.22
164150 2465 79.4 140.33 164.66
18D 730 92648 2705 79.4 86.85 101.91 Y315M-8 132
104620 2693 83.2 93.21 109.37
117220 2664 85.7 100.26 117.64
129200 2595 87 106.1 124.49
141170 2474 86.8 110.79 130
153150 2306 85.6 113.67 133.37
165750 2070 82.8 114.27 134.09
177730 1880 79.4 111.19 130.46
20D 730 127080 3347 79.4 147.07 172.58 Y355-8 220
143510 3333 83.2 157.84 185.21
160800 3297 85.7 169.79 199.23
177230 3211 87 179.68 210.85
193660 3060 86.8 187.63 220.16 Y355-8 250
210080 2853 85.6 192.51 225.89
227370 2560 82.8 193.52 227.07
243800 2225 79.4 188.30 220.96



Y4-73 Centrifugal Induced Draft Fan Performance Table
Engine Number Speed
R/min
Flow
M³/h
Total Pressure
Pa

Efficiency

(%)

Power
/KW

Required Power

/KW

Electric Motor
Model Power kw
8D 1450 16156 1303 79.4 7.33 9.73 Y160M-4 11
18244 1298 83.2 7.87 10.44
20442 1284 85.7 8.46 11.23 Y160L-4 15
22530 1250 87 8.96 11.89
24618 1192 86.8 9.35 12.41
26706 1112 85.6 9.60 12.73
28904 998 82.8 9.65 12.80
30993 868 79.4 9.39 12.45
9D 1450 23003 1651 79.4 13.21 17.52 Y180L-4 22
25976 1644 83.2 14.18 18.81
29106 1627 85.7 15.25 20.23
32079 1584 87 16.14 21.41
35052 1531 86.8 16.85 22.36 Y200L-4 30
39926 1509 85.6 17.29 22.94
41155 1365 82.8 17.38 23.06
44128 1200 79.4 16.91 22.44
12D 1450 54526 2949 79.4 55.67 73.85 Y280M-4 90
61574 2936 83.2 59.75 79.26
68992 2905 85.7 64.27 85.26
76040 2829 87 68.01 90.23 Y315S-4 110
83088 2697 86.8 71.02 94.21
90135 2514 85.6 72.87 96.67
97554 2256 82.8 73.25 97.17
104600 1961 79.4 71.28 94.55
14D 1450 86586 4029 79.4 120.33 159.61 Y315M-4 185
97777 4011 83.2 129.44 171.3
109550 3968 85.7 138.91 184.26
120740 3864 87 147.00 195.00 Y315M-4 220
131940 3683 86.8 153.51 203.63
143130 3433 85.6 157.5 208.92
154910 3080 82.8 158.33 210.02
166100 2676 79.4 154.06 204.36
18D 960 121830 2908 79.4 122.69 162.74 Y355-6 200
137580 2895 83.2 131.67 174.65
154160 2864 85.7 141.64 187.88
169910 2790 87 149.89 198.82
185650 2659 86.8 156.52 207.62 Y355-6 220
201400 2479 85.6 160.59 213.01
217980 2225 82.8 161.43 214.13
233730 1934 79.4 157.08 208.36
20D 960 167130 3598 79.4 207.77 275.61 JSQ1410-6 380
188730 3583 83.2 222.99 295.8
211470 3545 85.7 239.87 318.18
233070 3452 87 253.84 336.71
254670 3290 86.8 265.07 351.61
276270 3067 85.6 271.96 360.76
299010 2752 82.8 273.39 362.64
320610 2392 79.4 266.02 352.87



4. Structure


The Centrifugal Ventilation Fans are mainly composed of impeller, casing, air inlet, regulating door and transmission part.


(1) The impeller consists of 12 backward-inclined airfoil beveled blades welded between the conical arc-shaped front disk and the flat-shaped rear disk. The use of airfoil-shaped blades ensures high efficiency, low noise, and high strength of the fan. The impeller has been calibrated by static and dynamic balance, so it runs smoothly. The impeller structures of the ventilation and induced draft fans of the same machine number are the same.


(2) The casing is a volute body welded with ordinary steel plates. The casing of the single suction fan is made into three different forms (Ng8~12 casing is made of an integral structure and cannot be disassembled, N214~16 casing is made of two-opening type, and N218~28 casing is made of three-opening type). The induced draft fan and scroll plate are appropriately thickened to prevent wear.



(3) The convergent and streamlined air inlet is made into an integral structure and fixed on the inlet side of the fan with bolts.



(4) The device used to adjust the flow rate of the fan is installed axially in front of the air inlet. The adjustment range is from 0° (fully open) to 90° (fully closed). Adjust the door's lever position, looking at the right side from the direction of the air inlet. For a right-hand cyclone fan, pushing the lever from bottom to top will change the direction from fully closed to fully open; for a left-hand fan, pulling the lever from top to bottom will change from fully closed to fully open. to full open direction.



(5) The main shaft of the transmission part is made of high-quality steel, and this fan uses rolling bearings. There are two types of bearing boxes: N28~16 use an integral cylindrical bearing box; N218~28 use two independent pillow-type bearing boxes. The bearing box is equipped with a thermometer and oil level indicator (only for induced draft fans). The lubricating oil is L-AN46, a total loss system oil. The amount of oil added is in accordance with the requirements of the oil level mark. If grease is used in the N28~16 integral cylindrical bearing box, an oil baffle should be added to the ball side of the bearing box, and its fixing groove has been prefabricated. The induced draft fan is equipped with a water cooling device, so a water pipe must be installed. The water consumption varies with the temperature, and is generally considered to be 05~1m²/h.
