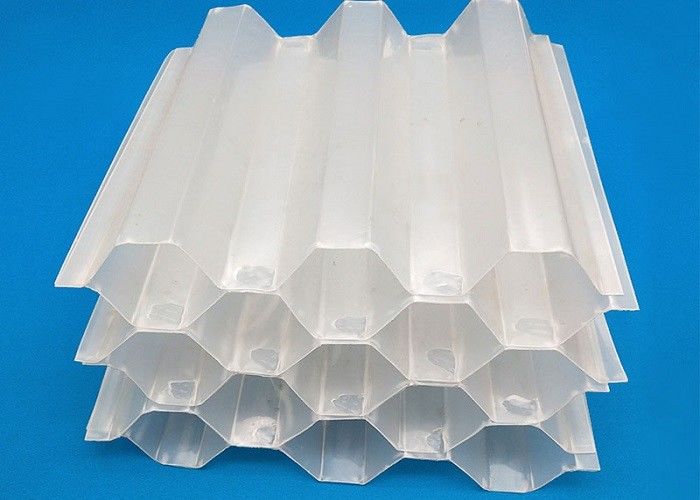

White Hexagonal Honeycomb PVC Fills Plastic Filter Media For Water Treatment

White Hexagonal Honeycomb PVC Fills Plastic Filter Media For Water Treatment

Products - Water Treatment Equipment - Plastic Filter Media Water Treatment
  • Highlight

    White Plastic Filter Media

    ,

    Hexagonal Plastic Filter Media

    ,

    honeycomb pvc fills 80mm

  • Product. Name
    Plastic Filter Media For Water Treatment
  • Type
    Inclined And Straight Pipes
  • Material
    PVC PP FRP
  • Size
    25mm-80mm
  • Color
    White/Blue/Black/Green
  • Place of Origin
    China
  • Brand Name
    WS

White Hexagonal Honeycomb PVC Fills Plastic Filter Media For Water Treatment

  • White Hexagonal Honeycomb PVC Fills Plastic Filter Media For Water Treatment
  • White Hexagonal Honeycomb PVC Fills Plastic Filter Media For Water Treatment
Get Price Contact Now

White Hexagonal Honeycomb PVC Fills Plastic Filter Media For Water Treatment



Honeycomb Fills For Cooling Tower Description:



As we all know, the cooling tower fills and drift eliminator are important components in the cooling towers. They are composed of several individual fill packs in PVC or PP materials. Several individual packs are hot pressed in constant temperature by the infrared ray to form the fill blocks. It has accurate specs, large specific surface area, safe, anti-corrosion, anti-aging and easy cleaning performance. Honeycomb fills refer to cooling tower fills and drift eliminator with hexagonal honeycomb profile for water treatment applications.



Honeycomb fills are precipitation packings developed based on shallow settlement. It has large wetted perimeter, small hydraulic radius. When operating, the honeycomb fills can supply good laminar conditions and ensure the high efficiency of particle precipitation without being disturbing by the turbulent flow. Additional, it can speed up the filtration of water and particle and shorten precipitation distance.



PVC Honeycomb Fills Feature:



Firm structure. Large wetted perimeter. Small hydraulic radius Small volume. Large specific surface area. Anti-corrosion. Anti-aging. Temperature resistance. Easy cleaning. High treating efficiency. Low maintenance. Safe and non-toxic. Wide range of applications.



PP Honeycomb Fills Specification:



Material

Size

(mm)

 Slice Thickness
(mm)

Surface Area

(m2 m3)

Porosity

(m2 m3)

Weight

(kg/m3)

聚丙烯无毒

PP

 Φ25 0.5 236.0987 0.9487 37
Φ30 0.5 169.4159 0.9570 42
Φ35 0.5 153.7468 0.9623 37
Φ40 0.5 148.4537 0.9675 33
Φ50 0.5 119.0055 0.9739 26
Φ60 0.5 99.3071 0.9781 22
Φ80 0.7 84.2268 0.932 20
聚氯乙烯无毒PVC Φ25 0.5 236.0987 0.9487 80
Φ30 0.5 169.4159 0.9570 64
Φ40 0.5 148.4537 0.9675 48
Φ50 0.5 119.0055 0.9739 40
Φ60 0.5 99.3071 0.9781 33

玻璃钢无毒

FRP

 Φ25 0.5 236.0987 0.9487 95
Φ30 0.5 169.4159 0.9570 75
Φ40 0.5 148.4537 0.9675 61
Φ50 0.5 119.0055 0.9739 50
Φ60 0.5 99.3071 0.9781 42



White Hexagonal Honeycomb PVC Fills Plastic Filter Media For Water Treatment 0

Cooling Tower Honeycomb Fills Types



Material: PP Honeycomb Fills,PVC Honeycomb Fills.

Assemble Structure: Straight Type,Inclined Type.

Color: White,Blue,Black,Green.

Function: Honeycomb Cooling Tower Fills,Honeycomb Drift Eliminator.



Inclined Honeycomb Fills Applications


Precipitation and degritting in new construction and reconstruction projects.
Water inlet degritting.
Domestic water precipitation.
Sewage/waste water precipitation.
Oil eliminator.



Straight Honeycomb Fills Applications


Biochemical treatment for industrial organic waste water and civil waster water.
High load biofilter.
Tower biofilter.
Submerged biological filter
Microbial carrier of biological rotating disc
