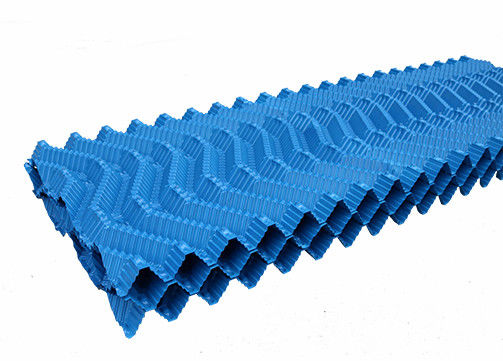

S Wave Plastic PVC Fills Cooling Tower Fill Media Cooling Tower Fillers
Cooling Tower Filler Product Description
◆S wave cooling tower filler is one of the most important components for exchange of gas and water in cooling tower. It is the major parts to improve the efficiency of cooling tower and make sure the economy and safe operation.
◆With the development of the plastic industry, counter-current tower drench water plastic packing "S" shape ladder wave, obliquely wave, which has the heat dissipation ,good performance ,Ventilated small resistance, durable, based on the easy and other advantages, it is widely used in different types of large, medium, small, cooling tower.
◆The top and bottom of the board form an "S" shape with convex trapezoidal waves, which are bonded and assembled with concave and convex bonding points. The waveforms between the sheets are in an oblique staggered form, which has good thermal resistance characteristics.
Cooling Tower Fill Media Feature
◆Piece thickness before forming: 0.35+0.05mm
◆Assembly method: bonding, staggered arrangement
◆Single piece size 0.5x1m
◆Uniform load of simply supported beam of assembly block: ≥4805N/m2
◆Scope of application: various counter-flow natural ventilation cooling towers and mechanical ventilation cooling towers
Cooling Tower Filler Specifications
| No. | Item | Specification |
| 1 | Material | PVC |
| 2 | Thickness Before Forming | 0.32-0.36mm |
| 3 | Chip Pitch | 30mm |
| 4 | Assembly Filler Height | 2*500mm3*500mm |
| 5 | Assembly Dimensions | 1000*500*500mm |
| 6 | Component Quality | 18.5/m3左右 |
| 7 | Number Of Filler Pieces | 66片/m3 |
