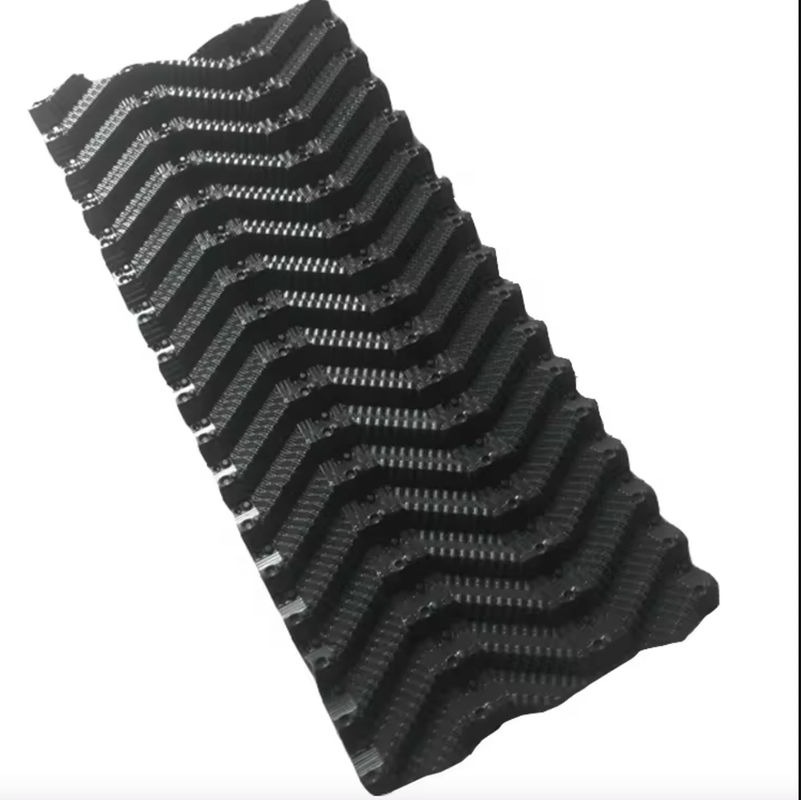

S Wave Cooling Tower Plastic Fill Corrugated Cooling Tower Filler For Industrial Use
Cooling Tower Fillers Product Description
◆S Wave Film Fill. The cooling tower fill type is "S" wave counter flow type cooling tower fill which are the most widely used cooling tower fill types. Due to its big space design and S wave fill types, the fills have excellent efficiency and good performance in processing the dirty water.
◆"S" wave water packing make full use of the reasonable design principle of the trapezoidal oblique wave, at the same time increase the number of water film closure, make water film repeatedly redistribution and tend to be more uniform.Increase vertical rib stop wave, improve water film lateral diffusion ability, can make the moisture in the packing more fully for heat and mass transfer, at the same time make the water film or slow speed, extend the time for heat and mass transfer, improve the cooling effect.
Cooling Tower Fill Media Feature
◆Piece thickness before forming: 0.35+0.05mm
◆Assembly method: bonding, staggered arrangement
◆Single piece size 0.5x1m
◆Uniform load of simply supported beam of assembly block: ≥4805N/m2
◆Scope of application: various counter-flow natural ventilation cooling towers and mechanical ventilation cooling towers
Cooling Tower Filler Specifications
| No. | Item | Specification |
| 1 | Material | PVC |
| 2 | Thickness Before Forming | 0.32-0.36mm |
| 3 | Chip Pitch | 30mm |
| 4 | Assembly Filler Height | 2*500mm3*500mm |
| 5 | Assembly Dimensions | 1000*500*500mm |
| 6 | Component Quality | 18.5/m3左右 |
| 7 | Number Of Filler Pieces | 66片/m3 |
