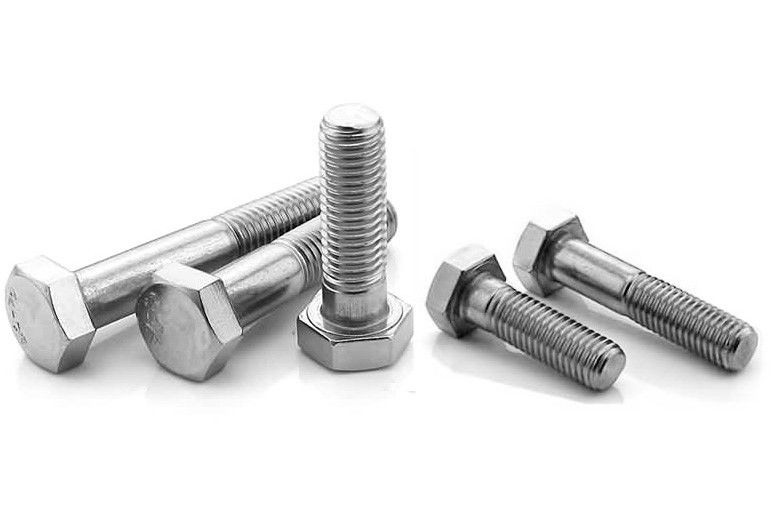

Steel Hexagon Screw Head Bolts Hex Cap Bolts For Construction Automobile Engineering Industries
Hex Head Bolt Overview:
Bolt: A mechanical part, a cylindrical threaded fastener equipped with a nut. A type of fastener consisting of a head and a screw (cylinder with external threads). It needs to be matched with a nut and is used to fasten and connect two parts with through holes. This type of connection is called a bolt connection. If the nut is unscrewed from the bolt, the two parts can be separated, so the bolt connection is a detachable connection.
Product use: mechanical parts
Hex Head Stainless Steel Bolts Application:
Bolts are indispensable in daily life and in industrial production manufacturing. Bolts are also called the rice of industry. It can be seen that bolts are widely used. The application scope of bolts includes: electronic products, machinery products, digital products, power equipment, and electromechanical machinery products. Bolts are also used in ships, vehicles, water conservancy projects, and even chemical experiments.
Anyway, bolts are used in many places. Especially precision bolts used in digital products. Micro bolts used in DVDs, cameras, glasses, clocks, and electronics; general bolts used in televisions, electrical products, musical instruments, furniture, etc.; large bolts and nuts used in engineering, construction, and bridges; transportation equipment, airplanes, trams, and automobiles etc. Use both large and small bolts.
Hexagon Head Bolts Specification:
| Category | Product Name | Standard | Specification range (mm) | Main Purpose | ||
| d | L | |||||
| Hex Head | Hexagon Head Bolts (rough) | GB5-76 | 10～100 | 20~500 | Widely used. Refined bolts are used in important places with high assembly precision and in places subject to large impact, vibration or variable loads. | |
| Hexagon Head Probe Seat Bolt | GB30-76 | 3~48 | 4~300 | |||
| Micro Hex Head Screw Bolt With Hole | GB21-76 | 8~48 | 10~300 | |||
| Hexagon Head Bolt With Hole | GB31-76 | 6~48 | 10~300 | Supply and demand are used when locking | ||
| Small Hexagon Head Bolt With Hole | GB23-76 | 8~48 | 10～300 | |||
| Hexagon Bolts With Wire Hole On Head | GB32-76 | 6~48 | 10~300 | |||
| Small Hexagon Bolts With Wire Hole On Head | GB25-76 | 8~48 | 10~300 | |||
| Slotted Hexagon Head Bolts | GB29-76 | 3~12 | 4~200 | |||
| Hexagon Head Bolt With Guide Neck | GB22-76 | 8~36 | 30~300 | Used for occasions with good alignment requirements, the pad circle will not deviate to one side. | ||
| Small Hexagon Head Bolt With Fit Neck And Hole | GB24-76 | 8~36 | 30～300 | |||
| Small Hexagon Head Bolts With Fit Neck And Hole Through The Shank | GB26-76 | 8~36 | 30~300 | |||
| Small Hexagon Fit Bolts | GB27-76 | 6~48 | 22～300 | It can accurately fix the mutual position of the connected parts, and can withstand the shear and compression caused by lateral forces. The deviations of dl include d4, ga and jc4 | ||
| Hexagon Fit Bolts With Split Pin Hole On Shank | GB28-76 | 6~48 | 22~300 | |||
| Square Head | Square Head Bolts (rough) | GB8-76 | 10~48 | 20～300 | The square head has a larger size, which makes it easier for the wrench mouth to be stuck or against other parts to prevent rotation. It is sometimes used in T-shaped slots and is often used on some rough structures. | |
| Small Square Head Bolt | GB35-76 | 5~48 | 10~300 | |||
| Countersunk Head | Countersunk Square Neck Bolts (rough) | GB10-76 | 6~20 | 25~200 | It is mostly used in places where the surface of the part needs to be flat or smooth and does not prevent hanging things (the square neck or wedge acts as a rotation stop) | |
| Countersunk Head Wedge Bolts (rough) | GB11-76 | 6~24 | 25~200 | |||
| Half Round Head | Half Round Head Square Neck Bolts (rough) | GB12-76 | 6~20 | 16~200 | It is mostly used in places where the structure is restricted and other bolt heads or parts cannot be used, and the surface is required to be smooth. The semi-round head and square neck are mostly used for metal parts, the large round head is used for wooden parts, and the reinforced semi-round head is used for shock, vibration and variable loads | |
| Large Half Round Head Square Neck Bolts (rough) | GB14-76 | 6~24 | 20~200 | |||
| Cup Head Nib Bolts With Large Head (rough) | GB15-76 | 6~24 | 20～200 | |||
| Half Round Head Wedge Bolt (rough) | GB13-76 | 6~24 | 20~200 | |||
| T Slot | T Slot Bolts | GB37-76 | 5~48 | 25～300 | It is mostly used in places where bolts can only be connected from one side of the connected part. At this time, the bolt is inserted from the T-shaped hole of the connected part and the bolt is rotated 90°. It is also used in places where the structure requires compactness. | |
| For hinges | Joint Bolt (rough) | GB798-76 | 4~36 | 20~300 | Mostly used in places and work equipment that need to be frequently disassembled and connected. | |
| Anchor | Anchor Bolt (rough) | GB799-76 | 6~48 | 80~1500 | Used for fixing racks in cement foundations. | |
| Right Angle Anchor Bolt | Q/ZB185- 73 | 16~56 | 300~2600 | |||
| T-head Anchor Bolt | Q/ZB186- 73 | 24~64 | 200～1600 | |||
| Studs | Double End Stud Bolts (rough) | GB953-76 | 8~48 | 100~2500 | It is mostly used in places where the connected parts are too thick to be connected by bolts, or where screws are not directly used due to frequent disassembly, or where the structure requires a relatively compact structure. | |
| Double End Stud Bolts | GB901-76 | 2~56 | 10~480 | Generally, double-headed studs are used where one end needs to be screwed into the probe hole to fix it. Double-headed probe posts of equal length are equipped with nuts on both ends to connect the parts. | ||
| Double Head Studs | L1=d | GB897-76 | 5~48 | 16~300 | ||
| L1=1.25d | GB898-76 | 2~48 | 16~300 | |||
| L1=1.5d | GB899-76 | 2~48 | 12~300 | |||
| L1=2d | GB900-76 | 6~20 | 12~300 | |||
| Welded Single-head Studs | GB902-76 | 6~20 | 16~300 | Used for connecting copper plates and thin parts. | ||
