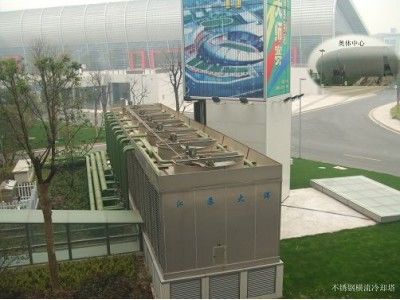

Stainless Steel Induced Draft Cross Flow Cooling Tower Open Circuit Cooling Tower
Cooling Tower Quality Control:
Under standard working conditions, the circulating cooling water volume, cooling effect and operating noise are ensured. During the manufacturing process of the cooling tower, each process of the product is strictly controlled in accordance with the ISO9001 quality system assurance model standard to ensure its operating effect and ensure that unqualified products do not flow into the next process. Before the cooling tower leaves the factory, a trial run is carried out to detect its noise and wind speed, so that the various indicators of the product meet the user's requirements.
Cooling Tower Specification:
| Model | Volume | Temp Difference ℃ | Dimension | Fan | User-made Pipe Valve | Noise dB(A) |
Weight kg |
Weight kg | ||||||||||
|
28℃ |
27℃ | L×W×H | Air Volume ( Ten Thousand) m3/h |
Diameter cm |
Power kw |
Trans mission |
Number |
Water inlet pipe mm |
Water distribution mm |
Water outlet mm |
Water supply mm |
Overflow pipe mm |
Drainage outlet mm | |||||
|
10 |
10 |
12 |
5 | 1700×850×1250 | 0.60 | 500 | 0.37 | Direct |
1 |
40 |
32x2 |
65 |
25 |
30 |
30 |
∠50 | 200 | 450 |
| 6 | 1700x850×1500 | 0.72 | 600 | 0.75 | 210 | 460 | ||||||||||||
| 10 | 1700x850×1750 | 1.05 | 700 | 0.75 | 220 | 470 | ||||||||||||
| 25 | 1700×850×2000 | 1.80 | 700 | 1.5 | 230 | 480 | ||||||||||||
|
15 |
15 |
18 |
5 | 1800x950x1500 | 0.72 | 600 | 0.55 | Direct |
1 |
50 |
40x2 |
65 |
25 |
30 |
30 |
∠50 | 230 | 530 |
| 6 | 1800x950×1750 | 1.05 | 700 | 0.75 | 240 | 540 | ||||||||||||
| 10 | 1800×950x2000 | 1.80 | 700 | 1.10 | 260 | 560 | ||||||||||||
| 25 | 1800×950×2250 | 2.70 | 800 | 1.5 | 280 | 580 | ||||||||||||
|
20 |
20 |
25 |
5 | 1900×1150x1750 | 1.05 | 700 | 0.75 | Direct |
1 |
65 |
50×2 |
80 |
25 |
40 |
30 |
∠50 | 320 | 870 |
| 6 | 1900x1150×2000 | 1.25 | 800 | 0.75 | 340 | 800 | ||||||||||||
| 10 | 1900x1150×2250 | 1.8 | 800 | 1.10 | 360 | 910 | ||||||||||||
| 25 | 1900×1150×2500 | 3.2 | 800 | 1.5 | 380 | 930 | ||||||||||||
|
30 |
30 |
a5 |
5 | 2100x1150×2000 | 1.8 | 800 | 1.10 | Direct |
1 |
65 |
50x2 |
80 |
25 |
40 |
40 |
∠50 | 350 | 950 |
| 6 | 2100x1250×2250 | 2.2 | 900 | 1.10 | 380 | 980 | ||||||||||||
| 10 | 2100×1250×2500 | 3.3 | 900 | 1.5 | 400 | 1000 | ||||||||||||
| 25 | 2100×1250×2700 | 4.4 | 1000 | 2.2 | 450 | 1050 | ||||||||||||
|
50 |
50 |
55 |
5 | 2800x1450×2250 | 3.3 | 1000 | 1.1 | Direct |
1 |
80 |
65×2 |
100 |
40 |
50 |
50 |
∠50 | 750 | 1450 |
| 6 | 2800x1450x2500 | 3.8 | 1200 | 1.5 | 760 | 1510 | ||||||||||||
| 10 | 2800x1450×2750 | 4.8 | 1200 | 2.2 | 820 | 1600 | ||||||||||||
| 25 | 2800×1450×2900 | 6.5 | 1200 | 2.2 | 900 | 1700 | ||||||||||||
| Model | Volume | Temp Difference℃ | Dimension | Fan | User-made Pipe Valve | Noise dB(A) |
Weight kg |
Weight kg |
||||||||||
| 28℃ | 27℃ | L×W×H |
Air Volume ( Ten Thousand) m3/h |
Diameter cm |
Power kw |
Trans mission |
Number |
Water inlet pipe mm |
Water distribution mm |
Water outlet mm |
Water supply mm |
Overflow pipe mm |
Drainage outlet mm |
|||||
|
B0 |
80 |
90 |
5 | 3500×1700×3000 | 5.4 | 1200 | 2.2 | Direct |
1 |
100 |
80×2 |
125 |
40 |
50 |
50 |
∠51 | 890 | 1900 |
| 6 | 3500×1700x3200 | 6.2 | 1500 | 3.0 | 1000 | 2100 | ||||||||||||
| 10 | 3500×1700×3600 | 6.5 | 1500 | 3.0 | 1300 | 2400 | ||||||||||||
| 25 | 3500×1700×4100 | 7.2 | 1500 | 4.0 | 1500 | 2600 | ||||||||||||
|
100 |
100 |
115 |
5 | 3800×2100x3000 | 6,5 | 1500 | 3.0 | Direct |
1 |
125 |
100x2 |
150 |
40 |
50 |
50 |
∠51 | 1050 | 2550 |
| 6 | 3800×2100×3100 | 6.8 | 1800 | 3.0 | 1200 | 2600 | ||||||||||||
| 10 | 3800×2100×3600 | 7.5 | 1800 | 4.0 | 1500 | 2750 | ||||||||||||
| 25 | 4000×2300×4100 | 10.5 | 2000 | 5.5 | 1800 | 2950 | ||||||||||||
|
125 |
125 |
140 |
5 | 3800×2400×3000 | 7.2 | 1500 | 3.0 | Direct |
1 |
125 |
100×2 |
150 |
40 |
50 |
50 |
∠52 | 1300 | 2650 |
| 6 | 3800×2400×3100 | 9.7 | 1800 | 4.0 | 1400 | 2700 | ||||||||||||
| 10 | 3800×2400×3600 | 10.5 | 1800 | 4.0 | 1600 | 2950 | ||||||||||||
| 25 | 4000x240084100 | 13.6 | 2000 | 5.5 | 2000 | 3350 | ||||||||||||
|
150 |
150 |
170 |
5 | 4000×2700×3000 | 8.5 | 1800 | 4.0 | Direct |
1 |
150 |
125×2 |
200 |
40 |
50 |
50 |
∠52 | 1400 | 2850 |
| 6 | 4000×2700×3100 | 9.7 | 2000 | 4.0 | 1650 | 3100 | ||||||||||||
| 10 | 4200×2700×3600 | 13.6 | 2000 | 5.5 | 2000 | 3450 | ||||||||||||
| 25 | 4400×2700×4100 | 16.0 | 2400 | 7.5 | 2400 | 4150 | ||||||||||||
|
175 |
175 |
180 |
5 | 4000×2800×3000 | 9.0 | 1800 | 4.0 |
Direct Reduce |
1 |
150 |
125×2 |
200 |
40 |
50 |
50 |
∠50 | 1800 | 3400 |
| 6 | 4200×2800x3100 | 9.8 | 2000 | 5.5 | 1900 | 3550 | ||||||||||||
| 10 | 4200×2800×3600 | 14.0 | 2000 | 5.5 | 2400 | 3900 | ||||||||||||
| 25 | 4400×2800×4100 | 16.0 | 2400 | 7,5 | 2700 | 4300 | ||||||||||||
|
200 |
200 |
230 |
5 | 4200×3000×3000 | 12.2 | 2000 | 5.5 |
Direct Reduce |
1 |
200 |
125×2 |
250 |
40 |
50 |
50 |
∠53 | 1950 | 3600 |
| 6 | 4200x3000×3100 | 13.0 | 2000 | 5.5 | 2100 | 3780 | ||||||||||||
| 10 | 4400×3000×3600 | 16.2 | 2400 | 7.5 | 2400 | 4250 | ||||||||||||
| 25 | 4800×3200×4100 | 18.0 | 2800 | 11.0 | 2700 | 4750 | ||||||||||||
|
250 |
250 |
280 |
5 | 4400x3300x3000 | 13.6 | 2400 | 7.5 | Reduce |
1 |
200 |
150×2 |
250 |
40 |
65 |
65 |
∠56 | 2400 | 4470 |
| 6 | 4400x3300×3100 | 16.2 | 2400 | 7.5 | 2600 | 4700 | ||||||||||||
| 10 | 4800×3300×3600 | 18.5 | 2800 | 11.0 | 2700 | 4900 | ||||||||||||
| 25 | 4800x3300x4100 | 20.5 | 2800 | 11.0 | 2900 | 5300 | ||||||||||||
|
300 |
300 |
320 |
5 | 4800x3900x3000 | 16.2 | 2800 | 7.5 | Reduce |
1 |
250 |
150×2 |
300 |
40 |
65 |
65 |
∠56 | 2700 | 5450 |
| 6 | 4800x3900×3100 | 18.6 | 2800 | 11.0 | 2900 | 5650 | ||||||||||||
| 10 | 5000x3900x3600 | 18.6 | 3000 | 11.0 | 3000 | 5900 | ||||||||||||
| 25 | 5200×3900×4100 | 20.5 | 3200 | 11.0 | 3150 | 6700 | ||||||||||||
|
350 |
350 |
375 |
5 | 4000x5600x3000 | 18,6 | 1800 | 4.0 |
Direct Reduce |
2 |
250 |
125×4 |
200×2 |
40×2 |
50x2 |
50×2 |
∠56 | 3100 | 6900 |
| 6 | 4200×5600x3000 | 20.5 | 2000 | 5.5 | 3180 | 7300 | ||||||||||||
| 10 | 4200×5600x3600 | 23.0 | 2000 | 5.5 | 3450 | 7800 | ||||||||||||
| 25 | 4400x5600×4100 | 25.8 | 2400 | 7.5 | 3900 | 8500 | ||||||||||||
|
400 |
400 |
430 |
5 | 4200×6000×3000 | 25.0 | 2000 | 5.5 |
Direct Reduce |
2 |
200 |
125×4 |
250×2 |
40×2 |
50x2 |
50x2 |
∠59 | 3300 | 7200 |
| 6 | 4200×6000×3100 | 27.0 | 2000 | 5.5 | 3500 | 7500 | ||||||||||||
| 10 | 4400×6000×3600 | 32.0 | 2400 | 7.5 | 3950 | 7700 | ||||||||||||
| 25 | 4800×6400×4100 | 40.0 | 2800 | 11.0 |
4200 |
8000 | ||||||||||||
| Model | Volume |
Temp Difference ℃ |
Dimension | Fan | User-made Pipe Valve | Noise dB(A) |
Weight kg
|
Weight kg
|
||||||||||
| 28℃ | 27℃ | L×W×H | Air Volume ( Ten Thousand) m3/h |
Diameter cm
|
Power kw |
Trans mission
|
Number |
Water inlet pipe mm
|
Water distribution mm
|
Water outlet mm
|
Water supply mm
|
Overflow pipe mm
|
Drainage outlet mm | |||||
|
450 |
450 |
480 |
5 | 4000×8100×3000 | 25.0 | 1800 | 4.0 |
Direct Reduce
|
3 |
300 |
125×6 |
200x3 |
40×3 |
50×3 |
50×3 |
∠59 | 4050 | 8400 |
| 6 | 4000x8100x3100 | 29.0 | 1800 | 4.0 | 4200 | 8500 | ||||||||||||
| 10 | 4200×8100×3600 | 40.0 | 2000 | 5,5 | 4500 | 9000 | ||||||||||||
| 25 | 4400x8100x4100 | 48.0 | 2400 | 7.5 | 4900 | 10000 | ||||||||||||
|
500 |
500 |
550 |
5 | 4400×6600×3000 | 27.0 | 2400 | 7.5 | Reduce |
2 |
300 |
150×4 |
250×2 |
40×2 |
65×2 |
65×2 |
∠60 | 4100 | 8600 |
| 6 | 4400x6600x3100 | 32.0 | 2400 | 75 | 4250 | 9000 | ||||||||||||
| 10 | 4800×6600×3600 | 38.0 | 2800 | 11.0 | 4600 | 11000 | ||||||||||||
| 25 | 4800x6000x4100 | 52.0 | 2800 | 11.0 | 4960 | 11500 | ||||||||||||
|
600 |
00 |
650 |
5 | 4200×9000×3000 | 32.5 | 2000 | 5.5 |
Direct Reduce
|
3 |
350 |
125×6 |
250×3 |
40x4 |
50×3 |
50x3 |
∠61 | 4650 | 10500 |
| 6 | 4200x9000x3100 | 40.0 | 2000 | 5.5 | 4800 | 11000 | ||||||||||||
| 10 | 4400×9000×3600 | 45.5 | 2400 | 7.5 | 5300 | 12500 | ||||||||||||
| 25 | 4800x9600×4100 | 60.0 | 2800 | 11.0 | 5900 | 13000 | ||||||||||||
|
700 |
700 |
750 |
5 | 4000×11200×3000 | 40.0 | 1800 | 4.0 |
Direct Reduce
|
4 |
350 |
125x8 |
200×4 |
40×4 |
50×4 |
50×4 |
∠62 | 6100 | 13000 |
| 6 | 4200×11200x3100 |
45.5 |
2000 | 5.5 | 6250 | 13500 | ||||||||||||
| 10 | 4200×11200x3600 | 52.5 | 2000 | 5.5 | 6700 | 14000 | ||||||||||||
| 25 | 4400×11200×4100 | 70.0 | 2400 | 7.5 | 7600 | 15000 | ||||||||||||
|
800 |
800 |
860 |
5 | 4200x12000x3000 | 48.0 | 2000 | 5.5 |
Direct Reduce
|
4 |
400 |
125×8 |
250x4 |
40×4 |
50×4 |
50×4 |
∠62 | 6100 | 15100 |
| 6 | 4200×12000×3100 | 52.5 | 2000 | 5.5 | 6300 | 15600 | ||||||||||||
| 10 | 4400×12000×3600 | 72.0 | 2400 | 7.5 | 7200 | 16000 | ||||||||||||
| 25 | 4800x12800×4100 | 80.0 | 2800 | 11.0 | 8100 | 16900 | ||||||||||||
|
900 |
900 |
960 |
5 | 4000x16200x3000 | 54.0 | 1800 | 4.0 |
Direct Reduce
|
6 |
400 |
125×12 |
200×6 |
40×6 |
50×6 |
50×6 |
∠65 | 6600 | 13800 |
| 6 | 4000x16200x3100 | 57.5 | 2000 | 4.0 | 7000 | 16000 | ||||||||||||
| 10 | 4200×16200×3600 | 67.5 | 2000 | 5.5 | 8600 | 16800 | ||||||||||||
| 25 | 4400×16200×4100 | 90.0 | 2400 | 7.5 | 10000 | 17600 | ||||||||||||
|
1000 |
1000 |
1230 |
5 | 4200×15000×3100 | 62.5 | 5000 | 5.5 |
Direct Reduce
|
5 |
400 |
125×10 |
250x5 |
40×5 |
50×5 |
50x5 |
∠68 | 7600 | 16600 |
| 6 | 4200×15000×3100 | 65.5 | 2000 | 5.5 | 7800 | 16900 | ||||||||||||
| 10 | 4200×15000×3100 | 75.5 | 2400 | 7.5 | 9100 | 18900 | ||||||||||||
| 25 | 4800x16000x4100 | 98.0 | 2800 | 11.0 | 10100 | 20700 | ||||||||||||
|
1200 |
1200 |
1350 |
5 | 4200x18000×3000 | 100 | 2000 | 5.5 |
Direct Reduce
|
6 |
500 |
125×12 |
2506 |
40%6 |
50×6 |
50x6 |
∠68 | 9400 | 21000 |
| 6 | 4200x18000×3100 | 115 | 2000 | 5.5 | 9600 | 22000 | ||||||||||||
| 10 | 4400x18000x3600 | 140 | 2400 | 7.5 | 10100 | 23000 | ||||||||||||
| 25 | 4800×19200×4100 | 210 | 2800 | 11.0 | 12200 | 26000 | ||||||||||||
|
1500 |
1500 |
1650 |
5 | 4400×19800×3000 | 100 | 2400 | 7.5 | Reduce |
6 |
500 |
125x12 |
250x6 |
40x6 |
65×6 |
65x6 |
∠68 | 10100 | 23000 |
| 6 | 4400×19800×3100 | 115 | 2400 | 7.5 | 11500 | 25000 | ||||||||||||
| 10 | 4800×19800×3600 | 140 | 2800 | 11.0 | 12500 | 31000 | ||||||||||||
| 25 | 4800x19800×4100 | 210 | 2800 | 11.0 | 14500 | 36000 | ||||||||||||
|
1800 |
1800 |
1805 |
5 | 4200×27000×3000 | 100 | 2000 | 4.0 |
Direct Reduce
|
9 |
550 |
125x18 |
250x9 |
40x9 |
50x9 |
50x9 |
∠68 | 14200 | 22500 |
| 6 | 1200×27000×3100 | 120 | 2000 | 5.5 | 15000 | 24000 | ||||||||||||
| 10 | 4400×27000×3600 | 150 | 2400 | 7.5 | 17000 | 35000 | ||||||||||||
| 25 | 4800×28800×4100 | 240 | 2800 | 11.0 | 20000 | 56000 | ||||||||||||
Cooling Tower Installation Requirements:
The cooling tower should be installed on a flat ground or building platform with good natural ventilation, no building obstruction at the air inlet and no heat impact. There must be no objects at 1.5-2 meters at the air inlet to ensure smooth natural wind.
The cooling tower should be installed on a horizontal foundation to ensure that the overall mass of the cooling tower is evenly stressed on the foundation pier.
