CCCT Crossflow Closed Cooling Tower Induced Draft Crossflow Cooling Tower
Product Description:

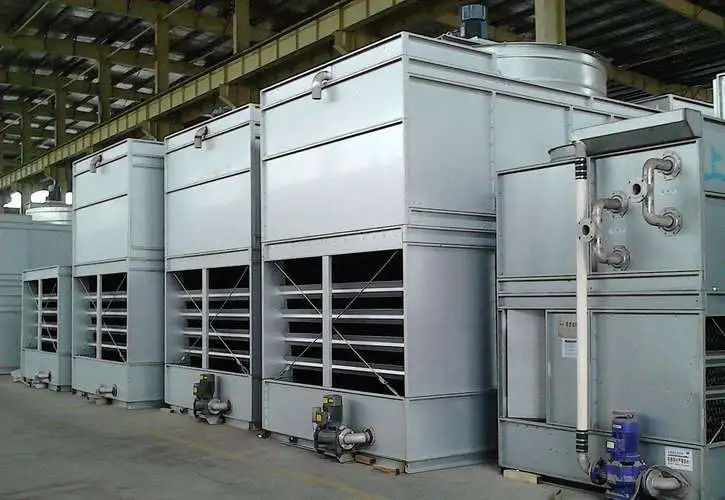

Crossflow Closed Cooling Towers (CCCT) are an indirect-contact evaporative cooler in which ambient air, spray water, and process fluid work together. The thermal performance of this cooling tower has significant impact on the thermal performance of the system in which it is implemented.
GHM Series are of capacities from 30 to 366 nominal tons, can work in series as a group for larger capacities. Casing made in special Mg-Al-Zn alloy coated steel or stainless steel, Heat exchange coils made in stainless steel or red copper. Wet deck fills made in PVC. All raw materials are of high industrial grade, with superior corrosion resistant features. GHM towers are designed of high efficiency.
Working Theory:
GHM series belong to induced draft type cross flow cooling towers. During the working process, dry cool air is inlet through wide louvers on one side of the tower, then directed through the heat exchanfe coils and wet deck fills across the spray water becoming wet hot air, eventually draught out of the tower into the atmosphere bythe fans on the top.In this process, a part of heat from the fluids inside the closed loop is transferred efficiently, and removed continuously.
Product Application:
Induction Furnace Cooling; Casting Cooling; Automotive Industrial Cooling; Solar Energy Cooling; Chemical Industrial Cooling; Electric Power Cooling; Glass Factory Cooling; IT Server Room Cooling
Product. Specification:
|
Model No |
Nominal Flow Rate (Ton) |
Fan | Circulating Pump | Connectig Pipe(mm) | OverallDimensions(mm) | Weight | |||||||
|
Power (kw) |
Air volumn(m3/s) |
Power (kw) |
Air volumn(m3/h) | inlet/outle | make up | drainage | L | W | H |
NET (kg) |
Running (kg) |
||
| GHM-225 | 30 | 1.1×2 | 3.7×2 | 1.5 | 45 | DN80 | DN25 | DN40 | 2540 | 940 | 2200 | 1020 | 1820 |
| GHM-230 | 37 | 1.1×2 | 3.7×2 | 1.5 | 45 | DN80 | DN25 | DN40 | 2960 | 940 | 2200 | 1050 | 2020 |
| GHM-235 | 43 | 1.1×2 | 3.7×2 | 1.5 | 45 | DN80 | DN25 | DN40 | 2960 | 1940 | 2200 | 1100 | 2100 |
| GHM-340 | 49 | 1.1×3 | 3.7×3 | 2.2 | 60 | DN80 | DN25 | DN40 | 3360 | 1940 | 2200 | 1310 | 2540 |
| GHM-350 | 61 | 1.1×3 | 3.7×3 | 2.2 | 60 | DN80×2 | DN25 | DN40 | 3360 | 1940 | 2730 | 1450 | 3080 |
| GHM-365 | 79 | 1.5×3 | 5.1×3 | 2.2 | 60 | DN80×2 | DN25 | DN40 | 3360 | 1940 | 2730 | 1520 | 3200 |
| GHM-380 | 98 | 1.5×4 | 5.1×4 | 2.2 | 114 | DN80×2 | DN25 | DN40 | 4220 | 2240 | 2680 | 2050 | 4920 |
| GHM-390 | 110 | 1.5×4 | 51x | 2.2 | 114 | DN80×2 | DN25 | DN40 | 4220 | 2240 | 2680 | 2100 | 5000 |
| GHM-3100 | 122 | 1.5×4 | 5.1×4 | 2.2 | 114 | DN80×2 | DN25 | DN40 | 4220 | 2240 | 2840 | 2150 | 5100 |
| GHM-3110 | 134 | 1.5×4 | 5.1×4 | 2.2 | 114 | DN80×2 | DN25 | DN40 | 4220 | 2240 | 2840 | 2250 | 5250 |
| GHM-5125 | 152 | 1.5×4 | 5.1×4 | 3.7 | 140 | DN100×2 | DN40 | DN40 | 4740 | 2240 | 2910 | 2800 | 6800 |
| GHM-5150 | 183 | 2.2×4 | 6.3×4 | 3.7 | 140 | DN100×2 | DN40 | DN40 | 5440 | 2240 | 2910 | 3200 | 7820 |
| GHM-5175 | 213 | 2.2×4 | 6.3×4 | 3.7 | 140 | DN125×2 | DN40 | DN40 | 5440 | 2240 | 2910 | 3300 | 8000 |
| GHM-7200 | 244 | 4x4 | 16.7×4 | 5.5 | 160 | DN125×2 | DN40 | DMao | 5840 | 2900 | 3260 | 5000 | 9000 |
| GHM-7225 | 274 | 4x4 | 16.7×4 | 5.5 | 160 | DN125×2 | DN40 | DN4o | 5840 | 2900 | 3470 | 5500 | 10000 |
| GHM-7250 | 305 | 4x4 | 16.7×4 | 5.5 | 160 | DN150×2 | DN40 | DN40 | 6420 | 2900 | 3470 | 6500 | 11500 |
| GHM-7275 | 335 | 4×4 | 16.7×4 | 5.5 | 160 | DN150×2 | DN40 | DN40 | 6420 | 2900 | 3470 | 6800 | 11800 |
| GHM-7300 | 366 | 4×4 | 16.7×4 | 5.5 | 160 | DN150×2 | DN40 | DN40 | 6420 | 2900 | 3470 | 7000 | 12000 |
NOTE
Nominal Tons are based upon temp.drop 35~29.5℃/95~85°F,WBT 25.5℃/78°F,and 0.681 m³/hr/ton.
