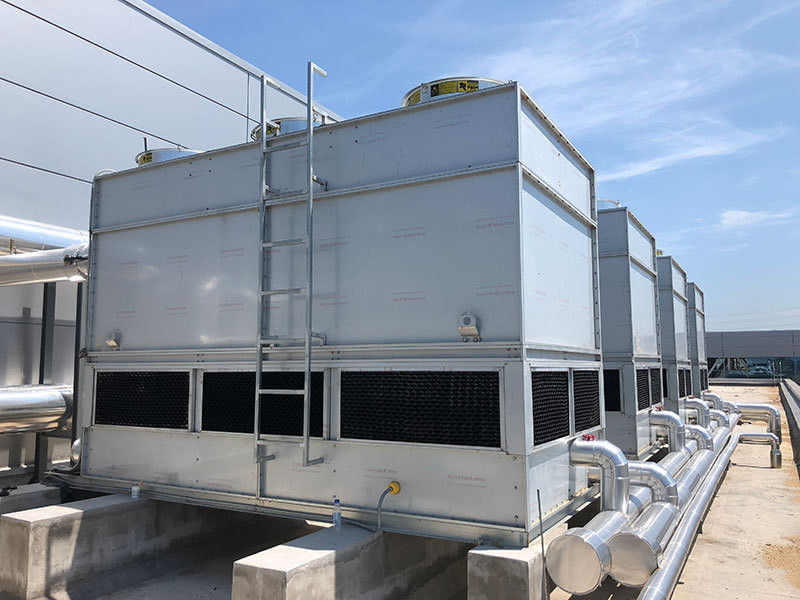

6 To 305 Nominal Tons Induced Draft Counter Flow Cooling Tower Closed Circuit Cooling Tower
Product Description:
GTM Series are of regular capacities from 6 to 305 nominal tons. Casing made in special Mg-Al-Zn alloy coated steel or stainless steel, Heat exchange coils made in stainless steel or red copper.
GTM Towers tend to be more compact, taking less installation space, working without any wet deck fill, more suitable to cool hot fluid of higher inlet temperature. The towers dimensions can be customized to suit standard containers orparticular project conditions.
Product Specification:
|
Model No |
Nominal Flow Rate (Ton) |
Fan |
Circulating Pump |
Connectig Pipe (mm) |
Overall Dimensions (mm) |
Weight |
|||||||||||||
|
Power (kw) |
Air volumn (m3/s) |
Power (kw) |
Air volumn (m3/h) |
inlet/outlet |
make up |
drainage |
L |
W |
H |
NET (kg) |
Running (kg) |
||||||||
| GTM-15 |
6 |
0.55 |
2.4 |
0.75 |
20 |
DN50 |
DN25 |
DN40 |
2200 |
1000 |
1830 |
450 |
700 |
||||||
| GTM-110 |
12 |
0.55 |
2.4 |
0.75 |
20 |
DN50 |
DN25 |
DN40 |
2400 |
1000 |
1900 |
490 |
800 |
||||||
| GTM-115 |
18 |
0.55×2 |
2.4×2 |
0.75 |
20 |
DN65 |
DN25 |
DN40 |
2300 |
1020 |
1830 |
460 |
1000 |
||||||
| GTM-120 |
24 |
0.55×2 |
2.4×2 |
0.75 |
20 |
DN65 |
DN25 |
DN40 |
2300 |
1020 |
1900 |
500 |
1050 |
||||||
| GTM-225 |
30 |
0.55×2 |
2.4×2 |
1.5 |
45 |
DN80 |
DN25 |
DN40 |
2860 |
1240 |
2050 |
730 |
1650 |
||||||
| GTM-230 |
37 |
1.1×2 |
3.7×2 |
1.5 |
45 |
DN80 |
DN25 |
DN40 |
2860 |
1240 |
2180 |
830 |
1760 |
||||||
| GTM-235 |
43 |
1.1×2 |
3.7×2 |
1.5 |
45 |
DN65×2 |
DN25 |
DN40 |
2860 |
1240 |
2420 |
1050 |
2030 |
||||||
| GTM-340 |
49 |
1.5×2 |
5.1×2 |
2.2 |
60 |
DN65×2 |
DN25 |
DN40 |
2860 |
1520 |
2440 |
1280 |
2500 |
||||||
| GTM-350 |
61 |
1.5×2 |
5.1×2 |
2.2 |
60 |
DN80×2 |
DN25 |
DN40 |
2860 |
1520 |
2630 |
1370 |
2660 |
||||||
| GTM-365 |
79 |
1.1×4 |
3.7×4 |
2.2 |
60 |
DN80×2 |
DN25 |
DN40 |
3200 |
1760 |
2630 |
1820 |
3460 |
||||||
| GTM-370 |
85 |
1.1×4 |
3.7×4 |
2.2 |
114 |
DN80×2 |
DN25 |
DN40 |
3200 |
2120 |
2750 |
1930 |
3970 |
||||||
| GTM-380 |
98 |
1.5×4 |
5.1×4 |
2.2 |
114 |
DN80×2 |
DN25 |
DN40 |
3200 |
2120 |
2750 |
2050 |
4000 |
||||||
| GTM-390 |
110 |
1.5×4 |
5.1×4 |
2.2 |
114 |
DN80×2 |
DN25 |
DN40 |
3200 |
2120 |
2750 |
2150 |
4050 |
||||||
| GTM-3100 |
122 |
1.5×4 |
5.1×4 |
2.2 |
114 |
DN80×2 |
DN25 |
DN40 |
3550 |
2120 |
2750 |
2330 |
4710 |
||||||
| GTM-3110 |
134 |
1.5×6 |
5.1×6 |
2.2 |
114 |
DN80×2 |
DN25 |
DN40 |
4150 |
2120 |
2870 |
2650 |
5550 |
||||||
| GTM-5125 |
152 |
1.5×8 |
5.1×8 |
3.7 |
140 |
DN100×2 |
DN40 |
DN40 |
4750 |
2120 |
2970 |
3100 |
6500 |
||||||
| GTM-5150 |
183 |
1.5×8 |
5.1×8 |
3.7 |
140 |
DN100×2 |
DN40 |
DN40 |
5050 |
2120 |
3120 |
3500 |
7480 |
||||||
| GTM-7175 |
213 |
1.5×8 |
5.1×8 |
5.5 |
160 |
DN125×2 |
DN40 |
DN40 |
5480 |
2120 |
3120 |
3800 |
8240 |
||||||
| GTM-7200 |
244 |
1.5×8 |
5.1×8 |
5.5 |
160 |
DN125×2 |
DN40 |
DN40 |
5080 |
2620 |
3120 |
4800 |
9170 |
||||||
| GTM-7225 |
274 |
1.5×8 |
5.1×8 |
5.5 |
160 |
DN125×2 |
DN40 |
DN40 |
5480 |
2620 |
3220 |
5600 |
11300 |
||||||
| GTM-10250 |
305 |
1.5×10 |
5.1×10 |
7.5 |
240 |
DN150×2 |
DN40 |
DN40 |
6230 |
2620 |
3220 |
6000 |
12560 |
||||||
Product Workng Theory:
As counter flow towers,the dry cool air is inlet through louvers on both sides of the tower from the bottom,and drawn upwards passing a large heat exchange surface of the coils section under the induced fans,against the spraying water in the opposite way,becoming hot wet air,induced draught out of the tower into the atmosphere by the fans on the top.During this process,a part of the heat from the fluids inside the closed loop is transferred effientiy,and removed to the outside environment.
