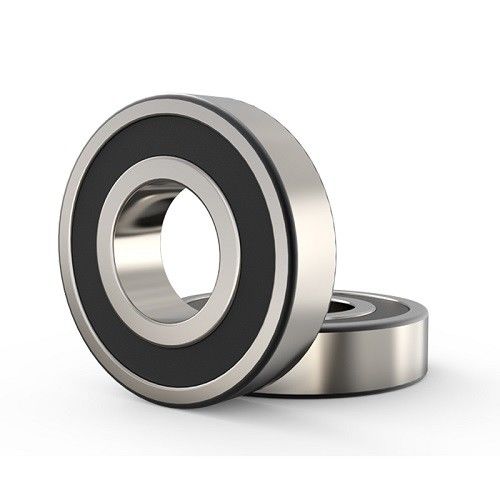

High Precision Rolling Bearings Tapered Roller Bearing Low Friction Torque
Rolling Bearings Overview
Roller Bearings contain cylindrical rolling elements instead of balls as load-carrying elements between the races. An element is considered a roller if its length is longer than its diameter (even if only slightly). Since they are in line contact with the inner and outer races (instead of point contact as in the case of ball bearings), they can support greater loading.
Rolling Bearings are also available in various types. The appropriate type may be selected after considering the type and magnitude of loading, service conditions, and the possibility of misalignment among other factors.
Rolling Bearings Advantages
Low friction
Easy maintenance
Can take high radial loads
Tapered roller bearings can withstand high axial loads
Great accuracy
Used to adjust the axial displacement
Ball Bearings Specification
| Bearing Designations |
Main Sizes (mm) |
Weight
(kg) |
Rated Loads (kN) |
Limit (r/min) |
Abutment and fillet dimensions (mm) | ||||||||
|
Designations |
Old spec |
d | D | B | rsmin |
Dynamic Cr |
Static Cor |
Grease |
Oil |
damin | Damax | ramax | |
| 61818 | 1000818 | 90 | 115 | 13 | 1 | 0.3 | 19.5 | 22 | 4500 | 5600 | 94.6 | 110 | 1 |
| 61918 | 1000918 | 90 | 125 | 18 | 1.1 | 0.58 | 33 | 31.5 | 5000 | 6000 | 96.5 | 118.5 | 1 |
| 6018 | 118K | 90 | 140 | 24 | 1.5 | 1.16 | 58.5 | 50 | 4800 | 5600 | 98 | 132 | 1.5 |
| 16018M | 7000118H | 90 | 140 | 16 | 1 | 0.941 | 58.5 | 50 | 4800 | 5600 | 95 | 135 | 1 |
| 6218N | 50218 | 90 | 160 | 30 | 2 | 2.15 | 95.5 | 72 | 3800 | 4500 | 99 | 151 | 2 |
| 6318 | 318K | 90 | 190 | 43 | 3 | 4.97 | 144 | 108 | 3400 | 4000 | 103 | 177 | 2.5 |
| 6418 | 418K | 90 | 225 | 54 | 4 | 9.47 | 193 | 158 | 3000 | 3600 | 106 | 209 | 3 |
| 61919M | 1000919H | 95 | 130 | 18 | 1.1 | 0.67 | 33.8 | 33 | 4800 | 5600 | 101 | 124 | 1 |
| 6219 | 219K | 95 | 170 | 32 | 2.1 | 2.65 | 108 | 81.5 | 3600 | 4300 | 106 | 159 | 2 |
| 6319 | 319K | 95 | 200 | 45 | 3 | 5.65 | 152 | 122 | 3200 | 3800 | 108 | 187 | 2.5 |
| 16020 | 7000120 | 100 | 150 | 16 | 1 | 1.12 | 43.6 | 44 | 4300 | 5000 | 108 | 142 | 1 |
| 6020 | 120K | 100 | 150 | 24 | 1.5 | 1.18 | 57.5 | 56.5 | 4300 | 5000 | 108 | 142 | 1.5 |
| 6220 | 220K | 100 | 180 | 34 | 2.1 | 3.19 | 122 | 93 | 3400 | 4000 | 111 | 169 | 2 |
| 6320 | 320K | 100 | 215 | 47 | 3 | 7.01 | 173 | 141 | 2800 | 3600 | 113 | 202 | 2.5 |
| 6420 | 420K | 100 | 250 | 58 | 4 | 12.8 | 224 | 195 | 2600 | 3400 | 116 | 234 | 3 |
| 720 | 100 | 180 | 28 | 1.8 | 2.7 | 116 | 92 | 3400 | 4000 | 111.5 | 171.5 | 1.8 | |
| 61820-2RS | 100 | 125 | 13 | 1 | 0.346 | 19.5 | 21 | 4800 | 5600 | 105 | 120 | 1 | |
| 61920M | 1000920H | 100 | 140 | 20 | 1.1 | 1.05 | 34.5 | 35 | 4500 | 5300 | 106.5 | 133.5 | 1 |
| 61920 | 1000920K | 100 | 140 | 20 | 1.1 | 0.96 | 34.5 | 35 | 4500 | 5300 | 106.5 | 133.5 | 1 |
| 16021M | 7000121H | 105 | 160 | 18 | 1 | 1.2 | 43.5 | 44.2 | 3600 | 4500 | 111 | 154 | 1 |
Rolling Bearings Application
Agriculture, construction and mining equipment, sports robot combat, axle systems, gearbox, engine motors and reducers, propeller shaft, railroad axle-box, differential, wind turbines, etc.
Gearboxes, wind turbines, continuous casting machines, material handling, pumps, mechanical fans and blowers, mining and construction equipment, pulp and paper processing equipment, marine propulsion and offshore drilling, off-road vehicles.
Our products are sold all over the world, you can rest assured.
