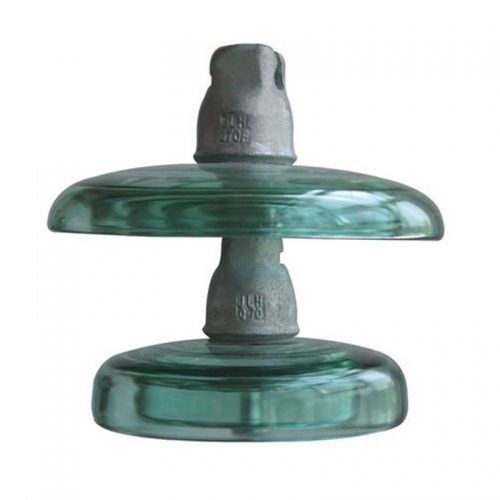

High Voltage Electric Pole Glass Insulators Blue Glass Power Line Insulators
Glass Disc Insulator Overview
Suspension Insulators are robust, high resistivity insulators, perfectly designed to withstand higher voltage loads in a variety of electrical systems operating in the full spectrum of climatic conditions.
Crafted from waterproof, durable materials, the suspension insulator is formed from a string of insulator discs assembled onto a pliable rod. This flexible construction allows for swing movement in harsh weather conditions – minimising the strain upon the insulator and maximising its service life.
In addition, the clever design of the suspension insulator makes it possible to add or replace insulator discs as required – removing the time, expense, and risk involved in replacing the whole insulator. This model is also compatible with a variety of accessories, including insulator string, corona rings, and end fittings – making it a firm favourite across a range of industries!
Electric Glass Insulators Specification
|
Product name and specification model |
Voltage level(KV) | Product name and specification model | Voltage level(KV) | ||
| Stain resistant type | Disc insulator U70BLP | 10KV-330KV | Standard type | Disc insulator U40B | 10KV-66KV |
| Disc insulator U70BLP1 | 10KV-330KV | Disc insulator U70BS | 10KV-330KV | ||
| Disc insulator U70BLP2 | 10KV-330KV | Disc insulator U70BL | 10KV-330KV | ||
| Disc insulator U80BLP | 10KV-330KV | Disc insulator U100BS | 10KV-330KV | ||
| Disc insulator U80BLP1 | 10KV-330KV | Disc insulator U100BL | 10KV-330KV | ||
| Disc insulator U100BLP | 10KV-330KV | Disc insulator U120B | 10KV-330KV | ||
| Disc insulator U100BLP1 | 10KV-330KV | Disc insulator U160BS | 10KV-500KV | ||
| Disc insulator U100BLP2 | 10KV-330KV | Disc insulator U160BM | 10KV-500KV | ||
| Disc insulator U120BP | 10KV-330KV | Disc insulator U160BL | 10KV-500KV | ||
| Disc insulator U120BP1 | 10KV-330KV | Disc insulator U210B | 10KV-500KV | ||
| Disc insulator U120BP2 | 10KV-330KV | Disc insulator U240B | 10KV-500KV | ||
| Disc insulator U160BMP | 10KV-500KV | Disc insulator U300B | 10KV-500KV | ||
| Disc insulator U160BLP | 10KV-500KV | Disc insulator U420B | 10KV-500KV | ||
| Disc insulator U160BMP1 | 10KV-500KV | Disc insulator U530B | 10KV-1000KV | ||
| Disc insulator U160BLP1 | 10KV-500KV | Disc insulator U550B | 10KV-1000KV | ||
| Disc insulator U210BP | 10KV-500KV | dual umbrella type | Disc insulator U70BLD | 10KV-330KV | |
| Disc insulator U210BP1 | 10KV-500KV | Disc insulator U70BSD | 10KV-330KV | ||
| Disc insulator U240BP | 10KV-500KV | Disc insulator U100BLD | 10KV-330KV | ||
| Disc insulator U240BP1 | 10KV-500KV | Disc insulator U100BSD | 10KV-330KV | ||
| Disc insulator U240BP2 | 10KV-500KV | Disc insulator U120BLD | 10KV-330KV | ||
| Disc insulator U300BP | 10KV-500KV | Disc insulator U160BLD | 10KV-500KV | ||
| Disc insulator U300BP1 | 10KV-500KV | Disc insulator U160BSD | 10KV-500KV | ||
| Aerodynamic type | Disc insulator U70BSM | 10KV-330KV | Disc insulator U160BMD | 10KV-500KV | |
| Disc insulator U70BLM | 10KV-330KV | Disc insulator U210BD | 10KV-500KV | ||
| Disc insulator U100BSM | 10KV-330KV | Disc insulator U240BD | 10KV-500KV | ||
| Disc insulator U100BLM | 10KV-330KV | Ground type | Disc insulator U70C | 10KV-330KV | |
| Disc insulator U120BLM | 10KV-330KV | Disc insulator U70CN | 10KV-330KV | ||
| Disc insulator U160BSM | 10KV-500KV | Disc insulator U100C | 10KV-330KV | ||
| Disc insulator U160BMM | 10KV-500KV | Disc insulator U100CN | 10KV-330KV | ||
| Disc insulator U160BLM | 10KV-500KV | ||||
| Disc insulator U210BM | 10KV-500KV | ||||
| Disc insulator U240BM | 10KV-500KV | ||||
Our products are sold all over the world, you can rest assured.
