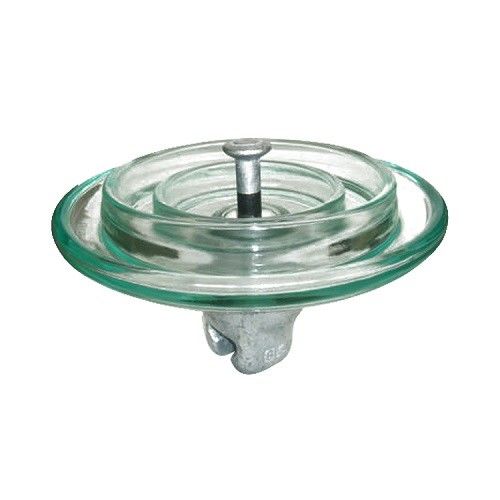

Disc Glass Reinforced Plastic Suspension Insulator Blue Glass Electrical Insulators
Glass Electrical Insulators Overview
Insulators are commonly used as a flexible coating on electric wire and cable. Since air is an insulator, in principle no other substance is needed to keep power where it should be. High-voltage power lines commonly use just air, since a solid (e.g., plastic) coating is impractical. However, wires which touch each other will produce cross connections, short circuits, and fire hazards. In coaxial cable the center conductor must be supported exactly in the middle of the hollow shield in order to prevent EM wave reflections. Finally, wires which expose voltages higher than 60V can cause human shock and electrocution hazards. Insulating coatings help to prevent all of these problems.
Disc Suspended Glass Insulator Feature
The Toughened glass insulators of cap and pin type is used high-voltage, ultrahigh voltage and extra high voltage alternating current and direct current transmission lines and hanging wires. It consists of iron cap, toughened glass and insulator pin. And owing to light weight, high intensity and large creepage distance , it can save metallic materials and reduce line cost.
Suspension Disc Insulator Specification
|
Product name and specification model |
Voltage level(KV) | Product name and specification model | Voltage level(KV) | ||
| Stain resistant type | Disc insulator U70BLP | 10KV-330KV | Standard type | Disc insulator U40B | 10KV-66KV |
| Disc insulator U70BLP1 | 10KV-330KV | Disc insulator U70BS | 10KV-330KV | ||
| Disc insulator U70BLP2 | 10KV-330KV | Disc insulator U70BL | 10KV-330KV | ||
| Disc insulator U80BLP | 10KV-330KV | Disc insulator U100BS | 10KV-330KV | ||
| Disc insulator U80BLP1 | 10KV-330KV | Disc insulator U100BL | 10KV-330KV | ||
| Disc insulator U100BLP | 10KV-330KV | Disc insulator U120B | 10KV-330KV | ||
| Disc insulator U100BLP1 | 10KV-330KV | Disc insulator U160BS | 10KV-500KV | ||
| Disc insulator U100BLP2 | 10KV-330KV | Disc insulator U160BM | 10KV-500KV | ||
| Disc insulator U120BP | 10KV-330KV | Disc insulator U160BL | 10KV-500KV | ||
| Disc insulator U120BP1 | 10KV-330KV | Disc insulator U210B | 10KV-500KV | ||
| Disc insulator U120BP2 | 10KV-330KV | Disc insulator U240B | 10KV-500KV | ||
| Disc insulator U160BMP | 10KV-500KV | Disc insulator U300B | 10KV-500KV | ||
| Disc insulator U160BLP | 10KV-500KV | Disc insulator U420B | 10KV-500KV | ||
| Disc insulator U160BMP1 | 10KV-500KV | Disc insulator U530B | 10KV-1000KV | ||
| Disc insulator U160BLP1 | 10KV-500KV | Disc insulator U550B | 10KV-1000KV | ||
| Disc insulator U210BP | 10KV-500KV | dual umbrella type | Disc insulator U70BLD | 10KV-330KV | |
| Disc insulator U210BP1 | 10KV-500KV | Disc insulator U70BSD | 10KV-330KV | ||
| Disc insulator U240BP | 10KV-500KV | Disc insulator U100BLD | 10KV-330KV | ||
| Disc insulator U240BP1 | 10KV-500KV | Disc insulator U100BSD | 10KV-330KV | ||
| Disc insulator U240BP2 | 10KV-500KV | Disc insulator U120BLD | 10KV-330KV | ||
| Disc insulator U300BP | 10KV-500KV | Disc insulator U160BLD | 10KV-500KV | ||
| Disc insulator U300BP1 | 10KV-500KV | Disc insulator U160BSD | 10KV-500KV | ||
| Aerodynamic type | Disc insulator U70BSM | 10KV-330KV | Disc insulator U160BMD | 10KV-500KV | |
| Disc insulator U70BLM | 10KV-330KV | Disc insulator U210BD | 10KV-500KV | ||
| Disc insulator U100BSM | 10KV-330KV | Disc insulator U240BD | 10KV-500KV | ||
| Disc insulator U100BLM | 10KV-330KV | Ground type | Disc insulator U70C | 10KV-330KV | |
| Disc insulator U120BLM | 10KV-330KV | Disc insulator U70CN | 10KV-330KV | ||
| Disc insulator U160BSM | 10KV-500KV | Disc insulator U100C | 10KV-330KV | ||
| Disc insulator U160BMM | 10KV-500KV | Disc insulator U100CN | 10KV-330KV | ||
| Disc insulator U160BLM | 10KV-500KV | ||||
| Disc insulator U210BM | 10KV-500KV | ||||
| Disc insulator U240BM | 10KV-500KV | ||||
Our products are sold all over the world, you can rest assured.
