Electric Pole Glass Insulators Overview

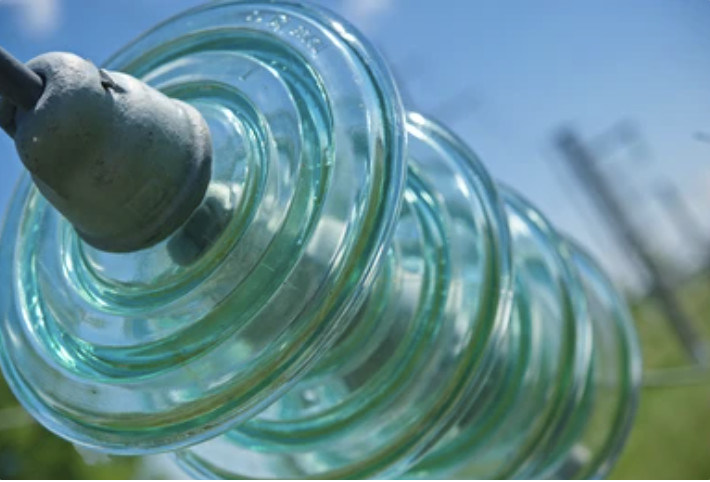

A Suspension Insulator, which is also known as a Strain Insulator, is a type of insulator designed to protect the overhead power line. The insulating materials for this insulator comprise discs connected to each other by string-like metal links. The transmission line conductor is suspended at the bottom side of the suspension string, which connects directly to the pole or tower.
Here are different insulation materials that are used on the suspension insulators. They include porcelain, glass, polymer, ceramic, and crystals such as quartz.
The main difference between pin insulator and suspension type insulator is their insulation capacity. Suspension insulator is ideal for transmission lines with more than 33Kv. The transmission line voltage will dictate the number of discs to be used on the suspension insulator.
The ability to overcome the pin insulator’s limitation capacity is the main reason why suspension insulators are preferred for most transmission lines. Of course, you have to keep in mind all other technical and non-technical factors before deciding whether to use a pin insulator or suspension insulator.
Glass Suspension Disc Insulators Specification
|
Product name and specification model |
Voltage level(KV) | Product name and specification model | Voltage level(KV) | ||
| Stain resistant type | Disc insulator U70BLP | 10KV-330KV | Standard type | Disc insulator U40B | 10KV-66KV |
| Disc insulator U70BLP1 | 10KV-330KV | Disc insulator U70BS | 10KV-330KV | ||
| Disc insulator U70BLP2 | 10KV-330KV | Disc insulator U70BL | 10KV-330KV | ||
| Disc insulator U80BLP | 10KV-330KV | Disc insulator U100BS | 10KV-330KV | ||
| Disc insulator U80BLP1 | 10KV-330KV | Disc insulator U100BL | 10KV-330KV | ||
| Disc insulator U100BLP | 10KV-330KV | Disc insulator U120B | 10KV-330KV | ||
| Disc insulator U100BLP1 | 10KV-330KV | Disc insulator U160BS | 10KV-500KV | ||
| Disc insulator U100BLP2 | 10KV-330KV | Disc insulator U160BM | 10KV-500KV | ||
| Disc insulator U120BP | 10KV-330KV | Disc insulator U160BL | 10KV-500KV | ||
| Disc insulator U120BP1 | 10KV-330KV | Disc insulator U210B | 10KV-500KV | ||
| Disc insulator U120BP2 | 10KV-330KV | Disc insulator U240B | 10KV-500KV | ||
| Disc insulator U160BMP | 10KV-500KV | Disc insulator U300B | 10KV-500KV | ||
| Disc insulator U160BLP | 10KV-500KV | Disc insulator U420B | 10KV-500KV | ||
| Disc insulator U160BMP1 | 10KV-500KV | Disc insulator U530B | 10KV-1000KV | ||
| Disc insulator U160BLP1 | 10KV-500KV | Disc insulator U550B | 10KV-1000KV | ||
| Disc insulator U210BP | 10KV-500KV | dual umbrella type | Disc insulator U70BLD | 10KV-330KV | |
| Disc insulator U210BP1 | 10KV-500KV | Disc insulator U70BSD | 10KV-330KV | ||
| Disc insulator U240BP | 10KV-500KV | Disc insulator U100BLD | 10KV-330KV | ||
| Disc insulator U240BP1 | 10KV-500KV | Disc insulator U100BSD | 10KV-330KV | ||
| Disc insulator U240BP2 | 10KV-500KV | Disc insulator U120BLD | 10KV-330KV | ||
| Disc insulator U300BP | 10KV-500KV | Disc insulator U160BLD | 10KV-500KV | ||
| Disc insulator U300BP1 | 10KV-500KV | Disc insulator U160BSD | 10KV-500KV | ||
| Aerodynamic type | Disc insulator U70BSM | 10KV-330KV | Disc insulator U160BMD | 10KV-500KV | |
| Disc insulator U70BLM | 10KV-330KV | Disc insulator U210BD | 10KV-500KV | ||
| Disc insulator U100BSM | 10KV-330KV | Disc insulator U240BD | 10KV-500KV | ||
| Disc insulator U100BLM | 10KV-330KV | Ground type | Disc insulator U70C | 10KV-330KV | |
| Disc insulator U120BLM | 10KV-330KV | Disc insulator U70CN | 10KV-330KV | ||
| Disc insulator U160BSM | 10KV-500KV | Disc insulator U100C | 10KV-330KV | ||
| Disc insulator U160BMM | 10KV-500KV | Disc insulator U100CN | 10KV-330KV | ||
| Disc insulator U160BLM | 10KV-500KV | ||||
| Disc insulator U210BM | 10KV-500KV | ||||
| Disc insulator U240BM | 10KV-500KV | ||||
Power Line Insulators Application
Glass Disc Insulator is used on both the high-voltage and low voltage transmission lines. 1. Electric poles. 2. Generators. 3. Transformers. 4. Railway lines. 5. Electric motors.
