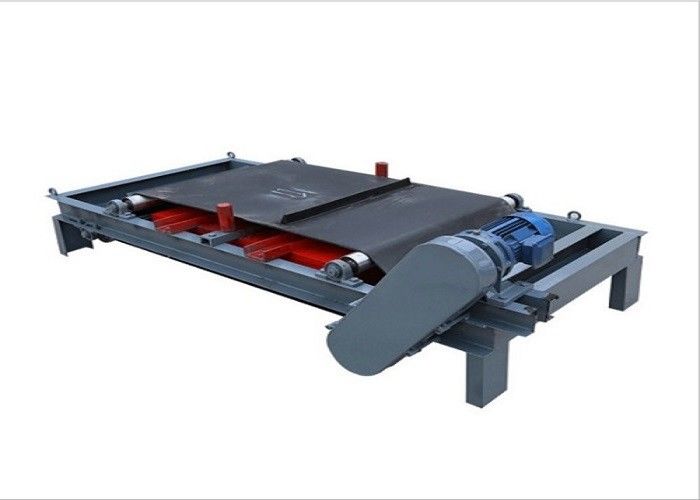

RCYB-G Series Super Strong Permanent Magnet Iron Remover De-Ironing Seperating Machine
Product Description
RCYD(C)-G series super strong permanent magnet self-unloading iron remover. It has a high removal rate of ferromagnetic impurities in ultra-thick materials. It can operate without trouble in various harsh environments. It is widely used in coal mining, thermal power generation, cement, building materials and other industries.
Product Feature
1. The magnetic circuit is designed by computer simulation and has a perfect double magnetic pole structure.
2. High-performance NdFeB material is used as the magnetic source. High coercive force. High magnetic field strength and strong suction.
3. Automatic iron unloading. It is easy to maintain. The transmission roller adopts a waist-drum structure and has the function of automatic belt deviation correction. Dust-proof bearing seat. The whole machine has a low mechanical failure rate.
4. Energy saving and wide application range.
Product Parameter
|
bandwidth mm |
Rated lifting height h=mm |
speed ≤m/s |
Magnetic field strength mT |
Driving power W |
Outside dimensions mm |
Hanging size mm D×E |
weight kg |
||||
| A | B | C | |||||||||
| RCYD(C)-6 | G1 | 650 | 200 | 4.5 | 90 | 2.2 | 2160 | 795 | 1075 | 1200×890 | 1300 |
| G2 | 120 | 2,2 | 2160 | 795 | 1075 | 1200×890 | 1420 | ||||
| G3 | 150 | 2.2 | 2350 | 795 | 1275 | 1300× 1088 | 1750 | ||||
| RCYD(C)-8 | G1 | 800 | 250 | 90 | 2.2 | 2350 | 795 | 1280 | 1300×1090 | 1920 | |
| G2 | 120 | 2.2 | 2350 | 795 | 1280 | 1300×1090 | 2180 | ||||
| G3 | 150 | 2,2 | 2660 | 940 | 1530 | 1300×1090 | 2820 | ||||
| RCYD(C)-10 | 1000 | 300 | 90 | 3,0 | 2660 | 950 | 1540 | 1400×1335 | 2350 | ||
| G2 | 120 | 3.0 | 2660 | 950 | 1540 | 1400×1335 | 2700 | ||||
| G3 | 150 | 4,0 | 2900 | 950 | 1730 | 1400×1335 | 2680 | ||||
| RCYD(C)-12 | G1 | 1200 | 350 | 90 | 4.0 | 2900 | 970 | 1730 | 1600×1515 | 3250 | |
| G2 | 120 | 4,0 | 2900 | 970 | 1730 | 1600×1515 | 4100 | ||||
| G3 | 150 | 5,5 | 3225 | 970 | 2005 | 1600×1515 | 5150 | ||||
| RCYD(C)-14 | G1 | 1400 | 400 | 90 | 4.0 | 3225 | 970 | 2005 | 1900×1750 | 4800 | |
| G2 | 120 | 5,5 | 3225 | 970 | 2005 | 1900×1750 | 5600 | ||||
| G3 | 150 | 5.5 | 3420 | 1180 | 2210 | 1900×1750 | 7450 | ||||
| RCYD(C)-16 | GI | 1600 | 450 | 90 | 5,5 | 3420 | 1180 | 2210 | 2000×1940 | 6200 | |
| G2 | 120 | 5,5 | 3420 | 1180 | 2210 | 2000×1940 | 7750 | ||||
| G3 | 150 | 7.5 | 3520 | 1250 | 2360 | 2000×1940 | 8038 | ||||
| RCYD(C)-18 | G1 | 1800 | 500 | 90 | 7.5 | 3625 | 1180 | 2400 | 2200×2180 | 8500 | |
| G2 | 120 | 7.5 | 3625 | 1180 | 2400 | 2200×2180 | 10850 | ||||
| G3 | 150 | 11.0 | 3980 | 1250 | 2650 | 2200×2180 | 14800 | ||||
Our products are sold all over the world, you can rest assured.
