GX Or LS Series Vertical Screw Conveyor Vertical Auger Conveyor Vertical Spiral Conveyor
Product Description
Auger Screw Conveyor is a continuous conveying equipment that utilizes the forced feeding screw to rotate and convey materials. It is suitable for conveying powdery, granular and non-sticky materials vertically or at a large angle. It can lift/load powder or granules to a certain height.
Vertical Screw Feeder as a material handling equipment, can be widely used in a number of industries like building material, metallurgy, chemical, coal, and grain food processing. To be specific, it can be served as powder conveyor, granule conveyor, pellet conveyor and small lump conveyor, and can be used for transferring materials like sand, lime, cement, coal powder, fertilizer, animal feed, grain, sugar, spice, coffee etc.
Product Parameter
LS Series Vertical Spiral Conveyor
| Model | 200 | 250 | 315 | 400 | 500 |
| Diameter/mm | 200 | 250 | 315 | 400 | 500 |
| Screw pitch/mm | 200 | 250 | 315 | 355 | 400 |
| n | 100 | 90 | 80 | 71 | 63 |
| Q | 13 | 22 | 31 | 62 | 98 |
| n | 80 | 71 | 63 | 56 | 50 |
| Q | 10 | 18 | 24 | 49 | 78 |
| n | 63 | 56 | 50 | 45 | 40 |
| Q | 8 | 14 | 19 | 39 | 62 |
| n | 50 | 45 | 40 | 36 | 32 |
| Q | 6.2 | 11 | 15.4 | 31 | 50 |
GX Series Vertical Screw Conveyor
| Specification | Technical Performance | Drive Unit | Weight (kg) |
|||||
| Diameter | Length(m) |
Yield (cement) (tons/hour) |
Rotating speed (r/min) |
Reducer | Electric Motor | |||
| Model | speed Ratio | Model | Power (KW) |
|||||
| GX200 | ~10 | 9 | 60 | JZQ250 | 23.34 | Y90S-4 | 1.1 | 726 |
| GX200 | ~20 | 9 | 60 | JZQ250 | 23.34 | Y90L-4 | 1.5 | 1258 |
| GX250 | ~10 | 15.6 | 60 | JZQ250 | 23.34 | Y100L2-4 | 2.2 | 960 |
| GX250 | ~20 | 15.6 | 60 | JZQ250 | 23.34 | Y100L1-4 | 3 | 1750 |
| GX300 | ~10 | 21.2 | 60 | JZQ350 | 23.34 | Y100L2-4 | 3 | 1373 |
| GX300 | ~20 | 21.2 | 60 | JZQ350 | 23.34 | Y112M-4 | 4 | 2346 |
| GX400 | ~10 | 51 | 60 | JZQ400 | 23.34 | Y132S-4 | 5.5 | 1911 |
| GX400 | ~20 | 51 | 60 | JZQ500 | 23.34 | Y160M-4 | 11 | 2049 |
| GX500 | ~10 | 87.5 | 60 | JZQ400 | 23.34 | Y132M-4 | 7.5 | 2381 |
| GX500 | ~20 | 87.5 | 60 | JZQ650 | 23.34 | Y180M-4 | 18.5 | 5389 |
| GX600 | ~10 | 134.2 | 45 | JZQ750 | 23.34 | Y180L-4 | 22 | 3880 |
| GX600 | ~10 | 134.2 | 45 | JZQ850 | 23.34 | Y250M-4 | 55 | 7090 |
Product Types
1) Different materials: Carbon Steel Stainless Steel
Carbon Steel Vertical Screw Conveyor: mainly used in cement, coal, stone and other industries with large wear and no special requirements for hygiene.
Stainless Steel Vertical Screw Conveyor: suitable for industries such as grain, chemical industry, food and other industries that have requirements on the conveying environment, high cleanliness, no pollution to materials, long use time, and relatively high cost.
2) Driving method: Single Motor Drive or Dual Motor Drive
Single motor drive: When the motor power is less than or equal to 15Kw, the single drive type is adopted.
Dual motor drive: When the motor power is greater than 15Kw, the dual drive type is adopted.

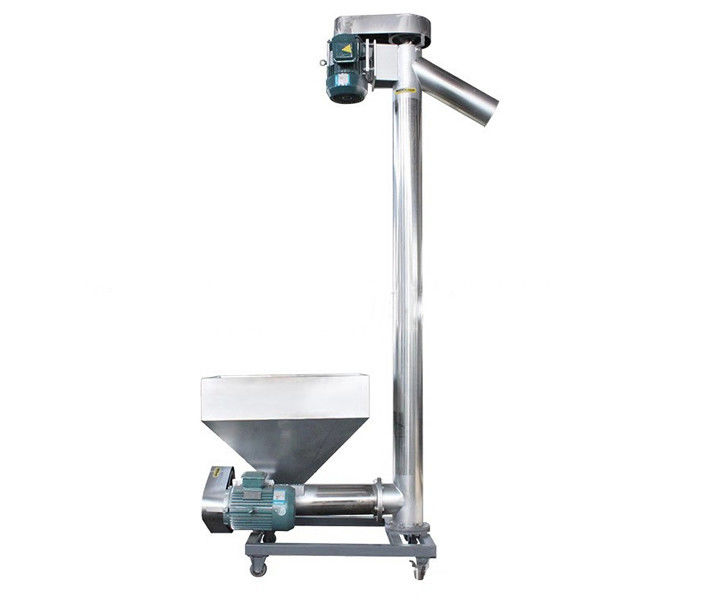

Product Image
Our products are sold all over the world, you can rest assured.
