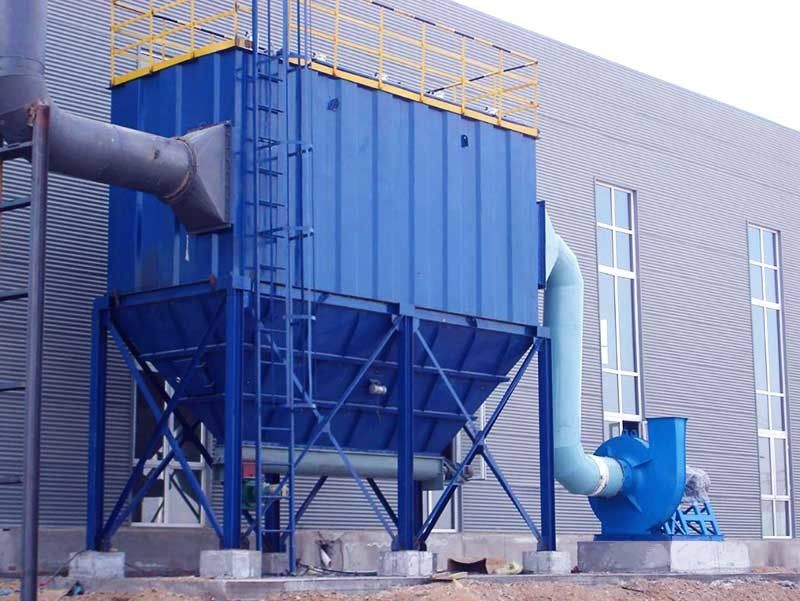

HD Industrial Bag House Dust Collector For Cement Mining Metal Melting
Product Description:
HD Bag House Dust Collector is designed for dust removal of the storage house roof and bottom, belt conveyor and local dust source in cement plant, has the advantages of small volume, good ability to handle air volume, compact structure, convenient and reliable use. Baghouse Dust Collector System is widely applied in the cement industry, and also has good dedusting effect in the foundry industry, ceramic industry, glass industry, grinding wheel manufacturing, chemical products, machinery processing, wood processing, etc.
Performance Parameters:
| Model | HD24(A.B.C) | HD32(A.B.C) | HD48(A.B.C) | HD56(A.B.C) | HD64(A.B.C) | HD64L(A.B.C) | HD80(A.B.C) |
| filter area m3 | 10 | 15 | 20 | 25 | 29 | 35 | 40 |
| filter bag number pcs | 24 | 32 | 48 | 56 | 64 | 64 | 80 |
| Filter bag specifications Φ*L | Φ115*1270 | Φ115*1270 | Φ115*1270 | Φ115*1270 | Φ115*1270 | Φ115*1535 | Φ115*1535 |
| Processing air volume m3/h | 824-1209 | 1401-1978 | 1978-2198 | 2198-3297 | 3572-3847 | 3912-5477 | 3912-5477 |
| Equipment resistance Pa | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 |
| Dust removal efficiency % | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 |
| Filter air volume /min | ＜2.5 | ＜2.5 | ＜2.5 | ＜2.5 | ＜2.5 | ＜2.5 | ＜2.5 |
| Fan power Kw | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 | 11 |
|
Cleaning motor power Kw |
0.25 | 0.25 | 0.25 | 0.37 | 0.37 | 0.37 | 0.55 |
| Fan motor model | Y-90L-2 | Y-100L-2 | Y-132S1-2 | Y-132S1-2 | Y-160S1-2 | Y-160M1-2 | Y-160M2-2 |
| Cleaning motor model | AO2-7114 | AO2-7114 | AO2-7114 | AO2-7124 | AO2-7124 | AO2-7124 | AO2-8014 |
| Type A weight ≈kg | 360 | 400 | 500 | 580 | 620 | 650 | 870 |
Operating Principle:
Dusty gas enters into the box from the inlet of the filter. After passing through the filter bag, dust is retained on the inner surface of the filter bag. The purified gas enters into the fan again through the filter bag, ultimately, is directly discharged from the fan outlet. With the increase of filtration time, dust adhering to the inner surface of the filter bag is increasing, and then the resistance of the filter bag increases accordingly, so as to affect dedusting effect. The automatic control deashing mechanism is used to regularly shake off dust, or the deashing machinery is manually controlled. After shut down, shake off the filter bag for tens of seconds, to make dust on the inner surface of the filter bag fall into the ash hopper and drawers, or directly fall on the conveyor belt.
Product Application:
* Cement Production
* Mining
* Metal Melting
* Powder Processing
* Material Handling
* Metals Fabrication: Grinding, Sawing, Sanding, Polishing
Our products are sold all over the world, you can rest assured.
