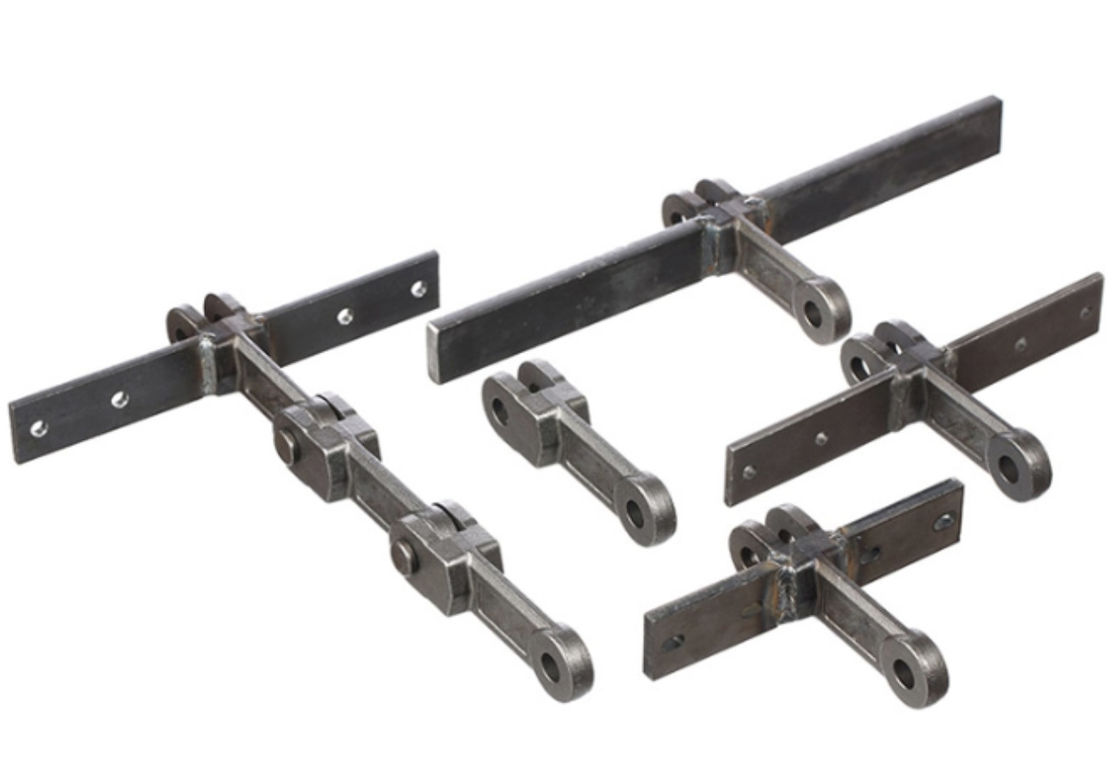

Fire Resistant Drop Forged Chain Scraper Conveyor Chains For Stacker Reclaimer
Description:
Scraper Conveyor Chains has high level of reliability and long service life, made of high quality steel that meets quality standards and has a proven breaking force of more than 200 kN. They are able to handle large volumes of materials at high temperatures and aggressive conditions, making them ideal for extreme production conditions.
Due to the special constructive solution of the scraper chains, they prevent the deposition of materials on the chain, ensuring reliable and uninterrupted movement along the entire length of the conveyor. This is especially important in production processes where precision and stability of transport are required.
In addition, Scraper Conveyor Chains can be quickly and easily adapted to a variety of tasks thanks to their modular design. This makes them flexible and convenient to use in various industries.
Application:
Stacker Reclaimer Chain is widely used in mines, power plants, coal yards, etc. It is used for stacking and conveying all kinds of granular meterials and metal raw are materials, etc.
Parameter:
| Model | Pitch |
Inner Section width |
Roller Outer Diameter | Pin Diameter | Plate Chain Height | Vertical Plate Hole Height | Vertical Plate Hole Spacing | Vertical Plate Aperture |
| 1 | 250 | 55.2 | 95 | 28 | 75 | 110 | 180 | 25 |
| 2 | 250 | 55.2 | 95 | 28 | 75 | 120 | 180 | 25 |
| 3 | 250 | 50 | 70 | 19.7 | 50 | 110 | 180 | 21 |
| 4 | 250 | 58 | 80 | 25.5 | 60 | 115.2 | 180 | 21 |
| 5 | 315 | 54.7 | 120 | 36 | 85 | 110 | 200 | 25 |
| 6 | 250 | 55.5 | 70 | 20 | 60 | 120 | 190 | 25 |
| Model | Pitch |
Inner Section width |
Roller Outer Diameter | Pin Diameter | Plate Chain Height | Platform Height | Lateral distance | Accessory hole spacing | Accessory hole spacing |
| 1 | 250 | 55.2 | 95 | 28 | 75 | 125 | 100 | 100 | 25 |
| 2 | 250 | 46 | 95 | 25 | 72 | 106 | 100 | 100 | 26 |
| 3 | 250 | 42 | 85 | 21 | 63 | 90.75 | 100 | 100 | 21 |
| 4 | 250 | 57.2 | 50.8 | 24 | 63.5 | 70 | 40 | 40 | 14 |
| 5 | 250 | 42 | 42 | 21 | 62 | 90 | 100 | 100 | 21 |
| 6 | 250 | 48 | 100 | 25 | 70 | 85 | 120 | 120 | 17 |
| 7 | 315 | 62 | 100 | 30 | 89 | 94.5 | 105 | 105 | 18.5 |
| 8 | 400 | 65 | 120 | 40 | 100 | 125 | 140 | 140 | 26 |
Our offered product range is made available in different shapes, sizes and capacities to meet the varied needs of the market. These Reclaimer Chains are fabricated using high grade raw material that is sourced from the most certified vendors of the industry.
Our products are sold all over the world, you can rest assured.
