RCYD(C)-C Series Suspension Self-Unloading Permanent Magnet Iron Remover De Ironing Separator
Product Overview
The RCYD(C) series suspended self discharge permanent magnet iron remover is an automatic iron-unloading iron removal device. It is based on the strong magnetic permanent magnet iron remover and adds a reducer, iron-unloading belt, roller, main frame and other devices. . During operation, the ferromagnetic substances continuously adsorbed on the iron remover are automatically thrown out through the rotation of the iron removal belt to achieve the purpose of automatic iron removal. This model has a wide range of applications, is energy-saving, easy to maintain, and has an extremely low failure rate. It operates stably and reliably in extremely harsh environments, and is a model widely used by many manufacturers.
Product Feature
1. The magnetic circuit is designed by computer simulation and has a perfect double magnetic pole structure.
2. Using high-performance NdFeB material as the magnetic source, it has high coercivity, high magnetic field strength and strong suction.
3. Automatic iron unloading. Easy maintenance. Wide range of applications.
4. The transmission drum adopts a waist-drum structure, has the function of automatic belt deviation correction, and has a dust-proof bearing seat. The whole machine has low mechanical failure.

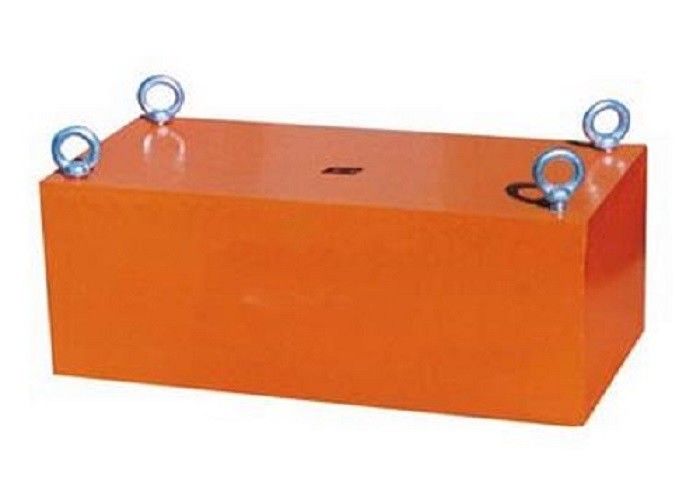

Product Image
Product Specification
|
Width mm |
Rated lifting height h=mm | Material thickness ≤mn |
Magnetic field strength mT |
Power ≤kw | Speed ≤m//s | work system | Weightkg |
Outside Dimensions mm |
|||||
| A | B | C | D | E | |||||||||
| RCYD(C)-5 | 500 | 150 | 100 | 63 | 1.5 | 2.5 | continuous | 750 | 1900 | 910 | 735 | 740 | 950 |
| RCYD(C)-6 | 600/650 | 180 | 130 | 63 | 1.5 | 920 | 2050 | 1010 | 780 | 840 | 1100 | ||
| RCYD(C)-6.5 | 650 | 200 | 150 | 70 | 1.5 | 1200 | 2165 | 1060 | 780 | 890 | 1200 | ||
| RCYD(C)-8 | 800 | 250 | 200 | 70 | 2.2 | 1400 | 2350 | 1210 | 796 | 1045 | 1300 | ||
| RCYD(C)-10 | 1000 | 300 | 250 | 70 | 3.0 | 2120 | 2660 | 1400 | 920 | 1245 | 1500 | ||
| RCYD(C)-12 | 1200 | 350 | 300 | 70 | 4.0 | 3350 | 2860 | 1650 | 1010 | 1450 | 1700 | ||
| RCYD(C)-14 | 1400 | 400 | 350 | 70 | 4.0 | 4450 | 3225 | 1850 | 1050 | 1655 | 1900 | ||
| RCYD(C)-16 | 1600 | 450 | 400 | 70 | 5.5 | 6200 | 3350 | 2050 | 1180 | 1855 | 2100 | ||
| RCYD(C)-18 | 1800 | 500 | 450 | 80 | 5.5 | 8100 | 3580 | 2250 | 1210 | 2055 | 2300 | ||
| RCYD(C)-20 | 2000 | 550 | 500 | 80 | 7.5 | 9700 | 3800 | 2450 | 1300 | 2255 | 2500 | ||
