Heat Resistant High Speed High Angle Conveyor Belt High Angle Conveyor Mining

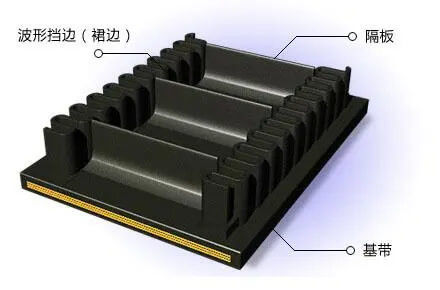

Product Component:
1. High-strength and wear-resistant base belt with greater lateral stiffness and longitudinal flexibility.
2. High strength hot vulcanized rubber corrugated ribs.
3. Transverse partitions to prevent objects from sliding down.
Product Parameter:
| Model | Height (mm) | Top width (mm) | Shoulder width (mm) | Pitch (mm) | Thickness (mm) | Minimum drum diameter(mm) |
| Light (N) | 60 | 44 | 50 | 42 | 6 | 200 |
| 80 | 44 | 50 | 42 | 6 | 200 | |
| 100 | 44 | 50 | 42 | 6 | 250 | |
| 120 | 44 | 50 | 42 | 6 | 315 | |
|
Medium (S) |
160 | 66 | 75 | 63 | 8 | 400 |
| 200 | 66 | 75 | 63 | 8 | 500 | |
| 240 | 66 | 75 | 63 | 8 | 630 | |
|
Heavy (ES)
|
300 | 88 | 100 | 84 | 10 | 800 |
| 400 | 88 | 100 | 84 | 10 | 1000 | |
| 500 | 110 | 125 | 125 | 10 | 1200 | |
| 630 | 110 | 125 | 125 | 10 | 1600 |
| Model | Height(mm) | Shoulder Width (mm) | Minimum drum diameter(mm) | With waveform height(mm) |
| TC | 75 | 80 | 200 | 80 |
| 110 | 110 | 315 | 120 | |
| 140 | 140 | 400 | 160 | |
| 180 | 180 | 500 | 200 | |
| 220 | 220 | 630 | 240 | |
| 280 | 226 | 800 | 300 | |
| 360 | 226 | 1000 | 400 | |
| 460 | 226 | 1200 | 500 | |
| 580 | 226 | 1600 | 630 |
Note: The maximum length of the company's diaphragm is 1m, but the actual effective width of the diaphragm used should be determined according to the actual width of the base tape and the empty edge.
Product Image
Product Application:
1. Mining Industry: High Angle Conveyors are extensively used in the mining industry for transporting coal, ore, minerals, and other bulk materials from underground mines or open-pit mines to processing plants or stockpiles. These belts are particularly beneficial in situations where the terrain is steep or uneven.
2. Construction and Aggregates: In the construction industry, High Angle Conveyors are employed for the efficient handling of construction aggregates such as sand, gravel, crushed stone, and concrete. These belts are suitable for conveying materials up steep inclines, such as in quarrying operations or when loading trucks or hoppers at construction sites.
3. Cement Plants and Power Generation: High Angle Conveyors are used in cement plants and power generation facilities to transport materials such as limestone, clinker, coal, and fly ash. These belts can handle the vertical movement of materials within the production process, such as lifting materials to high levels for storage or feeding into kilns or boilers.
4. Recycling and Waste Management: In recycling plants and waste management facilities, High Angle Conveyors are utilized for the efficient handling of various types of waste materials. These belts are suitable for vertical or inclined transportation of materials like municipal solid waste, construction debris, scrap metal, and recyclable materials.
5. Port and Terminal Facilities: High Angle Conveyors are utilized in port and terminal facilities for efficient bulk material handling. These belts can transport commodities such as coal, grain, fertilizers, and ores from ships to storage facilities or from storage to loading/unloading points.
Our products are sold all over the world, you can rest assured.
