Wear Resistant Steep Angle Conveyor Belt High Angle Conveyor System
Product Feature
1. Sidewalls: The most distinctive feature of these belts is the corrugated sidewalls that are attached to the base belt. These sidewalls are flexible and can be produced in various heights and angles, allowing the belt to effectively contain and transport bulk materials on steep inclines or vertical conveyors.
2. Cleats or Flights: Steep Angle Belt Conveyor often include cleats or flights that are integrally molded with the sidewalls. These cleats provide additional support and assist in maintaining the stability of the conveyed material during incline or vertical transportation. The shape and height of the cleats can be customized to suit specific application requirements.
3. Increased Conveying Angle: The presence of corrugated sidewalls enables the belt to operate at steeper inclines compared to conventional flat belts. This increased conveying angle allows for efficient material handling in situations where space may be limited or where elevation changes are required.
4. High Tensile Strength: Steep Angle Belt Conveyors are typically constructed with high-quality fabric or steel cord reinforcement, providing them with excellent tensile strength and load-bearing capacity. This strength allows the belt to withstand heavy loads and maintain stability during vertical or steep incline conveying.
5. Versatility: These belts are suitable for a wide range of industries and applications. They are commonly used in industries such as mining, cement, recycling, agriculture, and bulk material handling, where steep incline or vertical conveying is required. Corrugated sidewall conveyor belts can handle various materials, including bulk solids, granules, powders, and wet or sticky materials.
6. Customization Options: Steep Angle Belt Conveyors can be customized to meet specific application requirements. This includes selecting the appropriate sidewall height, cleat design, belt width, and belt material based on factors such as the conveyed material, conveyor configuration, and operational conditions.
Product Parameter:
| Model | Height (mm) | Top width (mm) | Shoulder width (mm) | Pitch (mm) | Thickness (mm) | Minimum drum diameter(mm) |
| Light (N) | 60 | 44 | 50 | 42 | 6 | 200 |
| 80 | 44 | 50 | 42 | 6 | 200 | |
| 100 | 44 | 50 | 42 | 6 | 250 | |
| 120 | 44 | 50 | 42 | 6 | 315 | |
|
Medium (S) |
160 | 66 | 75 | 63 | 8 | 400 |
| 200 | 66 | 75 | 63 | 8 | 500 | |
| 240 | 66 | 75 | 63 | 8 | 630 | |
|
Heavy (ES)
|
300 | 88 | 100 | 84 | 10 | 800 |
| 400 | 88 | 100 | 84 | 10 | 1000 | |
| 500 | 110 | 125 | 125 | 10 | 1200 | |
| 630 | 110 | 125 | 125 | 10 | 1600 |
| Model | Height(mm) | Shoulder Width (mm) | Minimum drum diameter(mm) | With waveform height(mm) |
| TC | 75 | 80 | 200 | 80 |
| 110 | 110 | 315 | 120 | |
| 140 | 140 | 400 | 160 | |
| 180 | 180 | 500 | 200 | |
| 220 | 220 | 630 | 240 | |
| 280 | 226 | 800 | 300 | |
| 360 | 226 | 1000 | 400 | |
| 460 | 226 | 1200 | 500 | |
| 580 | 226 | 1600 | 630 |
Note: The maximum length of the company's diaphragm is 1m, but the actual effective width of the diaphragm used should be determined according to the actual width of the base tape and the empty edge.

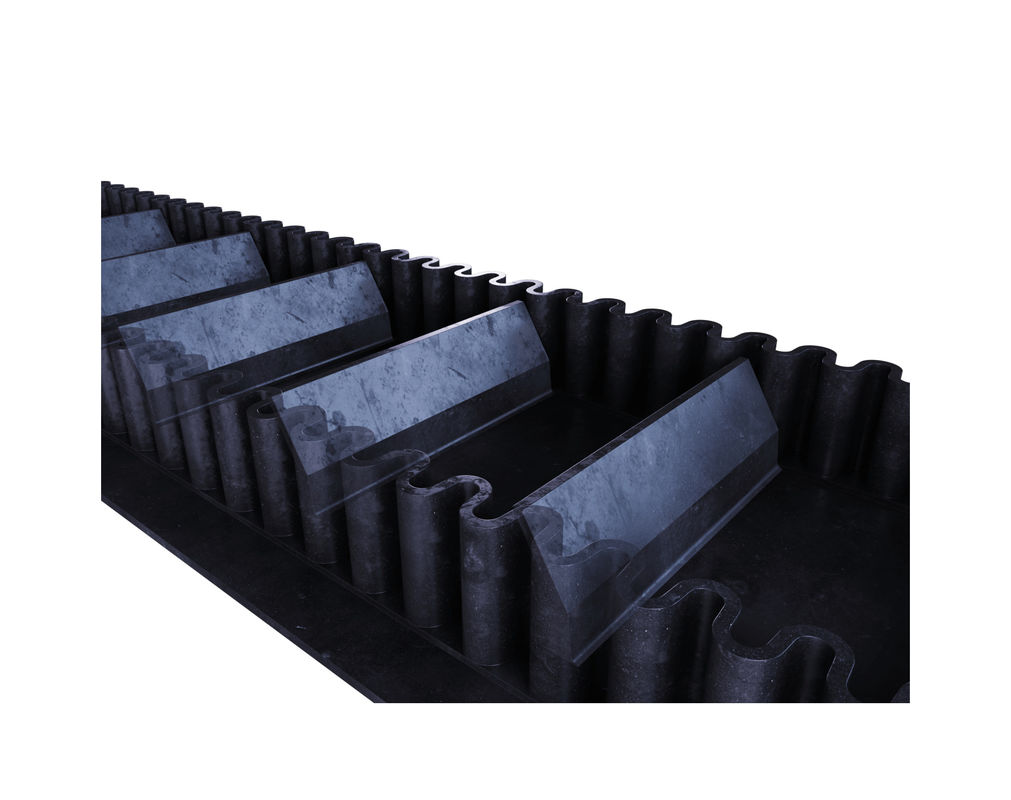

Product Image
