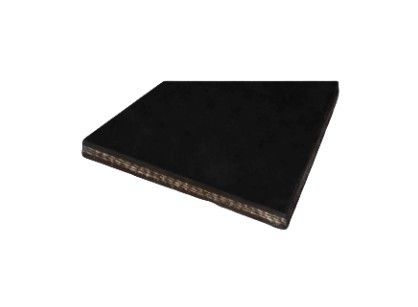

WS Polyester Conveyor Belt EP Fabric Conveyor Belt General Conveyor Belt In Mines Construction
Description:
Polyester Conveyor Belt, also known as EP Fabric Conveyor Belt, is widely used in industries such as mining, construction, agriculture, manufacturing, recycling, and more. They are suitable for transporting a wide range of materials, including bulk solids, loose powders, granules, and packaged goods at normal operating temperatures.
Feature:
1. High strength, thin belt body and light weight;
2. Use EP dipped canvas as the skeleton material;
3. The belt body is soft, has good troughing properties and good elasticity;
4. Impact resistance, wear resistance and corrosion resistance;
5. Suitable for material transportation with larger load capacity, faster speed and medium and long distances;
6. Smooth operation and no deviation.
Specification:
| Polyester Multi Ply Conveyor Belt Parameter | ||||||||||
| fabric type | fabric construction | Fabric model | Tape thickness | Strength series(N/mm) | Covering glue thickness(mm) | width range(mm) | ||||
| Longitude | latitude | 2层 | 3层 | 4层 | Cover glue | Lower cover glue | ||||
| polyester(EP) | polyester | Nylon | EP-80 | 1.00 | 160 | 240 | 320 | 0~12 | 0~10 | 300~6000 |
| EP-100 | 1.00 | 200 | 300 | 400 | ||||||
| EP-125 | 1.05 | 250 | 375 | 500 | ||||||
| EP-150 | 1.10 | 300 | 450 | 600 | ||||||
| EP-170 | 1.10 | 340 | 510 | 680 | ||||||
| EP-200 | 1.20 | 400 | 600 | 800 | ||||||
| EP-250 | 1.40 | 500 | 750 | 1000 | ||||||
| EP-300 | 1.60 | 600 | 900 | 1200 | ||||||
| EP-350 | 1.70 | 1050 | 1400 | |||||||
| EP-400 | 1.90 | 1600 | ||||||||
| EP-500 | 2.10 | 2000 | ||||||||
| Polyadhesive strength elongation performance compliance table | |||||
| Core material | between fabric layers N/mm | Between covering layer and cloth layerN/mm | Extended performance | ||
| Cover thickness≤1.5mm | Cover thickness≥1.5mm | Full thickness longitudinal tensile elongation at break | Full thickness longitudinal reference force elongation | ||
| polyester canvas | ≥5 | ≥4.5 | ≥5 | ≥10% | ≤4% |
| Tape cover properties | |||||
| Coverage level | Tensile Strength | Elongation at break | Amount of wear | Change rate of tensile strength and elongation at break after aging | |
| MPA | Kgf/cm2 | % | Mm3 | % | |
| H | 24 | 240 | 450 | 120 | -25~+25 |
| D | 18 | 180 | 400 | 100 | -25~+25 |
| L | 15 | 150 | 350 | 200 | -25~+25 |
