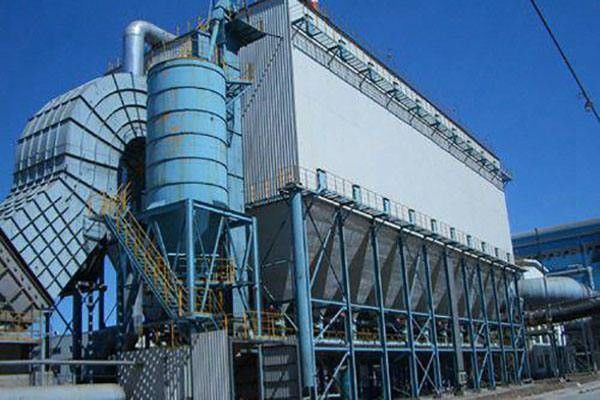

HD Series Heavy Duty Baghouse Dust Collector Industrial Dust Collection Systems
Product Description:
The HD series industrial baghouse dust collector has the remarkable features of compact structure, small size and high efficiency. It is a replacement product of the original HD89 series single bag dust collector. It has the advantages of reasonable process parameters and low energy consumption.
Main Technical Performance Parameters
| HD24(A.B.C) | HD32(A.B.C) | HD48(A.B.C) | HD56(A.B.C) | HD64(A.B.C) | HD64L(A.B.C) | HD80(A.B.C) | |
| filter area m3 | 10 | 15 | 20 | 25 | 29 | 35 | 40 |
| filter bag number pcs | 24 | 32 | 48 | 56 | 64 | 64 | 80 |
| Filter bag specifications Φ*L | Φ115*1270 | Φ115*1270 | Φ115*1270 | Φ115*1270 | Φ115*1270 | Φ115*1535 | Φ115*1535 |
| Processing air volume m3/h | 824-1209 | 1401-1978 | 1978-2198 | 2198-3297 | 3572-3847 | 3912-5477 | 3912-5477 |
| Equipment resistance Pa | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 |
| Dust removal efficiency % | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 |
| Filter air volume /min | ＜2.5 | ＜2.5 | ＜2.5 | ＜2.5 | ＜2.5 | ＜2.5 | ＜2.5 |
| Fan power Kw | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 | 11 |
|
Cleaning motor power Kw |
0.25 | 0.25 | 0.25 | 0.37 | 0.37 | 0.37 | 0.55 |
| Fan motor model | Y-90L-2 | Y-100L-2 | Y-132S1-2 | Y-132S1-2 | Y-160S1-2 | Y-160M1-2 | Y-160M2-2 |
| Cleaning motor model | AO2-7114 | AO2-7114 | AO2-7114 | AO2-7124 | AO2-7124 | AO2-7124 | AO2-8014 |
| Type A weight ≈kg | 360 | 400 | 500 | 580 | 620 | 650 | 870 |
Product Application:
* Cement production
* Powder processing
* Steel melting
* Material handling
* Primary metals, including steel-making
* Metals fabrication: grinding, sawing, sanding, polishing
* Paper making
* Mixing and blending options
* Mining
* Foundries
* Glass Plants
* Battery Plants
* Other industrial of management of dust in normal temperature
Our products are sold all over the world, you can rest assured.
