Dedusting Equipment PPCS Air Box Pulse Bag Filter Air Box Pulse Dust Collector 1.2-2.0m/Min
Product Description:
The PPCS Air Box Pulse Bag Dust Collector is an advanced high-efficiency dust collector imported from the American Fuller Company. It combines the advantages of various bag dust collectors such as divided chamber backflush and jet pulse dust cleaning, and overcomes the shortcomings of insufficient backflush cleaning intensity in divided chambers and simultaneous injection pulse dust cleaning and filtration, thereby expanding the application of bag dust collectors. range, because the structure of this type of dust collector has its own characteristics, it improves dust collection efficiency and extends the service life of the filter bag.

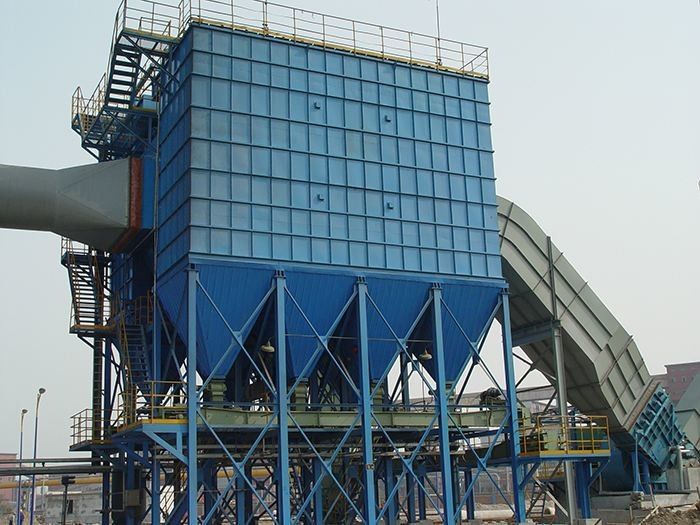

The PPCS Air Box Pulse Bag Filter is outdoor type and consists of various specifications with different numbers of chambers and different numbers of bags in each chamber. There are four types of bags per chamber: 32, 64, 96 and 128 bags. There are 33 specifications in the whole series. The diameter of the filter bag is φ 133mm, and the length of the filter bag is 2450mm and 3060mm.
The Air Box Pulse Dust Collector can operate under negative pressure or positive pressure without any changes to its body structure. Its dust collection efficiency can reach more than 99.9%, and the water content and dust concentration of the purified gas are less than 100mg/m. (standard).
The main technical performance of this series of dust collectors is shown in the table. If this series of dust collectors is used in cold areas, when the calculated outdoor heating temperature is ≤ -25°C, a heating device needs to be added, and the casing of the dust collector must also be added. Insulation.
Product Specification:
|
PPCS 32-3 |
PPCS 32-4 |
PPCS 32-5 |
PPCS 32-6 |
PPCS 64-4 |
PPCS 64-5 |
PPCS 64-6 |
PPCS 64-7 |
PPCS 64-8 |
PPCS 96-5 |
PPCS 96-2*5 |
PPCS 128-6 |
PPCS 128-2*6 |
||
| Processing air volume (m3/h) | 6900 | 8930 | 11160 | 13390 | 17800 | 22300 | 26700 | 31200 | 35700 | 33400 | 67250 | 67300 | 134600 | |
| Filter wind speed (m/min) | 1.2-2.0 | |||||||||||||
| total filter area (m3) | 93 | 124 | 155 | 186 | 248 | 310 | 372 | 434 | 496 | 465 | 934 | 935 | 1869 | |
| Net filter area (m3) | 62 | 93 | 124 | 155 | 186 | 248 | 310 | 272 | 434 | 372 | 856 | 779 | 1713 | |
| Number of dust collector chambers(pcs) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | 5 | 10 | 6 | 12 | |
| filter bags number (pcs) | 96 | 128 | 160 | 192 | 256 | 320 | 384 | 448 | 512 | 480 | 960 | 768 | 1536 | |
| Dust collector resistance (Pa) | 1470-1770 | 1470-1770 | 1470-1770 | |||||||||||
| Imported gas dust concentration (g/m3) | ＜200 ＜1000 | ＜1300 | ＜1300 | |||||||||||
| Exported gas dust concentration (g/m3) | ＜0.1 | ＜1.0 | ＜0.1 | |||||||||||
|
pulse valve (With solenoid valve) |
number(pcs) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | 5 | 10 | 12 | 24 |
| Dimensions (inches) | 1½ | 2½ | 2½ | |||||||||||
|
Poppet valve (with cylinder) |
number(pcs) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | 5 | 10 | 6 | 12 |
| number(pcs)(mm) |
poppet valveφ460, cylinderφ63 |
poppet valveφ595,cylinderφ100 |
poppet valveφ725, cylinderφ100 |
poppet valveφ725, cylinderφ100 |
||||||||||
Note: The specific air volume can be specially designed and produced.
