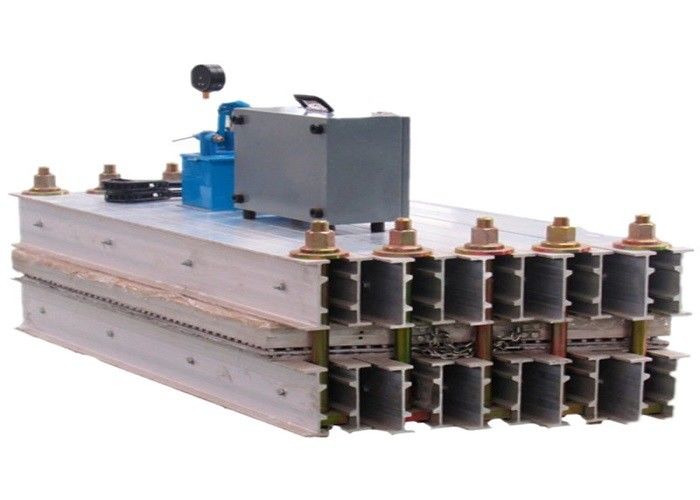

Automatic DGLJL Portable Conveyor Belt Vulcanizing Machine Vulcanizing Press
Product Description:
The DGLJL electric heating tape vulcanizing machine (hereinafter referred to as the vulcanizing machine) is small in size and light in weight. The ordinary three-phase power supply hydraulic system supplies uniform pressure (0~18Mpa). It is equipped with a lightweight fully automatic electric control box. The electric control box is connected with The connection of the host is completed by integrated plug-ins and multi-core cables, which are easy to operate and reliable in operation.
The DGLJL rubber belt vulcanizing machine is currently widely used in metallurgy, mining power plants, ports, building materials, chemical industry and other places where there are no explosive gases and harmful gases that can corrode metal. On-site vulcanization and bonding of nylon and steel rope core transportation tapes is also suitable for vulcanization joints of tapes with special properties such as anti-corrosion and heat resistance.
Product Parameter:
| Model | Vulcanized tape width | Specification | Heating plate size (mm) | Power | Dimensions (mm) | Weight |
| (mm) | (mm) | (kw) | (L×W×H) | (kg) | ||
| DGLJL-650 | 650 | 650×830 | 820×830 | 10.8 | 1322×830×585 | 440 |
| 650×1000 | 820×1000 | 13 | 1384×1000×585 | 530 | ||
| DGLJL-800 | 800 | 800×830 | 995×830 | 12.7 | 1492×830×585 | 515 |
| 800×1000 | 995×1000 | 15.4 | 1554×1000×585 | 630 | ||
| DGLJL-1000 | 1000 | 1000×830 | 1228×830 | 15 | 1692×830×585 | 600 |
| 1000×1000 | 1228×1000 | 18 | 1754×1000×585 | 715 | ||
| DGLJL-1200 | 1200 | 1200×830 | 1431×830 | 18.2 | 1922×830×750 | 800 |
| 1200×1000 | 1431×1000 | 22 | 1984×1000×750 | 912 | ||
| DGLJL-1400 | 1400 | 1400×830 | 1653×830 | 20.6 | 2142×830×750 | 885 |
| 1400×1000 | 1653×1000 | 24.6 | 2204×1000×750 | 1050 | ||
| DGLJL-1600 | 1600 | 1600×830 | 1867×830 | 22.8 | 2382×830×795 | 1130 |
| 1600×1000 | 1867×1000 | 27.2 | 2444×1000×795 | 1325 | ||
| DGLJL-1800 | 1800 | 1800×830 | 2079×830 | 25 | 2592×830×900 | 1420 |
| 1800×1000 | 2079×1000 | 30 | 2654×1000×900 | 1630 | ||
| DGLJL-2000 | 2000 | 2000×830 | 2303×830 | 27.4 | 2792×830×900 | 1560 |
| 2000×1000 | 2303×1000 | 33 | 2854×1000×900 | 1824 | ||
| DGLJL-2200 | 2200 | 2200×830 | 2478×830 | 30 | 2992×830×980 | 1720 |
| 2200×1000 | 2478×1000 | 36.2 | 3054×1000×980 | 2030 |
