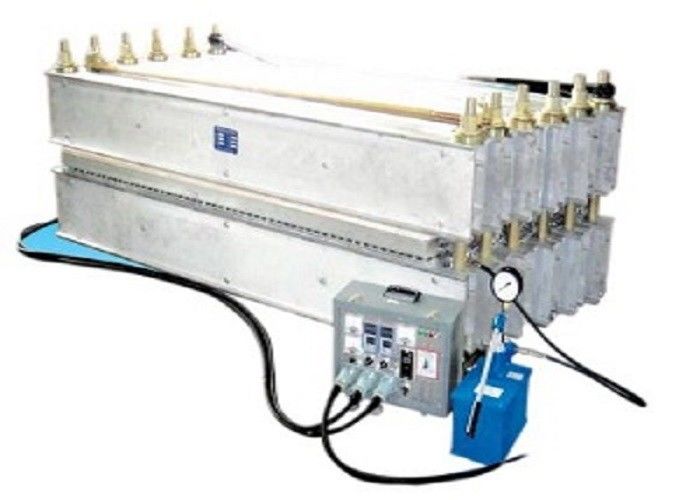

Rubber Belt Vulcanizing Machine Water Cooling Electrical Rubber Conveyor Belt Vulcanizing Press
Product Description
The Rubber Belt Vulcanizing Machine places the rubber product in the vulcanizing chamber under high temperature and high pressure conditions, causing the vulcanizing agent in the vulcanizing agent to chemically react with the rubber, thereby vulcanizing the rubber material and enhancing its elasticity, wear resistance and aging resistance.
Product Parameter
| Model | Vulcanized tape width | Specification | Heating plate size (mm) | Power | Dimensions (mm) | Weight |
| (mm) | (mm) | (kw) | (长×宽×高) | (kg) | ||
| DGLJL-1-650 | 650 | 650×830 | 820×830 | 10.8 | 1322×830×585 | 440 |
| 650×1000 | 820×1000 | 13 | 1384×1000×585 | 530 | ||
| DGLJL-1-800 | 800 | 800×830 | 995×830 | 12.7 | 1492×830×585 | 515 |
| 800×1000 | 995×1000 | 15.4 | 1554×1000×585 | 630 | ||
| DGLJL-1-1000 | 1000 | 1000×830 | 1228×830 | 15 | 1692×830×585 | 600 |
| 1000×1000 | 1228×1000 | 18 | 1754×1000×585 | 715 | ||
| DGLJL-1-1200 | 1200 | 1200×830 | 1431×830 | 18.2 | 1922×830×750 | 800 |
| 1200×1000 | 1431×1000 | 22 | 1984×1000×750 | 912 | ||
| DGLJL-1-1400 | 1400 | 1400×830 | 1653×830 | 20.6 | 2142×830×750 | 885 |
| 1400×1000 | 1653×1000 | 24.6 | 2204×1000×750 | 1050 | ||
| DGLJL-1-1600 | 1600 | 1600×830 | 1867×830 | 22.8 | 2382×830×795 | 1130 |
| 1600×1000 | 1867×1000 | 27.2 | 2444×1000×795 | 1325 | ||
| DGLJL-1-1800 | 1800 | 1800×830 | 2079×830 | 25 | 2592×830×900 | 1420 |
| 1800×1000 | 2079×1000 | 30 | 2654×1000×900 | 1630 | ||
| DGLJL-1-2000 | 2000 | 2000×830 | 2303×830 | 27.4 | 2792×830×900 | 1560 |
| 2000×1000 | 2303×1000 | 33 | 2854×1000×900 | 1824 | ||
| DGLJL-1-2200 | 2200 | 2200×830 | 2478×830 | 30 | 2992×830×980 | 1720 |
| 2200×1000 | 2478×1000 | 36.2 | 3054×1000×980 | 2030 |
Product Application
1. Tire manufacturing: The vulcanizing machine is used to vulcanize tires to react the rubber with the vulcanizing agent to enhance the tire's elasticity, wear resistance and aging resistance.
2. Rubber product production: Vulcanizers are used to manufacture various rubber products, such as rubber tubes, rubber pads, rubber seals, etc. Through vulcanization, these rubber products can achieve better physical properties and durability.
3. Auto Parts: It is used to manufacture auto parts such as rubber seals, rubber gaskets, rubber components of suspension systems, etc. The vulcanization treatment of these parts improves their sealing performance, shock absorption and durability.
4. Cables and wires: Through vulcanization treatment, the rubber insulation layer can obtain excellent electrical resistance and aging resistance, ensuring the safe and reliable operation of cables and wires.
5. Shoemaking industry: The vulcanizing press is used to vulcanize rubber soles to improve the wear resistance and anti-slip properties of the soles.
Our Service
1. Overseas service and technical support can be supplied
2. We will get the machines dispatched within the stipulated time
3. 24 hours online service, immediate response to your request
4. Testing machine is available, make sure customer satisfied with machine's quality
5. Help customer to design, make drawing,accept OEM rubber machine
Our products are sold all over the world, you can rest assured.
