GX Type U Trough Screw Conveyor Automatic Auger Feeding System For Powder Granular
Product Feature
A. Large bearing capacity, safe and reliable.
B. Strong adaptability, easy installation and maintenance, long service life.
C. The machine is small in size, high speed, ensure rapid and uniform delivery
D. The discharging end is equipped with cleaning device. It has low noise, strong adaptability, flexible to in and out of the mouth
E. Sealing good and the shell is made of seamless steel tube, the end uses flange to connect each other into an organic whole.
Product Application
1. Ceramic industry: clay, silica, sand, polishing materials, etc.
2. Food industry: soybean, peanut, starch, milk powder, salt, sugar, etc.
3. Plastics industry: plastic powder, plastic particles, etc.
4. Wood industry:wood chips, wood sawing surface and byproducts, etc.
5. Environmental: the filter material, fly ash, fixed residue, waste, etc.
6. Agriculture:livestock feed, food, powder, etc.
Product Parameter
| Specification | Technical Performance | Drive Unit | Weight (kg) |
|||||
| Diameter | Length(m) |
Yield (cement) (tons/hour) |
Rotating speed (r/min) |
Reducer | Electric Motor | |||
| Model | speed Ratio | Model | Power (KW) |
|||||
| GX200 | ~10 | 9 | 60 | JZQ250 | 23.34 | Y90S-4 | 1.1 | 726 |
| GX200 | ~20 | 9 | 60 | JZQ250 | 23.34 | Y90L-4 | 1.5 | 1258 |
| GX250 | ~10 | 15.6 | 60 | JZQ250 | 23.34 | Y100L2-4 | 2.2 | 960 |
| GX250 | ~20 | 15.6 | 60 | JZQ250 | 23.34 | Y100L1-4 | 3 | 1750 |
| GX300 | ~10 | 21.2 | 60 | JZQ350 | 23.34 | Y100L2-4 | 3 | 1373 |
| GX300 | ~20 | 21.2 | 60 | JZQ350 | 23.34 | Y112M-4 | 4 | 2346 |
| GX400 | ~10 | 51 | 60 | JZQ400 | 23.34 | Y132S-4 | 5.5 | 1911 |
| GX400 | ~20 | 51 | 60 | JZQ500 | 23.34 | Y160M-4 | 11 | 2049 |
| GX500 | ~10 | 87.5 | 60 | JZQ400 | 23.34 | Y132M-4 | 7.5 | 2381 |
| GX500 | ~20 | 87.5 | 60 | JZQ650 | 23.34 | Y180M-4 | 18.5 | 5389 |
| GX600 | ~10 | 134.2 | 45 | JZQ750 | 23.34 | Y180L-4 | 22 | 3880 |
| GX600 | ~10 | 134.2 | 45 | JZQ850 | 23.34 | Y250M-4 | 55 | 7090 |

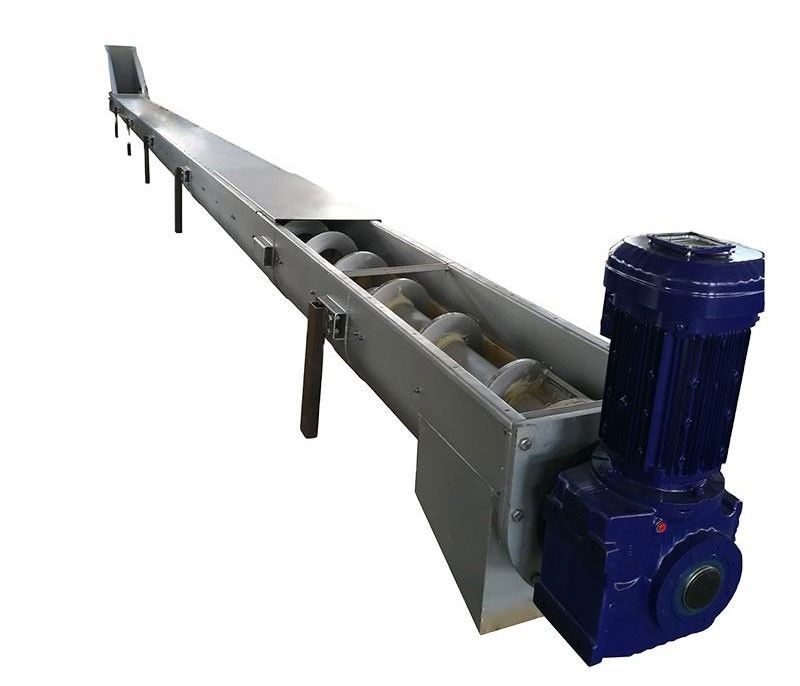

Product Image
Our products are sold all over the world, you can rest assured.
