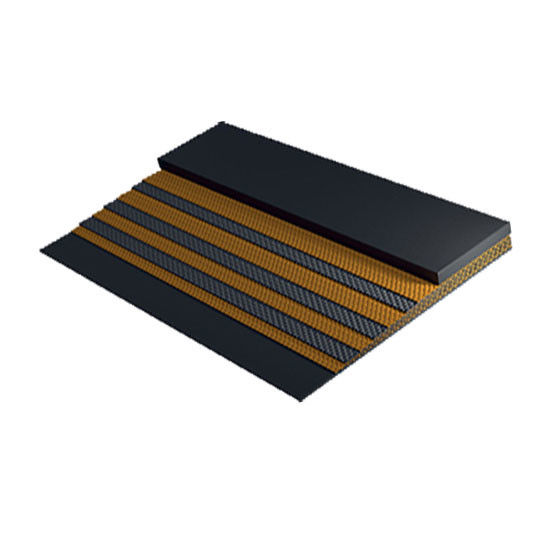

Polyester EP Conveyor Belt Nylon Rubber Conveyor Belt For Mine And Stone
Product Description:
EP Conveyor Belts, also called Polyester Conveyor Belts, whose tension resistant body is canvas woven by polyester in warp and nylon-66 in weft. The belts have the characteristics of low elongation in warp and good troughability in weft, good water resistance, good wet strength, no mould, suitable for medium long distance and heavy-load transportation of materials. Because of the high initial modulus of polyester, the belts can choose a relative low safety factor.
Specification:
| Polyester Multi Ply Conveyor Belt Parameter | ||||||||||
| Fabric Type | Fabric Construction | Fabric Model | Tape Thickness | Strength Series(N/mm) | Covering Glue Thickness(mm) | Width Range(mm) | ||||
| Longitude | Latitude | 2 Ply | 3 Ply | 4 Ply | Cover Glue | Lower Cover Glue | ||||
| Polyester(EP) | Polyester | Nylon | EP-80 | 1.00 | 160 | 240 | 320 | 0~12 | 0~10 | 300~6000 |
| EP-100 | 1.00 | 200 | 300 | 400 | ||||||
| EP-125 | 1.05 | 250 | 375 | 500 | ||||||
| EP-150 | 1.10 | 300 | 450 | 600 | ||||||
| EP-170 | 1.10 | 340 | 510 | 680 | ||||||
| EP-200 | 1.20 | 400 | 600 | 800 | ||||||
| EP-250 | 1.40 | 500 | 750 | 1000 | ||||||
| EP-300 | 1.60 | 600 | 900 | 1200 | ||||||
| EP-350 | 1.70 | 1050 | 1400 | |||||||
| EP-400 | 1.90 | 1600 | ||||||||
| EP-500 | 2.10 | 2000 | ||||||||
Common EP Conveyor Belt Type:
2 Ply Conveyor Belt: EP315/2 EP400/2 EP500/2 EP630/2 EP800/2
3 Ply Conveyor Belt: EP400/3 EP500/3 EP630/3 EP800/3 EP1000/3 EP1250/3
5 Ply Conveyor Belt: EP800/5 EP1000/5 EP1250/5 EP1600/5 EP2000/5
2 Ply Conveyor Belt:
| Belt | Cover gauge dDp in mm | Belt thickness dG in mm |
Area related belt mass with cover type m"G in kg/m2 with cover type | |
|---|---|---|---|---|
| Top side : Bottom side | X | Y | ||
| Data on the size parameter m"G apply only for the cover gauges as listed providing the range of tolerances: +1.7/−1.0 kg/m² | ||||
| EP 400/2 | 4 : 2 | 9.5 | 11.0 | 11.5 |
| EP 630/2 | 4 : 2 | 10.5 | 12.0 | 12.5 |
| EP 800/2 | 4 : 2 | 11.0 | 12.5 | 13.0 |
3 Ply Conveyor Belt:
|
Belt |
Cover gauge dDp in mm |
Belt thickness |
Area related belt mass with cover type m"G in kg/m2 with cover type |
|
|---|---|---|---|---|
|
Top side : Bottom side |
X |
Y |
||
|
Data on the size parameter m"G apply only for the cover gauges as listed providing the range of tolerances: +1.7/−1.0 kg/m² |
||||
|
EP 400/3 |
4 : 2 |
9.0 |
10.0 |
10.5 |
|
EP 500/3 |
6 : 3 |
12.0 |
13.5 |
14.0 |
|
EP 630/3 |
5 : 2 |
10.5 |
12.0 |
12.5 |
4 Ply Conveyor Belt:
|
Belt |
Cover gauge dDp in mm |
Belt thickness |
Area related belt mass with cover type m"G in kg/m2 with cover type |
|
|---|---|---|---|---|
|
Top side : Bottom side |
X |
Y |
||
|
Data on the size parameter m"G apply only for the cover gauges as listed providing the range of tolerances: +1.7/−1.0 kg/m² |
||||
|
EP 500/4 |
4 : 2 |
10.0 |
11.5 |
12.0 |
|
EP 630/4 |
6 : 3 |
13.0 |
15.0 |
15.5 |
|
EP 800/4 |
7 : 3 |
14.5 |
16.5 |
17.0 |
|
EP 1000/4 |
7 : 3 |
16.5 |
18.0 |
18.5 |
5 Ply Conveyor Belt:
| Belt | Cover gauge dDp in mm | Belt thickness dG in mm |
Area related belt mass with cover type m"G in kg/m2 with cover type | |
|---|---|---|---|---|
| Top side : Bottom side | X | Y | ||
| Data on the size parameter m"G apply only for the cover gauges as listed providing the range of tolerances: +1.7/−1.0 kg/m² | ||||
| EP 800/5 | 5 : 2 | 12.0 | 14.0 | 14.5 |
| EP 1000/5 | 6 : 3 | 14.5 | 17.0 | 17.5 |
| EP 1250/5 | 8 : 3 | 19.0 | 21.0 | 21.5 |
| EP 1600/5 | 10 : 3 | 22.0 | 25.0 | 25.5 |
Application:
