DT Series Plate Chain Bucket Elevator Universal Industries Bucket Elevator Carbon Steel
Product Description:
Universal Industries Bucket Elevator is used to vertically lift mashed limestone, coal, gypsum, clinker, dry clay and other block granular materials and raw materials, cement, pulverized coal, and other powder materials. According to the running speed of buckets, bucket elevators can be combined with centrifugal discharge type, gravity discharge type and mixed discharge type.
Centrifugal Discharge Bucket Elevator has a fast bucket speed and is suitable for conveying powdery, granular, small pieces and other abrasive materials; gravity unloading type has a slower bucket speed and is suitable for the lower section with a tensioning drum; mixing unloading type is suitable for conveying loose density ρ<1.5t/m3 powder.
The traction members of the bucket elevator have a chain, a NE plate chain bucket elevator, a plated chain, and a tape. The structure and manufacture of the chain are relatively simple, and the connection with the hopper is also very strong. When the material with large abrasiveness is conveyed, the wear of the chain is small, but its own weight is large. The structure of the plate chain is relatively firm and the weight is light. It is suitable for lifting hoists with large lifting capacity, but the hinged joint is easy to be worn. The temperature of the material transported by the chain and the chain can reach 250 °C.
Technical Parameters:
DT Series Bucket Elevator: consists of tail parts, middle trough, head parts, bucket chain components, and driving devices.
| Model | DT16 | DT25 | DT30 | DT40 | DT45 |
| Width(mm) | 160 | 250 | 300 | 400 | 450 |
| Distance(mm) | 203.2 | 304.8 | 304.8 | 304.8 | 400 |
| Capacity(L) | 1.2 | 3 | 5 | 8 | 20 |
| Conveying Capacity(m³/h) | 2-5 | 4-12 | 8-25 | 10-35 | 15-50 |
| Chain Speed(m/min) | 6-20 | ||||
| Chain Pitch(mm) | 101.6 | 152.4 | 152.4 | 152.4 | 200 |
| Chain Conveyor Form | Single Row | Single Row | Single Row |
Single Row, Double Row |
Single Row, Double Row |
| Lifting Height(m) | 5-20 | 5-25 | 6-30 | 8-40 | 8-40 |
| Motor Power(kw) | 1.5-4 | 2.2-5.5 | 4-7.5 | 4-11 | 5.5-18.5 |
| Drive Installation Type | Left and right installation | ||||
| Transmission Type | Chain Drive | ||||
| Applicable Granularity | ＜20 | ＜30 | ＜40 | ＜40 | ＜50 |
| Materials suitable for conveying | Bulk density p≤2t/m³ Powder, granular, small pieces with grindability, semi-grindability or no grindability, such as steelmaking dust, iron burning dust, cement, coal, boiler ash, etc. | ||||
| Applicable Humidity % | ≤10 | ||||
| Applicable Temperature ℃ | ≤200 | ||||

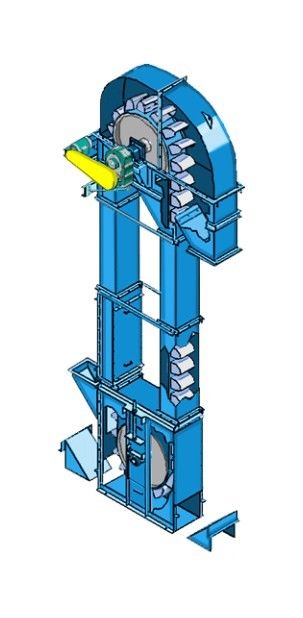

Product Image:
