TH Series Belt Type Bucket Elevator Stainless Steel Bucket Elevator
Product Description
Belt Type Bucket Elevator is a common material conveying equipment and is widely used in mining, building materials, chemical industry, metallurgy and other industries. It uses belts as traction devices to transport materials from low places to high places.
The main components of the Belt Bucket Elevator include: driving device, rollers, belts, buckets and frames. The driving device usually uses an electric motor, which transmits power to the belt through a reducer and a transmission device to drive the belt to run. The idler roller is installed on the frame to support and guide the movement of the belt. The bucket is fixed on the belt and used to load materials.
Product Parameters
| Model | TH315 | TH400 | TH500 | TH630 | ||||
| Width(mm) | 315 | 400 | 500 | 600 | ||||
| Distance (mm) | 512 | 512 | 688 | 688 | ||||
| Capacity (L) | zh | sh | zh | sh | zh | sh | zh | sh |
| 3.75 | 6 | 5.9 | 9.5 | 9.3 | 15 | 14.6 | 23.6 | |
| Conveying Capacity (m³/h) | 35 | 59 | 58 | 94 | 73 | 118 | 114 | 185 |
| Chain Speed(m/min) | 1.4 | 1.5 | ||||||
| Ring chain specifications (mm) | φ18*64 | φ18*64 | φ22*86 | φ22*86 | ||||
| Head sprocket diameter (mm) | 630 | 710 | 800 | 900 | ||||
| Lifting Height (m) | 6-40 | 6-40 | 7-40 | 7-40 | ||||
| Motor Power (kw) | 5.5-18.5 | 7.5-22 | 11-30 | 18.5-45 | ||||
| Drive Installation Type | Left and right installation | |||||||
| Transmission Type | Belt Drive | |||||||
|
Materials suitable for conveying |
Bulk density p≤1.5t/m³ Powder, granular, small pieces, non-grindable, semi-grindable, such as sand, fertilizer, cement, coal, boiler ash, etc. | |||||||
| Applicable Humidity % | ≤10 | |||||||
| Applicable Granularity | ＜40 | ＜40 | ＜50 | ＜70 | ||||
| Applicable Temperature ℃ | ≤250 | |||||||

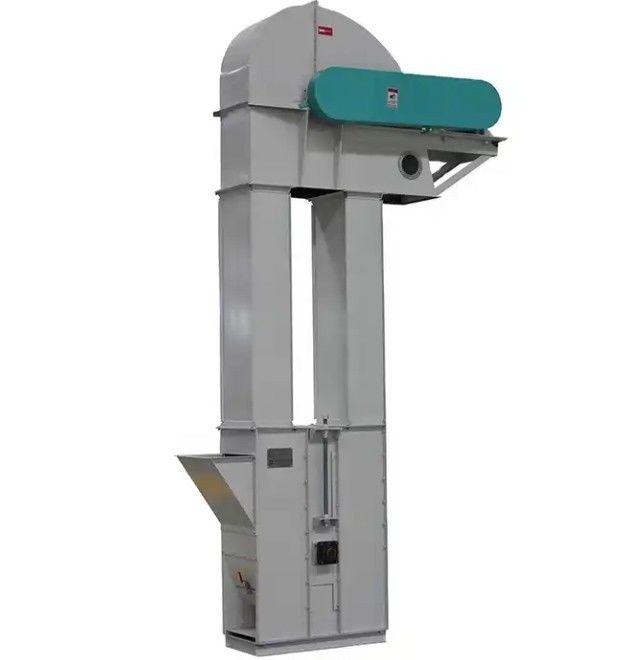

Product Image
Product Application
Wide scope of application: It can transport various bulk, powdery and small materials, such as coal, ore, limestone, cement, etc.
Our products are sold all over the world, you can rest assured.
