TD Series Bucket Elevator Z Type Bucket Elevator Conveyor For Powder Granules Or Flakes
Product Description
1) Multipoint feeding and multipoint unloading: The Z Type Bucket Elevator can customize multiple feeding ports or feeding ports according to the actual lifting needs to meet the needs of multiple silos or multiple feeding ports, and can easily connect with various types of feeding equipment.
2) High efficiency: It can be designed according to the customer's site. The vertical height is 5 meters to 50 meters. The double-machine parallel method can be used for those above 30 meters, which is suitable for the process needs of different industries.
3) Zero damage rate: Since the material slides into the hopper, it is not forced to scrape, so the material will not be broken.
4) Food grade requirements: The hopper is made of food grade reinforced polypropylene and is one piece molded to withstand temperatures no more than 200 ℃.
5) Sealing structure: The shell of the whole machine is closed, and the material leaks less during the operation of the machine, and at the same time, the flying of dust is reduced, which meets the requirements of environmental protection.
6) Small footprint: Because of its flexible and changeable composition, compact body and horizontal-vertical-horizontal conveying method, Z type elevator greatly reduces the situation that the equipment occupies a large area.
Product Parameters
TD Series Industrial Bucket Elevators : consists of tail parts, middle trough, head parts, conveyor belt, and driving device. Hoppers are divided into Q type (shallow hopper), H type (arc bottom hopper), AZD type (medium deep hopper) and ASD type (deep hopper).
| Model | TD160 | TD250 | TD400 | TD630 | |||||||||||
| Width(mm) | 160 | 250 | 400 | 630 | |||||||||||
| Capacity (L) | Q | H | ZD | SD | Q | H | ZD | SD | Q | H | ZD | SD | H | ZD | SD |
| 0.5 | 0.9 | 1.2 | 1.9 | 1.1 | 2.2 | 3 | 4.6 | 3.1 | 5.6 | 5.9 | 9.4 | 14 | 15 | 24 | |
| Conveying Capacity (m³/h) | 20 | 36 | 38 | 59 | 142 | 148 | 238 | ||||||||
| Drum Diameter(mm) | 350 | 500 | 650 | 800 | |||||||||||
| Width(mm) | 200 | 300 | 500 | 710 | |||||||||||
| Belt Speed(m/min) | 1.6 | 1.6 | 1.6 | 1.6 | |||||||||||
| Drum Speed(r/min) | 87 | 61 | 47 | 42 | |||||||||||
| Lifting Height(m) | 5-25 | 5-25 | 8-35 | 10-40 | |||||||||||
| Motor Power(kw) | 3-11 | 5.5-15 | 7.5-30 | 22-45 | |||||||||||
| Drive Installation Type | Left and right installation | ||||||||||||||
| Transmission Type | Belt Drive | ||||||||||||||
| Materials suitable for conveying | Bulk density p≤1.5t/m³ Powder, granular, small pieces, non-grindable, semi-grindable, such as lime, fertilizer, cement, coal, sand, grain, etc. | ||||||||||||||
| Applicable Humidity % | ≤10 | ||||||||||||||
| Applicable Granularity | ＜15 | ＜20 | ＜40 | ＜100 | |||||||||||
| Applicable Temperature ℃ | General ≤60, High Temperature ≤200 | ||||||||||||||
Product Types

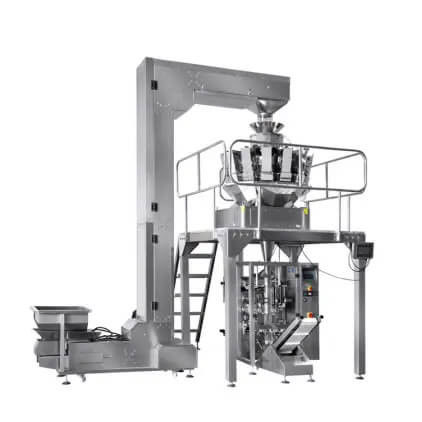

1. Multi Discharge Z Type Bucket Elevator
2-7 discharge ports are available, multiple inlets and multiple discharge points can be combined into one system to combine or separate product streams as needed, which can meet the continuous feeding of multiple silos in a row.

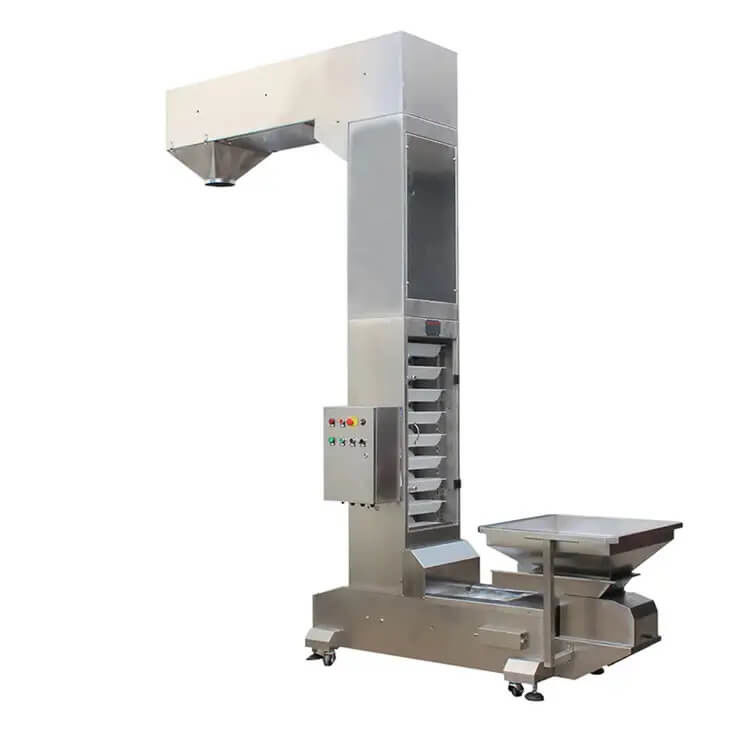

2. Stainless Steel Z Type Bucket Elevator
The casing is made of SUS304 stainless steel, PP plastic hopper, anti-corrosion, high temperature resistance, mainly used in chemical, plastic, grain, pet food, puffed food, food packaging and other industries.
Our products are sold all over the world, you can rest assured.
