TD Series Non Broken C Type Bucket Elevator Machine Carbon Steel
Product Description

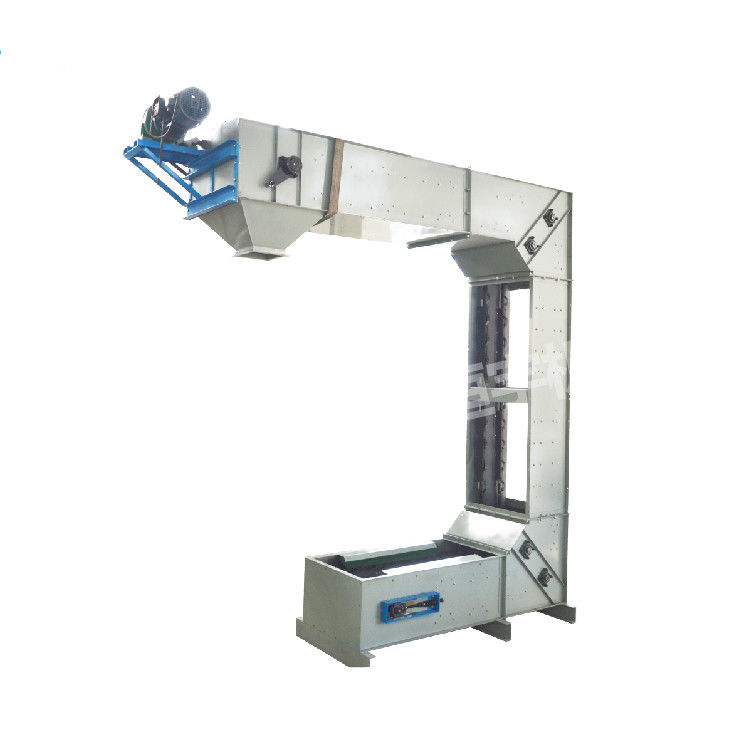

The Non Broken Elevator is used in the production line for convenient and cost effective transportation of materials. This elevator model as the name suggests comes with zero broken rate thanks to the transportation driven by chains or belts. This occurs at a slower speed as to prevent any contact between materials and the system. This product is applicable to hoisting a wide range of materials like sunflower seeds, kernels, grains, foods, herbal materials and other easily breakable materials. This product is used for both horizontal and vertical conveying of materials, and is compatible to work in the production line as a single unit or multiple units combined in to one that is suitable for more feeding or discharging. The height of lifting and length of horizontal delivery is customizable, and the structure can be built by steel - carbon or stainless.
Product Parameters
TD Series Bucket Elevator System: consists of tail parts, middle trough, head parts, conveyor belt, and driving device. Hoppers are divided into Q type (shallow hopper), H type (arc bottom hopper), AZD type (medium deep hopper) and ASD type (deep hopper).
| Model | TD160 | TD250 | TD400 | TD630 | |||||||||||
| Width(mm) | 160 | 250 | 400 | 630 | |||||||||||
| Capacity (L) | Q | H | ZD | SD | Q | H | ZD | SD | Q | H | ZD | SD | H | ZD | SD |
| 0.5 | 0.9 | 1.2 | 1.9 | 1.1 | 2.2 | 3 | 4.6 | 3.1 | 5.6 | 5.9 | 9.4 | 14 | 15 | 24 | |
| Conveying Capacity (m³/h) | 20 | 36 | 38 | 59 | 142 | 148 | 238 | ||||||||
| Drum Diameter(mm) | 350 | 500 | 650 | 800 | |||||||||||
| Width(mm) | 200 | 300 | 500 | 710 | |||||||||||
| Belt Speed(m/min) | 1.6 | 1.6 | 1.6 | 1.6 | |||||||||||
| Drum Speed(r/min) | 87 | 61 | 47 | 42 | |||||||||||
| Lifting Height(m) | 5-25 | 5-25 | 8-35 | 10-40 | |||||||||||
| Motor Power(kw) | 3-11 | 5.5-15 | 7.5-30 | 22-45 | |||||||||||
| Drive Installation Type | Left and right installation | ||||||||||||||
| Transmission Type | Belt Drive | ||||||||||||||
|
Materials suitable for conveying |
Bulk density p≤1.5t/m³ Powder, granular, small pieces, non-grindable, semi-grindable, such as lime, fertilizer, cement, coal, sand, grain, etc. | ||||||||||||||
| Applicable Humidity % | ≤10 | ||||||||||||||
| Applicable Granularity | ＜15 | ＜20 | ＜40 | ＜100 | |||||||||||
| Applicable Temperature ℃ | General ≤60, High Temperature ≤200 | ||||||||||||||
