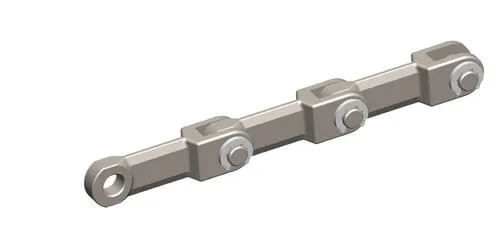

Carbon Steel Alloy Steel Stacker Reclaimer Chains Forged Chain Links
Description:
1. Scrapper Reclaimer Chain links are made from Medium Carbon or Alloy Steel. These links are subjected to operations like Blanking & fine boring, which are carried out on highly precision machines. The link hole size & finishing is controlled to suit adequate interference fit. Further links are hardened & tempered to avoid linear elongation, to get better impact strength followed by shot penning process to improve the fatigue strength.
2. Special Alloy Steel is used for Pins & Bushes with Case Carburized Hardening & Tempering process to get the maximum wear resistance & core strength.
3. These type of Scrapper Reclaimer Chains are also manufactured with “Out-Board” type Rollers.
4. Roller ID & OD with through hardening & further Induction Hardening is provided to get proper Case Depth to achieve maximum wear life.
5. Suitable attachments of various shape & size to accommodate scrappers are provided for proper scrapping of raw material.
Features:
1. A wide range of Reclaimer Chains for scrapping applications
2. Reclaimer Chains are extensively used in Cement and fertilizer applications
3. Reclaimer Chains with a variety of steel grades, which after heat treatment gives low coefficient of friction, high strength, durability and optimum output to the equipment
Parameter:
| Model | Pitch |
Inner Section width |
Roller Outer Diameter | Pin Diameter | Plate Chain Height | Vertical Plate Hole Height | Vertical Plate Hole Spacing | Vertical Plate Aperture |
| 1 | 250 | 55.2 | 95 | 28 | 75 | 110 | 180 | 25 |
| 2 | 250 | 55.2 | 95 | 28 | 75 | 120 | 180 | 25 |
| 3 | 250 | 50 | 70 | 19.7 | 50 | 110 | 180 | 21 |
| 4 | 250 | 58 | 80 | 25.5 | 60 | 115.2 | 180 | 21 |
| 5 | 315 | 54.7 | 120 | 36 | 85 | 110 | 200 | 25 |
| 6 | 250 | 55.5 | 70 | 20 | 60 | 120 | 190 | 25 |
| Model | Pitch |
Inner Section width |
Roller Outer Diameter | Pin Diameter | Plate Chain Height | Platform Height | Lateral distance | Accessory hole spacing | Accessory hole spacing |
| 1 | 250 | 55.2 | 95 | 28 | 75 | 125 | 100 | 100 | 25 |
| 2 | 250 | 46 | 95 | 25 | 72 | 106 | 100 | 100 | 26 |
| 3 | 250 | 42 | 85 | 21 | 63 | 90.75 | 100 | 100 | 21 |
| 4 | 250 | 57.2 | 50.8 | 24 | 63.5 | 70 | 40 | 40 | 14 |
| 5 | 250 | 42 | 42 | 21 | 62 | 90 | 100 | 100 | 21 |
| 6 | 250 | 48 | 100 | 25 | 70 | 85 | 120 | 120 | 17 |
| 7 | 315 | 62 | 100 | 30 | 89 | 94.5 | 105 | 105 | 18.5 |
| 8 | 400 | 65 | 120 | 40 | 100 | 125 | 140 | 140 | 26 |
Our offered product range is made available in different shapes, sizes and capacities to meet the varied needs of the market. These Reclaimer Chains are fabricated using high grade raw material that is sourced from the most certified vendors of the industry.
Our products are sold all over the world, you can rest assured.
