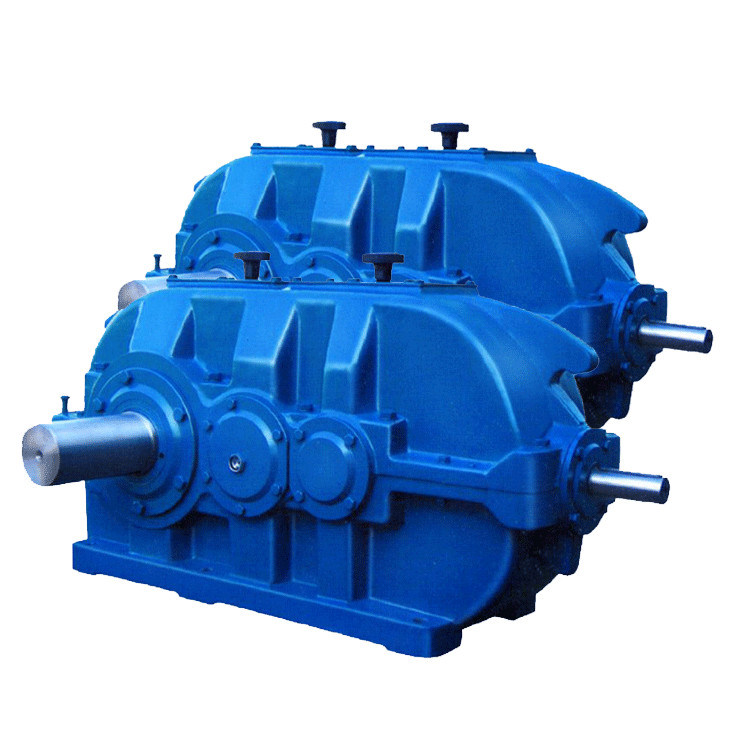

DBY DCY Series Cylindrical Gear Reducer Helical Bevel Speed Reducer Hard Tooth Surface

DBY DCY Series Cylindrical Gear Reducer Helical Bevel Speed Reducer Hard Tooth Surface

Overview

DBY type is a two-stage transmission hard tooth surface gear reducer; DCY type is a three stage transmission hard tooth surface gear reducer. The first stage transmission is Gleason spiral bevel gear, and the second and third stage transmissions are involute. Line cylindrical helical gear.
The reducer can be divided into four assembly types: I, II, III and IV according to the output shaft form. According to the rotation direction of the output shaft, it can be divided into clockwise (S) and counterclockwise (N). (facing the output shaft)

Feature


1. Professional Craftsmanship:

The product gears are made of high quality alloy steel through professional processes such as carburization and quenching, and the toooth surface has high hardness.

2. High Performance:

Large overall carrying capacity, high working efficiency, stable rotation, good reliability and low noise.

3. Stable Structure:

The whole body is made of high quality materials, with stable overall structure, compact design and installation, and light weight.

Working Principle

The maximum speed of the reducer input shaft is not greater than 1500r/min;
The gear peripheral speed is not greater than 20m/s;
The working environment temperature is -40~+45℃. When the ambient temperature is lower than 0℃, the lubricating oil should be heated before starting (an electric heating pipe is also provided).

Parameter
