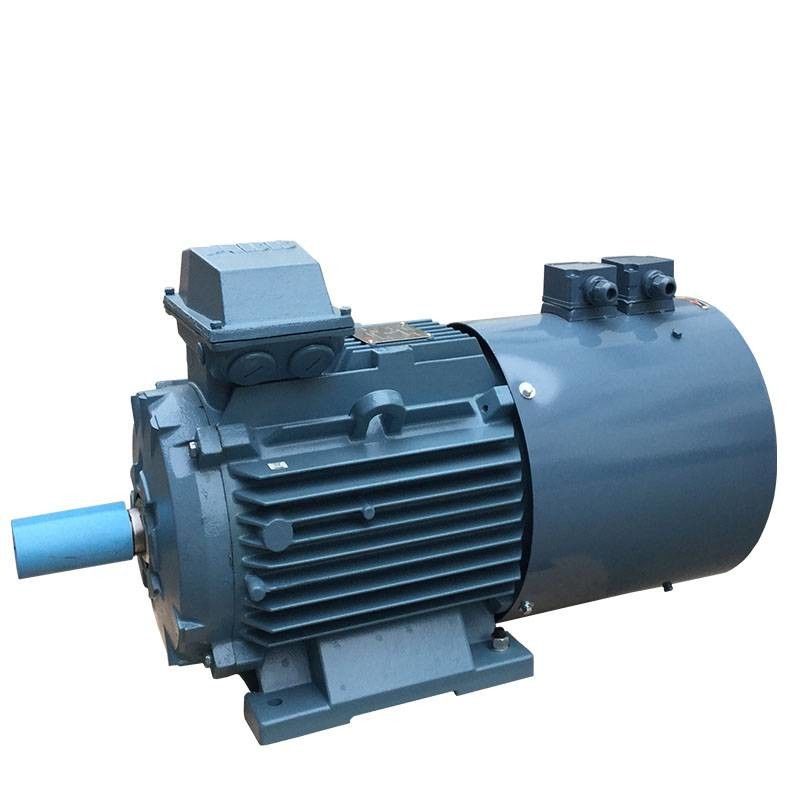

YE3 Series 3 Phase 2 Pole Induction Motor Asynchronous Electric Motor
3 Phase Asynchronous Induction Motor Features:
These series motors have many virtues, including beautiful profile, high efficiency and energy saving, class F insulated, the protective class is IP55, low noise, little vibration, running smoothly,.
3 Phase Asynchronous Induction Motor Applications:
General purpose including cutting machines, pumps, fans, conveyors, machines tools of farm duty and food process etc. Particularly suited to the OEM and Re-sale (Distribution) markets, this series provides an optimal balance between standard product features, reduced weight, rapid availability and competitive pricing.
2 Pole 3 Phase Induction Motor Specification:
|
型 号 Type |
功率 kW |
额定 电流 A |
转速 r/min |
效率 Eff.% |
功率 因数 P.F |
额定 转矩 N.m |
堵转转矩 额定转矩 Tst TN |
堵转电流 额定电流 Ist IN |
最大转矩 额定转矩 Tmax TN |
噪声 dB(A) |
| 同步转速 3000 r/min | ||||||||||
| YE3-63M1-2 | 0.18 | 0.53 | 2720 | 63.9 | 0.80 | 0.63 | 2.2 | 5.5 | 2.2 | 61 |
| YE3-63M2-2 | 0.25 | 0.70 | 2720 | 67.1 | 0.81 | 0.88 | 2.2 | 5.5 | 2.2 | 61 |
| YE3-71M1-2 | 0.37 | 1.0 | 2740 | 69.0 | 0.81 | 1.29 | 2.2 | 6.1 | 2.2 | 62 |
| YE3-71M2-2 | 0.55 | 1.4 | 2740 | 72.3 | 0.82 | 1.92 | 2.2 | 6.1 | 2.2 | 62 |
| YE3-80M1-2 | 0.75 | 1.7 | 2870 | 80.7 | 0.82 | 2.50 | 2.2 | 7.0 | 2.3 | 62 |
| YE3-80M2-2 | 1.1 | 2.4 | 2875 | 82.7 | 0.83 | 3.65 | 2.2 | 7.3 | 2.3 | 62 |
| YE3-90S-2 | 1.5 | 3.2 | 2880 | 84.2 | 0.84 | 4.97 | 2.2 | 7.6 | 2.3 | 67 |
| YE3-90L-2 | 2.2 | 4.6 | 2880 |
85.9 9 |
0.85 | 7.30 | 2.2 | 7.6 | 2.3 | 67 |
| YE3-100L-2 | 3 | 6.0 | 2880 | 87.1 | 0.87 | 9.95 | 2.2 | 7.8 | 2.3 | 74 |
| YE3-112M-2 | 4 | 7.8 | 2915 | 88.1 | 0.88 | 13.1 | 2.2 | 8.3 | 2.3 | 77 |
| YE3-132S1-2 | 5.5 | 10.6 | 2935 | 89.2 | 0.88 | 17.9 | 2.0 | 8.3 | 2.3 | 79 |
| YE3-132S2-2 | 7.5 | 14.4 | 2930 | 90.1 | 0.88 | 24.4 | 2.0 | 7.9 | 2.3 | 79 |
| YE3-160M1-2 | 11 | 20.6 | 2950 | 91.2 | 0.89 | 35.6 | 2.0 | 8.1 | 2.3 | 81 |
| YE3-160M2-2 | 15 | 27.9 | 2945 | 91.9 | 0.89 | 48.6 | 2.0 | 8.1 | 2.3 | 81 |
| YE3-160L-2 | 18.5 | 34.2 | 2945 | 92.4 | 0.89 | 60.0 | 2.0 | 8.2 | 2.3 | 81 |
| YE3-180M-2 | 22 | 40.5 | 2950 | 92.7 | 0.89 | 71.2 | 2.0 | 8.2 | 2.3 | 83 |
| YE3-200L1-2 | 30 | 54.9 | 2965 | 93.3 | 0.89 | 96.6 | 2.0 | 7.6 | 2.3 | 84 |
| YE3-200L2-2 | 37 | 67.4 | 2965 | 93.7 | 0.89 | 119 | 2.0 | 7.6 | 2.3 | 84 |
| YE3-225M-2 | 45 | 80.8 | 2965 | 94.0 | 0.90 | 145 | 2.0 | 7.7 | 2.3 | 86 |
| YE3-250M-2 | 55 | 98.5 | 2975 | 94.3 | 0.90 | 177 | 2.0 | 7.7 | 2.3 | 89 |
| YE3-280S-2 | 75 | 134 | 2975 | 94.7 | 0.90 | 241 | 1.8 | 7.1 | 2.3 | 91 |
| YE3-280M-2 | 90 | 160 | 2975 | 95.0 | 0.90 | 289 | 1.8 | 7.1 | 2.3 | 91 |
| YE3-280M1-2 | 110 | 195 | 2975 | 95.2 | 0.90 | 353 | 1.8 | 7.1 | 2.0 | 91 |
Conventional mounting type and suitable frame size are given in following table(with “√”)
|
机座号 Frame |
基本安装结构 basic type |
派生的安装形式 derived type |
||||||||||||||
| B3 | B5 | B35 | V1 | V3 | V5 | V6 | B6 | B7 | B8 | V15 | V36 | B14 | B34 | V18 | ||
| 63～112 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| 132～160 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | - | - | - | |
| 180～280 | √ | √ | √ | √ | - | - | - | - | - | - | - | - | - | - | - | |
| 315～355 | √ | - | √ | √ | - | - | - | - | - | - | - | - | - | - | - | |
"√" Indicates the structural type that can be manufactured. When ordering the motor, if no explanation is given, the junction box is a side-type right outlet.
2 Pole 3 Phase Induction Motor Dimensions
|
机座号 Frame |
极数 Poles |
安 装 尺 寸 Mounting Dimension | 外形尺寸Overall Dimension | ||||||||||||
| D | E | F | G | M | N | P | R | S | T | AC | AD | HF | L | ||
| 180M | 2,4,6,8 | 48 | 110 | 14 | 42.5 | 300 | 250 | 350 | 0 | 4-Φ19 | 5 | 360 | 265 | 500 | 745 |
| 180L | 785 | ||||||||||||||
| 200L | 2,4,6,8 | 55 | 110 | 16 | 49 | 350 | 300 | 400 | 0 | 4-Φ19 | 5 | 400 | 305 | 570 | 845 |
| 225S | 4,8 | 60 | 140 | 18 | 53 | 400 | 350 | 450 | 0 | 8-Φ19 | 5 | 450 | 325 | 615 | 905 |
| 225M | 2 | 55 | 110 | 16 | 49 | 900 | |||||||||
| 4,6,8 | 60 | 140 | 18 | 53 | 930 | ||||||||||
| 250M | 2 | 60 | 140 | 18 | 53 | 500 | 450 | 550 | 0 | 8-Φ19 | 5 | 510 | 380 | 715 | 1025 |
| 4,6,8 | 65 | 58 | |||||||||||||
| 280S | 2 | 65 | 140 | 18 | 58 | 500 | 450 | 550 | 0 | 8-Φ19 | 5 | 550 | 395 | 760 | 1080 |
| 4,6,8 | 75 | 20 | 67.5 | ||||||||||||
| 280M | 2 | 65 | 18 | 58 | 1130 | ||||||||||
| 4,6,8 | 75 | 20 | 67.5 | ||||||||||||
| 315S | 2 | 65 | 140 | 18 | 58 | 600 | 550 | 660 | 0 | 8-Φ24 | 6 | 630 | 540 | 970 | 1310 |
| 4,6,8,10 | 80 | 170 | 22 | 71 | 1340 | ||||||||||
| 315M | 2 | 65 | 140 | 18 | 58 | 1345 | |||||||||
| 4,6,8,10 | 80 | 170 | 22 | 71 | 1375 | ||||||||||
| 315L | 2 | 65 | 140 | 18 | 58 | 1420 | |||||||||
| 4,6,8,10 | 80 | 170 | 22 | 71 | 1450 | ||||||||||
| 355M | 2 | 75 | 140 | 20 | 67.5 | 740 | 680 | 800 | 0 | 8-Φ24 | 6 | 715 | 645 | 1135 | 1530 |
| 4,6,8,10 | 95 | 170 | 25 | 86 | 1560 | ||||||||||
| 355L/L1 | 2 | 75 | 140 | 20 | 67.5 | 1640 | |||||||||
| 4,6,8,10 | 95 | 170 | 25 | 86 | 1670 | ||||||||||
| 355L2/L3 | 2 | 80 | 170 | 22 | 71 | 1670 | |||||||||
| 4,6,8,10 | 110 | 210 | 28 | 100 | 1710 | ||||||||||
