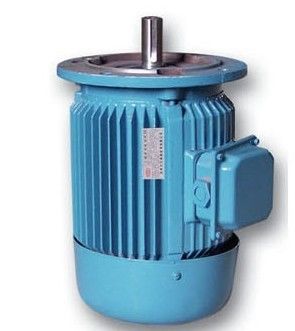

YE3 Series 3 Phase 4 Pole Squirrel Cage Induction Motor Low Voltage

YE3 Series 3 Phase 4 Pole Squirrel Cage Induction Motor Low Voltage

Products - Conveying Equipment - Three Phase Asynchronous Motor
  • Highlight

    1500r/min Three Phase Asynchronous Motor

    ,

    Three Phase Asynchronous Motor Low Voltage

    ,

    3 Phase 4 Pole Squirrel Cage Induction Motor

  • Product Name
    A 4 Pole Three Phase Induction Motor
  • Feature
    Low Voltage
  • Synchronous Speed
    1500 R/min
  • Frame Sizes
    63～355
  • Rated Output
    0.12～375kW
  • Duty Cycle
    S1
  • Cooling Method
    IC411
  • Efficiency Level
    IE3
  • Number Of Poles
    2, 4, 6, 8
  • Voltage
    380V
  • Frequency
    50Hz
  • Insulation Class
    F
  • Degree Of Protection
    IP55
  • Mounting Arrangement
    V1/B3/B5/B14/B35/B34 Or Other
  • Shell
    Cast Iron Body, Aluminum Body
  • Place of Origin
    China
  • Model Number
    YE3 Series

YE3 Series 3 Phase 4 Pole Squirrel Cage Induction Motor Low Voltage

  • YE3 Series 3 Phase 4 Pole Squirrel Cage Induction Motor Low Voltage
Get Price Contact Now

YE3 Series 3 Phase 4 Pole Squirrel Cage Induction Motor Low Voltage



Triple Phase Asynchronous Motor Overview:



IEC Frame Metric motors are designed to meet international standards (GB18613-2012 requirements) and are “the” replacement motors for overseas applications and machinery components. IEC frame motors offer vacuum pressure impregnation for optimal electrical performance, oversized bearings on both ends for direct coupling, IP55 protection. Select from B3, B5, V1, B35, B14 or B34 mounting to replace or import in a variety of applications from pumps, conveyors, fans and more.



3 Phase 4 Pole Induction Motor Feature:



1. Inverter Duty Rated: 2:1CT & 10:1VT at 380V 50 Hz

2. Protection Degree: IP55

3. Enclosure: TEFC

4. High lock rotor torque

5. VPI process applied for best electrical performance

6. IEC132 frame and larger suitable for Y/Delta starting

7. Nameplate rated 380V 50 Hz or 400V 50Hz

8. Oversized ball bearings on both ends for direct coupling

9. Class “F” insulation

10. Junction box equipped with glands

11. F2 mounting position, F1, F3 is available too

12. Bidirectional fan

13. All motors provided with CE mark



3 Phase 4 Pole Induction Motor Performance Data:



型 号

Type

功率

kW

额定

电流

A

转速

r/min

效率

Eff.%

功率

因数

P.F

额定

转矩

N.m

堵转转矩

额定转矩

Tst

TN

堵转电流

额定电流

Ist

IN

最大转矩

额定转矩

Tmax

TN

噪声

dB(A)
同步转速 3000 r/min
YE3-315S-2 110 195 2985 95.2 0.90 352 1.8 7.1 2.3 92
YE3-315M-2 132 234 2985 95.4 0.90 422 1.8 7.1 2.3 92
YE3-315L1-2 160 279 2985 95.6 0.91 512 1.8 7.2 2.3 92
YE3-315L-2 185 323 2985 95.7 0.91 592 1.8 7.2 2.3 92
YE3-315L2-2 200 349 2985 95.8 0.91 640 1.8 7.2 2.2 92
YE3-315L3-2 220 383 2985 95.8 0.91 704 1.8 7.2 2.2 92
YE3-355M1-2 220 383 2985 95.8 0.91 704 1.8 7.2 2.2 100
YE3-355M-2 250 436 2985 95.8 0.91 800 1.6 7.2 2.2 100
YE3-355L1-2 280 488 2985 95.8 0.91 896 1.6 7.2 2.2 100
YE3-355L-2 315 549 2985 95.8 0.91 1008 1.6 7.2 2.2 100
YE3-355L2-2 355 619 2985 95.8 0.91 1136 1.6 7.2 2.2 100
YE3-355L3-2 375 654 2985 95.8 0.91 1200 1.6 7.2 2.2 100
同步转速1500 r/min
YE3-63M1-4 0.12 0.45 1310 55.8 0.72 0.87 2.1 4.4 2.2 52
YE3-63M2-4 0.18 0.64 1310 58.6 0.73 1.31 2.1 4.4 2.2 52
YE3-71M1-4 0.25 0.81 1330 63.6 0.74 1.80 2.1 5.2 2.2 55
YE3-71M2-4 0.37 1.1 1330 65.3 0.75 2.66 2.1 5.2 2.2 55
YE3-80M1-4 0.55 1.4 1430 80.6 0.75 3.67 2.3 6.5 2.3 56
YE3-80M2-4 0.75 1.8 1430 82.5 0.75 5.01 2.3 6.6 2.3 56
YE3-90S-4 1.1 2.6 1430 84.1 0.76 7.35 2.3 6.8 2.3 59
YE3-90L-4 1.5 3.5 1430 85.3 0.77 10.0 2.3 7.0 2.3 59
YE3-100L1-4 2.2 4.8 1440 86.7 0.81 14.6 2.3 7.6 2.3 64
YE3-100L2-4 3 6.3 1440 87.7 0.82 19.9 2.3 7.6 2.3 64
YE3-112M-4 4 8.4 1455 88.6 0.82 26.3 2.2 7.8 2.3 65
YE3-132S-4 5.5 11.2 1465 89.6 0.83 35.9 2.0 7.9 2.3 71
YE3-132M-4 7.5 15.0 1465 90.4 0.84 48.9 2.0 7.5 2.3 71
YE3-160M-4 11 21.5 1470 91.4 0.85 71.5 2.0 7.7 2.3 73
YE3-160L-4 15 28.8 1470 92.1 0.86 97.4 2.0 7.8 2.3 73
YE3-180M-4 18.5 35.3 1470 92.6 0.86 120 2.0 7.8 2.3 76
YE3-180L-4 22 41.8 1470 93.0 0.86 143 2.0 7.8 2.3 76
YE3-200L-4 30 56.6 1475 93.6 0.86 194 2.0 7.3 2.3 76
YE3-225S-4 37 69.6 1480 93.9 0.86 239 2.0 7.4 2.3 78
YE3-225M-4 45 84.4 1480 94.2 0.86 290 2.0 7.4 2.3 78
YE3-250M-4 55 103 1485 94.6 0.86 354 2.0 7.4 2.3 79
YE3-280S-4 75 136 1490 95.0 0.88 481 2.0 6.7 2.3 80
YE3-280M-4 90 163 1490 95.2 0.88 577 2.0 6.9 2.3 80
YE3-280M1-4 110 197 1490 95.4 0.89 705 2.0 7.0 2.3 80
YE3-315S-4 110 197 1490 95.4 0.89 705 2.0 7.0 2.2 88
YE3-315M-4 132 236 1490 95.6 0.89 846 2.0 7.0 2.2 88
YE3-315L1-4 160 285 1490 95.8 0.89 1026 2.0 7.1 2.2 88
YE3-315L-4 185 329 1490 95.9 0.89 1186 2.0 7.1 2.2 88
YE3-315L2-4 200 352 1490 96.0 0.90 1282 2.0 7.1 2.2 88
YE3-315L3-4 220 387 1490 96.0 0.90 1410 2.0 7.1 2.2 88



Low Voltage Asynchronous Motor Dimensions



YE3 Series 3 Phase 4 Pole Squirrel Cage Induction Motor Low Voltage 0



机座号

Frame

极数

Poles

 安 装 尺 寸 Mounting Dimension 外 形 尺 寸Overall Dimension
A B C D E F G H K AA BB HA AB AC AD HD L
63M 2,4 100 80 40 11 23 4 8.5 63 7 30 110 8 135 135 70 180 230
71M 2,4,6 112 90 45 14 30 5 11 71 7 32 120 8 150 145 80 195 255
80M 2,4,6,8 125 100 50 19 40 6 15.5 80 10 32 135 10 160 165 145 225 295
90S 2,4,6,8 140 100 56 24 50 8 20 90 10 34 170 12 180 180 165 255 345
90L 125 210 385
100L 2,4,6,8 160 140 63 28 60 8 24 100 12 39 186 14 200 205 175 275 390
112M 2, 6,8 190 140 70 28 60 8 24 112 12 45 200 14 230 225 190 300 420
4 230 450
132S 2,4,6,8 216 140 89 38 80 10 33 132 12 55 190 18 265 270 220 350 465
132M 178 230 505
160M 2,4,6,8 254 210 108 42 110 12 37 160 15 65 260 20 315 320 260 420 610
160L 254 304 650
180M 2,4,6,8 279 241 121 48 110 14 42.5 180 15 70 311 22 355 360 265 445 685
180L 279 349 725
200L 2,4,6,8 318 305 133 55 110 16 49 200 19 74 379 26 395 400 305 505 775
225S 4,8 356 286 149 60 140 18 53 225 19 78 375 28 435 450 325 550 815
225M 2 311 55 110 16 49 400 810
4,6,8 60 140 18 53 840
250M 2 406 349 168 60 140 18 53 250 24 80 445 30 490 510 380 630 920
4,6,8 65 58
280S 2 457 368 190 65 140 18 58 280 24 90 485 35 545 550 395 675 965
4,6,8 75 20 67.5
280M 2 419 65 18 58 536 1015
4,6,8 75 20 67.5
315S 2 508 406 216 65 140 18 58 315 28 120 570 45 635 630 540 855 1180
4,6,8,10 80 170 22 71 1210
315M 2 457 65 140 18 58 610 1215
4,6,8,10 80 170 22 71 1245
315L 2 508 65 140 18 58 680 1290
4,6,8,10 80 170 22 71 1320
355M 2 610 560 254 75 140 20 67.5 355 28 130 690 52 735 715 645 1000 1390
4,6,8,10 95 170 25 86 1420
355L/L1 2 630 75 140 20 67.5 750 1500
4,6,8,10 95 170 25 86 1530
355L2/L3 2 80 170 22 71 1530
4,6,8,10 110 210 28 100 1570
