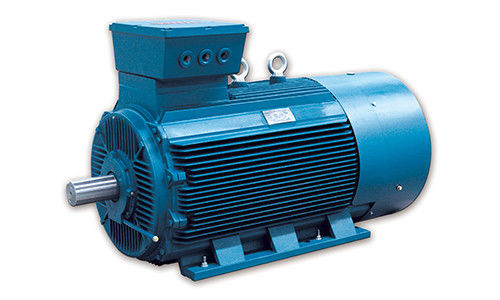

YE3 Series Triple Phase Asynchronous Motor A Three Phase 6 Pole 50 Hz Induction Motor
Asynchronous 3 Phase Motor Overview:
Triple Phase Asynchronous Motor is made of high quality cast iron. With optimized construction design, they can ensure the requirement of structure rigidity and intensity. Silicon steel plate is used in stator core and rotor core, it has good insulation on surface, low loss which ensures the higher efficiency. High quality insulation material combines the perfect insulation system which makes the insulation completely without clearance, high rigidity of the winding end, it can endure switching and reversing intensity, F class insulation makes the motor with higher heat stability and longer life.
3 Phase 6 Pole Induction Motor Performance Data:
|
型 号 Type |
功率 kW |
额定 电流 A |
转速 r/min |
效率 Eff.% |
功率 因数 P.F |
额定 转矩 N.m |
堵转转矩 额定转矩 Tst TN |
堵转电流 额定电流 Ist IN |
最大转矩 额定转矩 Tmax TN |
噪声 dB(A) |
| 同步转速 1500 r/min | ||||||||||
| YE3-355M1-4 | 220 | 387 | 1490 | 96.0 | 0.90 | 1410 | 2.0 | 7.1 | 2.2 | 95 |
| YE3-355M-4 | 250 | 440 | 1495 | 96.0 | 0.90 | 1597 | 2.0 | 7.1 | 2.2 | 95 |
| YE3-355L1-4 | 280 | 492 | 1495 | 96.0 | 0.90 | 1789 | 2.0 | 7.1 | 2.2 | 95 |
| YE3-355L-4 | 315 | 554 | 1495 | 96.0 | 0.90 | 2012 | 2.0 | 7.1 | 2.2 | 95 |
| YE3-355L2-4 | 355 | 638 | 1495 | 96.0 | 0.88 | 2268 | 1.7 | 7.0 | 2.2 | 95 |
| YE3-355L3-4 | 375 | 674 | 1495 | 96.0 | 0.88 | 2395 | 1.7 | 7.0 | 2.2 | 95 |
| 同步转速 1000 r/min | ||||||||||
| YE3-71M1-6 | 0.18 | 0.76 | 850 | 54.6 | 0.66 | 2.02 | 1.9 | 4.0 | 2.0 | 52 |
| YE3-71M2-6 | 0.25 | 0.97 | 850 | 57.4 | 0.68 | 2.81 | 1.9 | 4.0 | 2.0 | 52 |
| YE3-80M1-6 | 0.37 | 1.2 | 910 | 68.0 | 0.70 | 3.88 | 1.9 | 5.5 | 2.0 | 54 |
| YE3-80M2-6 | 0.55 | 1.6 | 925 | 72.0 | 0.71 | 5.68 | 1.9 | 5.8 | 2.1 | 54 |
| YE3-90S-6 | 0.75 | 2.0 | 945 | 78.9 | 0.71 | 7.58 | 2.0 | 6.0 | 2.1 | 57 |
| YE3-90L-6 | 1.1 | 2.8 | 950 | 81.0 | 0.73 | 11.1 | 2.0 | 6.0 | 2.1 | 57 |
| YE3-100L-6 | 1.5 | 3.8 | 950 | 82.5 | 0.73 | 15.1 | 2.0 | 6.5 | 2.1 | 61 |
| YE3-112M-6 | 2.2 | 5.4 | 965 | 84.3 | 0.74 | 21.8 | 2.0 | 6.6 | 2.1 | 65 |
| YE3-132S-6 | 3 | 7.2 | 975 | 85.6 | 0.74 | 29.4 | 1.9 | 6.8 | 2.1 | 69 |
| YE3-132M1-6 | 4 | 9.5 | 975 | 86.8 | 0.74 | 39.2 | 1.9 | 6.8 | 2.1 | 69 |
| YE3-132M2-6 | 5.5 | 12.7 | 975 | 88.0 | 0.75 | 53.9 | 1.9 | 7.0 | 2.1 | 69 |
| YE3-160M-6 | 7.5 | 16.2 | 980 | 89.1 | 0.79 | 73.1 | 1.9 | 7.0 | 2.1 | 70 |
| YE3-160L-6 | 11 | 23.1 | 980 | 90.3 | 0.80 | 107 | 1.9 | 7.2 | 2.1 | 70 |
| YE3-180L-6 | 15 | 30.9 | 980 | 91.2 | 0.81 | 146 | 1.9 | 7.3 | 2.1 | 73 |
| YE3-200L1-6 | 18.5 | 37.8 | 985 | 91.7 | 0.81 | 179 | 1.9 | 7.3 | 2.1 | 73 |
| YE3-200L2-6 | 22 | 44.8 | 985 | 92.2 | 0.81 | 213 | 1.9 | 7.4 | 2.1 | 73 |
| YE3-225M-6 | 30 | 59.1 | 985 | 92.9 | 0.83 | 291 | 1.9 | 6.9 | 2.1 | 74 |
| YE3-250M-6 | 37 | 71.7 | 985 | 93.3 | 0.84 | 359 | 1.9 | 7.1 | 2.1 | 76 |
| YE3-280S-6 | 45 | 85.8 | 990 | 93.7 | 0.85 | 434 | 1.9 | 7.3 | 2.0 | 78 |
| YE3-280M-6 | 55 | 103 | 990 | 94.1 | 0.86 | 531 | 1.9 | 7.3 | 2.0 | 78 |
| YE3-280M1-6 | 75 | 143 | 990 | 94.6 | 0.84 | 723 | 1.9 | 7.3 | 2.0 | 78 |
| YE3-315S-6 | 75 | 143 | 990 | 94.6 | 0.84 | 723 | 1.9 | 6.6 | 2.0 | 83 |
| YE3-315M-6 | 90 | 170 | 990 | 94.9 | 0.85 | 868 | 1.9 | 6.7 | 2.0 | 83 |
| YE3-315L1-6 | 110 | 207 | 990 | 95.1 | 0.85 | 1061 | 1.9 | 6.7 | 2.0 | 83 |
| YE3-315L2-6 | 132 | 244 | 990 | 95.4 | 0.86 | 1273 | 1.9 | 6.8 | 2.0 | 83 |
| YE3-315L3-6 | 160 | 296 | 990 | 95.6 | 0.86 | 1543 | 1.9 | 6.8 | 2.0 | 83 |
| YE3-355M1-6 | 160 | 296 | 995 | 95.6 | 0.86 | 1536 | 1.9 | 6.8 | 2.0 | 85 |
| YE3-355M-6 | 185 | 342 | 995 | 95.7 | 0.86 | 1776 | 1.9 | 6.8 | 2.0 | 85 |
| YE3-355M2-6 | 200 | 365 | 995 | 95.8 | 0.87 | 1920 | 1.9 | 6.8 | 2.0 | 85 |
| YE3-355L1-6 | 220 | 401 | 995 | 95.8 | 0.87 | 2112 | 1.9 | 6.8 | 2.0 | 85 |
| YE3-355L-6 | 250 | 456 | 995 | 95.8 | 0.87 | 2399 | 1.9 | 6.8 | 2.0 | 85 |
| YE3-355L2-6 | 280 | 510 | 995 | 95.8 | 0.87 | 2687 | 1.9 | 6.8 | 2.0 | 85 |
| YE3-355L3-6 | 315 | 581 | 995 | 95.8 | 0.86 | 3023 | 1.9 | 6.8 | 2.0 | 85 |
|
机座号 Frame |
极数 Poles |
安 装 尺 寸 及 公 差 Mounting Dimension | 外 形 尺 寸 Overall Dimension | ||||||||||||
| D | E | F | G | M | N | P | R | S | T | AC | AD | HF | L | ||
| 63M | 2,4 | 11 | 23 | 4 | 8.5 | 115 | 95 | 140 | 0 | 4-Φ10 | 3 | 135 | 70 | 140 | 230 |
| 71M | 2,4,6 | 14 | 30 | 5 | 11 | 130 | 110 | 160 | 0 | 4-Φ10 | 3.5 | 145 | 80 | 160 | 255 |
| 80M | 2,4,6,8 | 19 | 40 | 6 | 15.5 | 165 | 130 | 200 | 0 | 4-Φ12 | 3.5 | 165 | 145 | 245 | 295 |
| 90S | 2,4,6,8 | 24 | 50 | 8 | 20 | 165 | 130 | 200 | 0 | 4-Φ12 | 3.5 | 180 | 165 | 265 | 345 |
| 90L | 385 | ||||||||||||||
| 100L | 2,4,6,8 | 28 | 60 | 8 | 24 | 215 | 180 | 250 | 0 | 4-Φ15 | 4 | 205 | 175 | 300 | 390 |
| 112M | 2,6,8 | 28 | 60 | 8 | 24 | 215 | 180 | 250 | 0 | 4-Φ15 | 4 | 225 | 190 | 315 | 420 |
| 4 | 450 | ||||||||||||||
| 132S | 2,4,6,8 | 38 | 80 | 10 | 33 | 265 | 230 | 300 | 0 | 4-Φ15 | 4 | 270 | 220 | 370 | 465 |
| 132M | 505 | ||||||||||||||
| 160M | 2,4,6,8 | 42 | 110 | 12 | 37 | 300 | 250 | 350 | 0 | 4-Φ19 | 5 | 320 | 260 | 435 | 610 |
| 160L | 650 | ||||||||||||||
| 180M | 2,4,6,8 | 48 | 110 | 14 | 42.5 | 300 | 250 | 350 | 0 | 4-Φ19 | 5 | 360 | 265 | 440 | 685 |
| 180L | 725 | ||||||||||||||
| 200L | 2,4,6,8 | 55 | 110 | 16 | 49 | 350 | 300 | 400 | 0 | 4-Φ19 | 5 | 400 | 305 | 505 | 775 |
| 225S | 4,8 | 60 | 140 | 18 | 53 | 400 | 350 | 450 | 0 | 8-Φ19 | 5 | 450 | 325 | 550 | 815 |
| 225M | 2 | 55 | 110 | 16 | 49 | 810 | |||||||||
| 4,6,8 | 60 | 140 | 18 | 53 | 840 | ||||||||||
| 250M | 2 | 60 | 140 | 18 | 53 | 500 | 450 | 550 | 0 | 8-Φ19 | 5 | 510 | 380 | 655 | 920 |
| 4,6,8 | 65 | 58 | |||||||||||||
| 280S | 2 | 65 | 140 | 18 | 58 | 500 | 450 | 550 | 0 | 8-Φ19 | 5 | 550 | 395 | 670 | 965 |
| 4,6,8 | 75 | 20 | 67.5 | ||||||||||||
| 280M | 2 | 65 | 18 | 58 | 1015 | ||||||||||
| 4,6,8 | 75 | 20 | 67.5 | ||||||||||||
