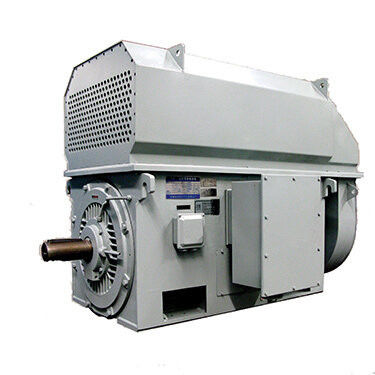

YKK YRKK Series 6kV Squirrel Cage High Voltage Three Phase Asynchronous Electric Motor
Asynchronous Electric Motor Overview
YKK and YRKK series 6kV medium and large fully enclosed high voltage three phase asynchronous motors (hereinafter referred to as motors). The performance of the motor is close to or reaches the advanced foreign level, and the protection level is IP44 or IP54. It can be treated with anti-corrosion and anti-mildew processes to derive outdoor (W) and outdoor anti-corrosion (WF) motors.
This series of motors uses computer-optimized design, adopts new materials and new processes, and has the advantages of high efficiency, low noise, small vibration, light weight, high reliability, and easy installation and maintenance.
This series of products is mainly suitable for general mechanical equipment such as fans, water pumps, compressors, crushers, chip cutting machine tools, and transportation machinery in petroleum, cement, chemical industry, coal, power stations, metallurgy, transportation textiles, medicine, food processing and other industries. Other similar mechanical equipment.
3 Phase Asynchronous Motor Specification
1) Motor type and power grade (YKK 6kV series)
|
机座号 No.of frame |
同步转速(r/min)synchronous speed | |||||
| 1500(4P) | 1000(6P) | 750(8P) | 600( 10P) | 500( 12P) | 375( 16P) | |
| 功率 POWER(kW) | ||||||
|
1 2 355 3 4 |
185 200 220 250 |
- |
- |
- |
- |
- |
|
1 2 400 3 4 5 6 |
- 280 315 355 400 450 |
185 200 220 250 280 315 |
- - - 185 200 220 |
- |
- |
- |
|
1 2 450 3 4 5 |
- 500 560 630 710 |
- 355 400 450 500 |
- 250 280 315 355 |
185 200 220 250 280 |
- - - 185 200 |
- |
|
1 2 500 3 4 |
800 900 1000 1120 |
560 630 710 800 |
400 450 500 560 |
315 355 400 450 |
220 250 280 315 |
- |
|
1 560 2 3 4 |
1250 1400 1600 - |
900 1000 1120 - |
630 710 800 - |
500 560 630 710 |
355 400 450 500 |
- |
|
1 630 2 3 4 |
1800 2000 2240 - |
1250 1400 1600 - |
900 1000 1120 1250 |
800 900 1000 1120 |
560 630 710 800 |
- |
|
1 710 2 3 4 |
2500 2800 3150 3550 |
1800 2000 2240 2500 |
1400 1600 1800 - |
1250 1400 1600 - |
900 1000 1120 - |
500 560 630 710 |
|
1 800 2 3 4 |
4000 4500 5000 - |
2800 3150 3550 4000 |
2000 2240 2500 2800 |
1800 2000 2240 - |
1250 1400 1600 1800 |
800 900 1000 1120 |
|
1 900 2 3 4 |
- 5600 6300 - |
4500 5000 5600 - |
3150 3550 4000 - |
2500 2800 3150 - |
2000 2240 2500 - |
1250 1400 1600 - |
|
1 1000 2 3 4 |
- |
6300 7100 - - |
4500 5000 5600 - |
3550 4000 4500 - |
2800 3150 3550 - |
1800 2000 2240 - |
2) Motor type and power grade (YRKK 6kV series)
|
机座号 No.of frame |
同步转速(r/min)synchronous speed | |||||
| 1500(4P) | 1000(6P) | 750(8P) | 600( 10P) | 500( 12P) | 375( 16P) | |
| 功率 POWER(kW) | ||||||
|
1 355 2 3 |
185 200 220 |
- |
- |
- |
- |
- |
|
1 2 400 3 4 5 |
250 280 315 355 400 |
185 200 220 250 280 |
- -
185 200 |
- |
- |
|
|
1 2 450 3 4 5 |
450 500 560 630 710 |
315 355 400 450 500 |
220 250 280 315 355 |
- 185 200 220 250 |
- - 185 220 |
- |
|
1 2 500 3 4 |
800 900 1000 1120 |
560 630 710 800 |
400 450 500 560 |
280 315 355 400 |
220 250 280 315 |
- |
|
1 560 2 3 4 |
- 1250 1400 - |
- 900 1000 - |
- 630 710 800 |
450 500 560 630 |
- 355 400 450 |
- |
|
1 630 2 3 4 |
1600 1800 2000 - |
1120 1250 1400 |
900 1000 1120 1250 |
710 800 900 1000 |
500 560 630 710 |
- |
|
1 2 710 3 4 |
2240 2500 2800 3150 |
1600 1800 2000 2240 |
1400 1600 1800 2000 |
1120 1250 1400 1600 |
800 900 1000 1120 |
500 560 630 710 |
|
1 2 800 3 4 |
3550 4000 4500 - |
2500 2800 3150 3550 |
2240 2500 2800 - |
1800 2000 2240 - |
1250 1400 1600 1800 |
800 900 1000 1120 |
|
1 2 900 3 4 |
- |
4000 4500 5000 - |
3150 3550 4000 - |
2500 2800 3150 3550 |
2000 2240 2500 - |
1250 1400 1600 - |
|
1 2 1000 3 4 |
- |
- |
4500 5000 5600 - |
4000 4500 5000 - |
2800 3150 3550 4000 |
1800 2000 2240 - |
