YKK YRKK Series Three Phase Asynchronous Motor 3 Phase High Voltage Electric Motor
Squirrel Cage Asynchronous Motor Overview

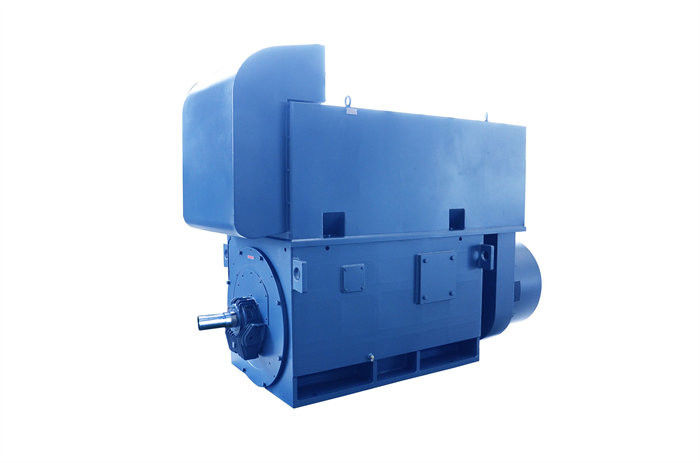

YKK series squirrel cage high voltage three phase asynchronous motor is a cage-type asynchronous motor with closed air-to-air cooler. This series of motors is rated IP44 or IP54 and the cooling method is IC611.
YKK series high voltage 3 phase asynchronous motor is a cage asynchronous motor with closed air-to-air cooler. The base and end cover are made of steel plate. The box structure is adopted. The top cover can be opened to observe the internal condition of the motor. All components can be disassembled and assembled for convenient installation and maintenance.
YKK high voltage squirrel cage motor has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance. Can be used to drive a variety of different machinery. Such as ventilators, compressors, pumps, crushers, cutting machine tools and other equipment, and can be used by coal mines, machinery industry, power plants and various industrial and mining enterprises.
The structure and installation form of YKK series high voltage squirrel cage asynchronous motor is IMB3. The quota is continuous rating based on continuous working system (S1). The rated frequency of the motor is 50HZ, the rated voltage is 6kv/10kv, other voltage grades or special requirements are ordered. It can be agreed with the user.
3 Phase Asynchronous Motor Specification
|
2.YKK系列6kV高压三相异步电动机技术数据表(H710-H1000) YKK Series 6000V Three Phase Asynchronous Motors Technical Data(H710- 1000) |
||||||||||
|
型 号 TYPE |
额定 功率 RATED POWER (kW) |
额定 电流 STATOR CURRENT (A) |
额定 转速 RATED ROTATING SPEED (r/min) |
效率 η% EFFI- IENCY |
功率 因数 cosΦ POWER FACTOR |
最大 转矩 MAX TORQ —— 额定 转矩 RATED TORQ |
起动 转矩 LOCKED TORQ 额定 转矩 RATED TORQ |
起动 电流 LOCKED CURRENT 额定 电流 RATED CURRENT |
负载 转动 惯量 J LOAD INERTIA kg..m2 |
电机 重量 WEIGHT (Kg) |
|
YKK7101-4 YKK7102-4 YKK7103-4 YKK7104-4 |
2500 2800 3150 3550 |
291 326 362 408 |
1493 1493 1493 1493 |
96.28 96.36 96.51 96.55 |
0.873 0.875 0.883 0.886 |
1.8 1.8 1.8 1.8 |
0.5 0.5 0.5 0.5 |
6.5 6.5 6.5 6.5 |
5270 5565 5780 5890 |
12600 13100 13600 14100 |
|
YKK8001-4 YKK8002-4 YKK8003-4 |
4000 4500 5000 |
459 516 573 |
1493 1493 1493 |
96.62 96.63 96.70 |
0.890 0.892 0.892 |
1.8 1.8 1.8 |
0.5 0.5 0.5 |
6.5 6.5 6.5 |
6450 6980 7460 |
16450 17000 17700 |
|
YKK9002-4 YKK9003-4 |
5600 6300 |
633 712 |
1493 1493 |
96.82 96.92 |
0.895 0.896 |
1.8 1.8 |
0.5 0.5 |
6.5 6.5 |
7600 7850 |
22500 23700 |
|
YKK7101-6 YKK7102-6 YKK7103-6 YKK7104-6 |
1800 2000 2240 2500 |
213 236 264 295 |
1000 1000 1000 1000 |
95.52 95.62 95.73 95.81 |
0.852 0.856 0.858 0.860 |
1.8 1.8 1.8 1.8 |
0.6 0.6 0.6 0.6 |
6.5 6.5 6.5 6.5 |
1465 1630 1800 1970 |
12500 13000 13500 14100 |
|
YKK8001-6 YKK8002-6 YKK8003-6 YKK8004-6 |
2800 3150 3550 4000 |
326 371 417 465 |
1000 1000 1000 1000 |
96.33 96.42 96.45 96.53 |
0.871 0.873 0.875 0.878 |
1.8 1.8 1.8 1.8 |
0.6 0.6 0.6 0.6 |
6.5 6.5 6.5 6.5 |
2820 3050 3250 3550 |
16500 17670 18120 18460 |
|
YKK9001-6 YKK9002-6 YKK9003-6 |
4500 5000 5600 |
516 573 641 |
1000 1000 1000 |
96.61 96.73 96.83 |
0.882 0.885 0.889 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.5 6.5 6.5 |
3900 4250 4650 |
22800 23760 25000 |
|
YKK10001-6 YKK10002-6 |
6300 7100 |
712 802 |
1000 1000 |
96.90 97.02 |
0.892 0.895 |
1.8 1.8 |
0.6 0.6 |
6.5 6.5 |
5100 5600 |
32080 33800 |
|
YKK7101-8 YKK7102-8 YKK7103-8 |
1400 1600 1800 |
169 192 216 |
745 745 745 |
95.02 95.15 95.26 |
0.837 0.839 0.840 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.5 6.5 6.5 |
2035 2320 2610 |
12680 13890 14450 |
|
YKK8001-8 YKK8002-8 YKK8003-8 YKK8004-8 |
2000 2240 2500 2800 |
237 265 296 331 |
745 745 745 745 |
95.34 95.42 95.52 95.62 |
0.841 0.843 0.845 0.848 |
1.8 1.8 1.8 1.8 |
0.6 0.6 0.6 0.6 |
6.5 6.5 6.5 6.5 |
2940 3260 3590 3950 |
16500 17120 18890 19180 |
|
YKK9001-8 YKK9002-8 YKK9003-8 |
3150 3550 4000 |
368 414 466 |
744 744 744 |
95.73 95.82 95.94 |
0.854 0.856 0.858 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.5 6.5 6.5 |
4950 5400 6000 |
22500 23850 24660 |
|
YKK10001-8 YKK10002-8 YKK10003-8 |
4500 5000 5600 |
518 574 643 |
743 744 744 |
96.05 96.13 96.25 |
0.862 0.864 0.868 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.5 6.5 6.5 |
6530 7260 7800 |
32580 33120 34900 |
|
YKK7101- 10 YKK7102- 10 YKK7103- 10 |
1250 1400 1600 |
153 171 195 |
592 592 592 |
94.64 94.75 94.85 |
0.824 0.825 0.825 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
2770 3110 3450 |
12800 13250 14300 |
|
YKK8001- 10 YKK8002- 10 YKK8003- 10 |
1800 2000 2240 |
219 244 273 |
592 592 592 |
94.93 95.05 95.13 |
0.827 0.829 0.830 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
3850 4250 4750 |
16800 17500 18000 |
|
YKK9001- 10 YKK9002- 10 YKK9003- 10 |
2500 2800 3150 |
300 336 378 |
592 592 592 |
95.21 95.32 95.42 |
0.832 0.834 0.836 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
5300 5900 6500 |
22800 23580 24500 |
|
2.YKK系列6kV高压三相异步电动机技术数据表(H710-H1000) YKK Series 6000V Three Phase Asynchronous Motors Technical Data(H710- 1000) |
||||||||||
|
型 号 TYPE |
额定 功率 RATED POWER (kW) |
额定 电流 STATOR CURRENT (A) |
额定 转速 RATED ROTATING SPEED (r/min) |
效率 η% EFFI- IENCY |
功率 因数 cosΦ POWER FACTOR |
最大 转矩 MAX TORQ —— 额定 转矩 RATED TORQ |
起动 转矩 LOCKED TORQ 额定 转矩 RATED TORQ |
起动 电流 LOCKED CURRENT 额定 电流 RATED CURRENT |
负载 转动 惯量 J LOAD INERTIA kg..m2 |
电机 重量 WEIGHT (Kg) |
|
YKK10001- 10 YKK10002- 10 YKK10003- 10 |
3550 4000 4500 |
420 473 531 |
593 593 593 |
95.54 95.63 95.71 |
0.843 0.845 0.846 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
7750 8850 9950 |
31800 31870 32920 |
|
YKK7101- 12 YKK7102- 12 YKK7103- 12 |
900 1000 1120 |
116 128 144 |
492 492 493 |
94.26 94.35 94.42 |
0.798 0.802 0.803 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
2980 3200 3500 |
11450 12800 13200 |
|
YKK8001- 12 YKK8002- 12 YKK8003- 12 YKK8004- 12 |
1250 1400 1600 1800 |
161 180 203 232 |
493 493 493 493 |
94.43 94.53 94.64 94.62 |
0.803 0.804 0.805 0.808 |
1.8 1.8 1.8 1.8 |
0.6 0.6 0.6 0.6 |
6.0 6.0 6.0 6.0 |
3900 4300 4800 5300 |
16210 17230 18620 19560 |
|
YKK9001- 12 YKK9002- 12 YKK9003- 12 |
2000 2240 2500 |
254 284 317 |
492 492 492 |
94.74 94.83 94.92 |
0.813 0.814 0.815 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
6400 6900 5500 |
22500 22900 23500 |
|
YKK10001- 12 YKK10002- 12 YKK10003- 12 |
2800 3150 3550 |
355 399 449 |
495 495 495 |
95.12 95.23 95.34 |
0.821 0.824 0.825 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
6200 6900 7700 |
31050 32320 34380 |
|
YKK7101- 16 YKK7102- 16 YKK7103- 16 YKK7104- 16 |
500 560 630 710 |
71 80 89 100 |
375 375 375 375 |
93.32 93.41 93.52 93.61 |
0.742 0.744 0.746 0.748 |
1.8 1.8 1.8 1.8 |
0.6 0.6 0.6 0.6 |
6.0 6.0 6.0 6.0 |
2840 3185 3530 3880 |
11800 12340 12890 13300 |
|
YKK8001- 16 YKK8002- 16 YKK8003- 16 YKK8004- 16 |
800 900 1000 1120 |
113 127 141 158 |
375 375 375 375 |
93.72 93.82 93.92 94.03 |
0.750 0.751 0.752 0.753 |
1.8 1.8 1.8 1.8 |
0.6 0.6 0.6 0.6 |
6.0 6.0 6.0 6.0 |
4330 4880 5380 6100 |
15120 15800 16230 16890 |
|
YKK9001- 16 YKK9002- 16 YKK9003- 16 |
1250 1400 1600 |
174 195 222 |
375 375 375 |
94.12 94.22 94.32 |
0.762 0.763 0.764 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
7000 7900 8900 |
21890 22990 23680 |
|
YKK10001- 16 YKK10002- 16 YKK10003- 16 |
1800 2000 2240 |
250 277 310 |
375 375 375 |
94.45 94.53 94.62 |
0.765 0.766 0.768 |
1.8 1.8 1.8 |
0.6 0.6 0.6 |
6.0 6.0 6.0 |
10010 11370 12740 |
30580 31495 32750 |
