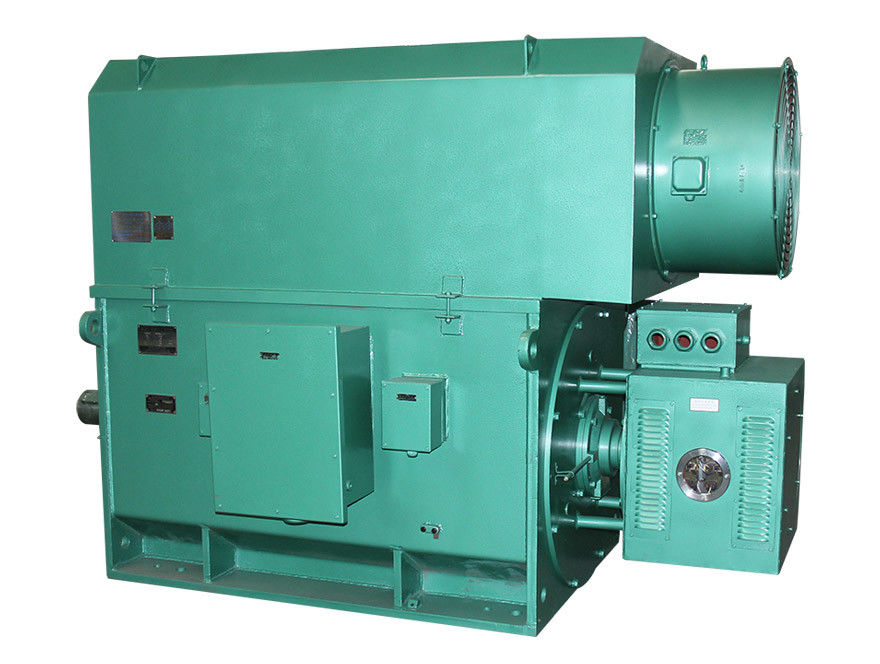

YKK YRKK Series 6kV Asynchronous Squirrel Cage Motor Three Phase Asynchronous Motor
High Voltage Asynchronous Motor Overview
The protection level of YKK YRKK high voltage three-phase asynchronous motor is IP44 or IP54, and the cooling method is ICW81A.
The rotor of YKK YRKK series high voltage motor adopts a squirrel cage structure with reliable cast aluminium or copper conductors. There are two types of bearings, rolling bearing and sliding bearing, depending on the speed and power of the motor.
YKK YRKK series high voltage motors can be used to drive various general machinery, such as compressors, pumps, fans, crushers, cutting machines, transport machinery and other mechanical equipment. In mining, machinery industry, power plant and other industrial and mining enterprises as the prime mover. Used to drive blowers, coal mills, rolling mills, winches, etc. should be explained when ordering.
High Voltage Asynchronous Motor Specification
|
3.YRKK系列6kV高压三相异步电动机技术数据表(H355-H630) YRKK Series 6000V Asynchronous 3 Phase Motor Technical Data(H355-630) |
|||||||||
|
型 号 TYPE |
额定 功率 RATED POWER (kW) |
定子 电流 STATOR CURRENT (A) |
额定 转速 RATED ROTATING SPEED (r/min) |
效率 η% EFFI- IENY |
功率 因数 cosΦ POWER FACTOR |
最大 转矩 MAX TORQ
额定 转矩 RATEDTORQ |
转子 电压 ROTOR VOLTAGE (V) |
转子 电流 ROTOR CURRENT (A) |
电机 重量 WEIGHT (Kg) |
|
YRKK3551-4 YRKK3552-4 YRKK3553-4 |
185 200 220 |
23.6 25.4 27.3 |
1475 1476 1476 |
92.21 92.43 92.62 |
0.848 0.850 0.852 |
1.8 1.8 1.8 |
287 297 318 |
400 406 416 |
2650 2700 2800 |
|
YRKK4001-4 YRKK4002-4 YRKK4003-4 YRKK4004-4 YRKK4005-4 |
250 280 315 355 400 |
31.1 34.8 39.1 44.1 49.3 |
1482 1482 1482 1482 1482 |
92.91 93.02 93.12 93.22 93.42 |
0.856 0.862 0.864 0.866 0.868 |
1.8 1.8 1.8 1.8 1.8 |
354 355 385 421 463 |
435 487 505 520 530 |
3700 3750 3850 3900 4000 |
|
YRKK4501-4 YRKK4502-4 YRKK4503-4 YRKK4504-4 YRKK4505-4 |
450 500 560 630 710 |
55.0 60.3 67.6 75.8 84.3 |
1485 1486 1486 1486 1486 |
93.72 93.84 94.12 94.43 94.52 |
0.870 0.871 0.873 0.875 0.878 |
1.8 1.8 1.8 1.8 1.8 |
383 419 461 513 577 |
740 750 761 767 764 |
4250 4300 4400 4500 4600 |
|
YRKK5001-4 YRKK5002-4 YRKK5003-4 YRKK5004-4 |
800 900 1000 1120 |
94.9 106.7 118.4 130.9 |
1488 1488 1488 1488 |
94.63 94.72 94.82 94.92 |
0.880 0.882 0.890 0.892 |
1.8 1.8 1.8 1.8 |
872 930 1071 1162 |
566 598 572 590 |
5200 5300 5450 5600 |
|
YRKK5602-4 YRKK5603-4 |
1250 1400 |
131.6 146.8 |
1488 1488 |
95.02 95.12 |
0.893 0.894 |
1.8 1.8 |
1096 1190 |
708 731 |
6500 6650 |
|
YRKK6301-4 YRKK6302-4 YRKK6303-4 |
1600 1800 2000 |
187.3 210.5 233.6 |
1489 1489 1489 |
95.21 95.32 95.43 |
0.896 0.897 0.899 |
1.8 1.8 1.8 |
1409 1566 1763 |
705 711 702 |
8700 9100 9500 |
|
YRKK4001-6 YRKK4002-6 YRKK4003-6 YRKK4004-6 YRKK4005-6 |
185 200 220 250 280 |
24.5 26.3 29.0 32.8 36.7 |
988 988 988 988 988 |
92.10 92.24 92.51 92.71 92.82 |
0.832 0.834 0.836 0.838 0.840 |
1.8 1.8 1.8 1.8 1.8 |
292 292 312 336 365 |
397 430 441 465 479 |
3150 3350 3550 3700 3800 |
|
YRKK4501-6 YRKK4502-6 YRKK4503-6 YRKK4504-6 YRKK4505-6 |
315 355 400 450 500 |
40.2 45.2 50.7 57.0 62.5 |
988 988 988 988 988 |
93.02 93.21 93.51 93.62 93.82 |
0.842 0.840 0.842 0.843 0.845 |
1.8 1.8 1.8 1.8 1.8 |
348 377 411 453 503 |
568 591 608 621 618 |
4200 4350 4500 4750 4900 |
|
YRKK5001-6 YRKK5002-6 YRKK5003-6 YRKK5004-6 |
560 630 710 800 |
69.4 77.8 87.5 97.2 |
989 989 989 989 |
94.02 94.32 94.52 94.73 |
0.852 0.853 0.862 0.872 |
1.8 1.8 1.8 1.8 |
671 740 824 927 |
530 540 546 543 |
5400 5500 5750 6000 |
|
YRKK5602-6 YRKK5603-6 |
900 1000 |
97.7 109.8 |
990 990 |
94.82 95.02 |
0.872 0.874 |
1.8 1.8 |
1141 1238 |
487 500 |
6500 6650 |
|
YRKK6301-6 YRKK6302-6 YRKK6303-6 |
1120 1250 1400 |
136.1 151.7 169.7 |
992 992 992 |
95.12 95.22 96.32 |
0.876 0.878 0.880 |
1.8 1.8 1.8 |
1146 1242 1355 |
612 630 646 |
9100 9300 9700 |
|
YRKK4004-8 YRKK4005-8 |
185 200 |
26.0 27.9 |
740 739 |
92.02 92.20 |
0.792 0.793 |
1.8 1.8 |
292 311 |
400 404 |
3850 4000 |
|
3.YRKK系列6kV高压三相异步电动机技术数据表(H355-H630) YRKK Series 6000V Asynchronous 3 Phase Motor Technical Data(H355-630) |
|||||||||
|
型 号 TYPE |
额定 功率 RATED POWER (kW) |
定子 电流 STATOR CURRENT (A) |
额定 转速 RATED ROTATING SPEED (r/min) |
效率 η% EFFI- IENY |
功率 因数 cosΦ POWER FACTOR |
最大 转矩 MAX TORQ
额定 转矩 RATEDTORQ |
转子 电压 ROTOR VOLTAGE (V) |
转子 电流 ROTOR CURRENT (A) |
电机 重量 WEIGHT (Kg) |
|
YRKK4501-8 YRKK4502-8 YRKK4503-8 YRKK4504-8 YRKK4505-8 |
220 250 280 315 355 |
30.2 34.2 38.2 43.0 47.8 |
741 741 741 741 742 |
92.40 92.51 92.73 92.82 92.92 |
0.801 0.803 0.805 0.807 0.809 |
1.8 1.8 1.8 1.8 1.8 |
503 540 582 632 690 |
272 288 299 310 320 |
4150 4300 4500 4650 4800 |
|
YRKK5001-8 YRKK5002-8 YRKK5003-8 YRKK5004-8 |
400 450 500 560 |
53.5 60.0 66.3 73.5 |
741 741 741 742 |
93.21 93.31 93.76 93.91 |
0.812 0.814 0.816 0.818 |
1.8 1.8 1.8 1.8 |
572 619 678 746 |
446 463 472 479 |
4850 5100 5350 5700 |
|
YRKK5602-8 YRKK5603-8 YRKK5604-8 |
630 710 800 |
82.5 93.0 104.4 |
742 741 741 |
94.12 94.21 94.43 |
0.821 0.822 0.824 |
1.8 1.8 1.8 |
892 949 1083 |
446 476 465 |
6250 6500 6750 |
|
YRKK6301-8 YRKK6302-8 YRKK6303-8 YRKK6304-8 |
900 1000 1120 1250 |
117.4 130.3 145.6 162.3 |
743 743 743 743 |
94.52 94.61 94.72 94.82 |
0.826 0.827 0.829 0.830 |
1.8 1.8 1.8 1.8 |
1095 1180 1279 1394 |
514 531 549 561 |
8700 9000 9400 9700 |
|
YRKK4501- 10 YRKK4502- 10 YRKK4503- 10 YRKK4504- 10 |
185 200 220 250 |
27.0 29.0 31.7 36.0 |
587 587 588 588 |
91.08 91.28 91.48 91.70 |
0.772 0.774 0.775 0.778 |
1.8 1.8 1.8 1.8 |
473 473 509 552 |
246 268 274 287 |
4300 4450 4650 4850 |
|
YRKK5001- 10 YRKK5002- 10 YRKK5003- 10 YRKK5004- 10 |
280 315 355 400 |
38.3 43.1 48.4 54.2 |
593 593 593 593 |
92.01 92.12 92.25 93.01 |
0.780 0.782 0.784 0.786 |
1.8 1.8 1.8 1.8 |
692 692 392 763 |
252 284 320 327 |
5250 5500 5800 6150 |
|
YRKK5601- 10 YRKK5602- 10 YRKK5603- 10 YRKK5604- 10 |
450 500 560 630 |
61.9 68.6 76.7 86.1 |
593 592 592 592 |
93.32 93.52 93.71 93.82 |
0.788 0.792 0.794 0.796 |
1.8 1.8 1.8 1.8 |
1089 1090 1174 1272 |
254 283 294 306 |
6500 6800 7150 7400 |
|
YRKK6301- 10 YRKK6302- 10 YRKK6303- 10 YRKK6304- 10 |
710 800 900 1000 |
95.6 107.6 120.9 134.1 |
593 592 592 592 |
93.91 94.02 94.13 94.32 |
0.798 0.802 0.805 0.807 |
1.8 1.8 1.8 1.8 |
938 1012 1096 1195 |
478 503 523 532 |
8500 9300 9600 9950 |
|
YRKK4504- 12 YRKK4505- 12 |
185 200 |
28.7 30.9 |
489 489 |
90.82 91.02 |
0.712 0.714 |
1.8 1.8 |
509 551 |
229 232 |
4500 4550 |
|
YRKK5001- 12 YRKK5002- 12 YRKK5003- 12 YRKK5004- 12 |
220 250 280 315 |
32.2 36.6 40.4 45.3 |
493 493 493 493 |
91.22 91.52 91.93 92.23 |
0.732 0.734 0.735 0.737 |
1.8 1.8 1.8 1.8 |
528 538 584 638 |
255 290 299 309 |
4900 5200 5450 5600 |
|
YRKK5602- 12 YRKK5603- 12 YRKK5604- 12 |
355 400 450 |
50.4 58.5 65.7 |
494 494 494 |
92.32 92.51 92.71 |
0.739 0.742 0.743 |
1.8 1.8 1.8 |
838 894 959 |
261 277 290 |
5800 5950 6250 |
|
YRKK6301- 12 YRKK6302- 12 YRKK6303- 12 YRKK6304- 12 |
500 560 630 710 |
71.8 80.3 90.3 101.6 |
495 494 494 494 |
92.92 93.02 93.12 93.21 |
0.744 0.746 0.748 0.750 |
1.8 1.8 1.8 1.8 |
738 828 949 1022 |
436 431 421 443 |
8200 8500 9000 9600 |
|
4.YRKK系列6kV高压三相异步电动机技术数据表(H710-H1000) YRKK Series 6000V Asynchronous 3 Phase Motor Technical Data(H710- 1000) |
|||||||||
|
型 号 TYPE |
额定 功率 RATED POWER (kW) |
定子 电流 STATOR CURRENT (A) |
额定 转速 RATED ROTATING SPEED (r/min) |
效率 η% EFFI- IENY |
功率 因数 cosΦ POWER FACTOR |
最大 转矩 MAX TORQ
额定 转矩 RATEDTORQ |
转子 电压 ROTOR VOLTAGE (V) |
转子 电流 ROTOR CURRENT (A) |
电机 重量 WEIGHT (Kg) |
|
YRKK7101-4 YRKK7102-4 YRKK7103-4 YRKK7104-4 |
2240 2500 2800 3150 |
250.5 278.0 310.8 356.2 |
1500 1500 1500 1500 |
95.72 95.82 95.92 96.03 |
0.861 0.862 0.864 0.865 |
1.8 1.8 1.8 1.8 |
1766 1883 2012 2175 |
775 829 847 885 |
12200 12760 13130 14500 |
|
YRKK8001-4 YRKK8002-4 YRKK8003-4 |
3550 4000 4500 |
402.2 453.3 511.6 |
1489 1489 1489 |
96.13 96.23 96.35 |
0.868 0.871 0.872 |
1.8 1.8 1.8 |
1980 2200 2465 |
975 1056 1093 |
15670 16000 16780 |
|
YRKK7101-6 YRKK7102-6 YRKK7103-6 YRKK7104-6 |
1600 1800 2000 2240 |
193.1 217.0 238.1 266.6 |
992 992 992 992 |
95.53 95.62 95.72 95.81 |
0.852 0.853 0.854 0.856 |
1.8 1.8 1.8 1.8 |
1241 1488 1596 1864 |
811 751 779 742 |
12500 13000 13580 12800 |
|
YRKK8001-6 YRKK8002-6 YRKK8003-6 YRKK8004-6 |
2500 2800 3150 3550 |
301.1 333.2 374.3 421.4 |
992 992 992 992 |
95.92 96.05 96.13 96.23 |
0.858 0.861 0.862 0.863 |
1.8 1.8 1.8 1.8 |
1815 1921 2116 2352 |
831 910 928 937 |
16500 17200 18500 19230 |
|
YRKK9001-6 YRKK9002-6 YRKK9003-6 |
4000 4500 5000 |
474.0 533.0 592.0 |
993 993 994 |
96.31 96.42 96.51 |
0.864 0.865 0.868 |
1.8 1.8 1.8 |
1420 1522 1639 |
1735 1824 1880 |
22500 23500 24600 |
|
YRKK7101-8 YRKK7102-8 YRKK7103-8 YRKK7104-8 |
1400 1600 1800 2000 |
172.9 197.6 222.1 246.8 |
743 743 743 743 |
94.92 95.03 95.12 95.25 |
0.832 0.834 0.836 0.838 |
1.8 1.8 1.8 1.8 |
1182 1282 1399 1538 |
749 793 818 823 |
12000 12500 13120 13760 |
|
YRKK8001-8 YRKK8002-8 YRKK8003-8 |
2240 2500 2800 |
267.8 268.0 334.0 |
743 743 743 |
95.32 95.41 95.52 |
0.841 0.842 0.845 |
1.8 1.8 1.8 |
1703 2231 2322 |
777 680 729 |
15900 16670 17500 |
|
YRKK9001-8 YRKK9002-8 YRKK9003-8 |
3150 3550 4000 |
378.0 433.0 472.3 |
743 743 743 |
95.62 95.71 95.83 |
0.847 0.849 0.852 |
1.8 1.8 1.8 |
1325 1449 2803 |
1481 1537 949 |
22900 23450 24630 |
|
YRKK7101- 10 YRKK7102- 10 YRKK7103- 10 YRKK7104- 10 |
1120 1250 1400 1600 |
138.8 152.8 171.4 195.6 |
593 593 593 592 |
94.32 94.42 94.52 94.62 |
0.808 0.810 0.812 0.814 |
1.8 1.8 1.8 1.8 |
1601 1601 1778 1796 |
482 543 556 632 |
11580 12560 13455 14570 |
|
YRKK8001- 10 YRKK8002- 10 YRKK8003- 10 |
1800 2000 2240 |
221.2 246.3 276.8 |
592 593 593 |
94.74 94.84 94.93 |
0.815 0.818 0.821 |
1.8 1.8 1.8 |
1526 1697 1910 |
632 741 825 |
16500 17200 18210 |
|
YRKK9001- 10 YRKK9002- 10 YRKK9003- 10 YRKK9004- 10 |
2500 2800 3150 3550 |
306.7 344.2 384.5 433.9 |
593 593 593 592 |
95.08 95.16 95.25 95.31 |
0.823 0.825 0.828 0.831 |
1.8 1.8 1.8 1.8 |
1912 2186 2184 2549 |
811 904 882 1007 |
23500 14020 15980 26050 |
|
YRKK10001- 10 YRKK10002- 10 YRKK10003- 10 |
4000 4500 5000 |
476 538 593 |
592 592 592 |
95.43 95.51 95.63 |
0.832 0.834 0.836 |
1.8 1.8 1.8 |
1860 2069 2332 |
1133 1472 1468 |
32340 33750 34895 |
|
YRKK7101- 12 YRKK7102- 12 YRKK7103- 12 YRKK7104- 12 |
800 900 1000 1120 |
107.4 115.6 126.5 142.3 |
495 494 494 494 |
93.74 93.81 93.92 94.02 |
0.781 0.783 0.785 0.787 |
1.8 1.8 1.8 1.8 |
938 1006 1084 1174 |
540 569 590 611 |
11500 12000 13020 13560 |
