    LZ Type Elastic Couplings

    ,

    Cast Iron Elastic Couplings

    ,

    5000r/min Pin Bush Coupling

  • Product Name
    Elastic Pin Coupling
  • Material
    Cast Iron/Steel
  • Specification
    As Your Requirement
  • Flexible Or Rigid
    Flexible
  • Color
    Black
  • Feature
    Long Operating Life
  • Place of Origin
    China
  • Certification
    GB/T5015-2003
  • Model Number
    LZ Type

LZ Type Elastic Pin Gear Coupling Flexible Pin Bush Coupling Cushioning Damping Wear Resistance

  • LZ Type Elastic Pin Gear Coupling Flexible Pin Bush Coupling Cushioning Damping Wear Resistance
Get Price Contact Now

LZ Type Elastic Pin Gear Coupling Flexible Pin Bush Coupling Cushioning Damping Wear Resistance



Product Overview



LZ High Quality Elastic Pin Gear Coupling uses nylon rod to turn the column pin into the opposite hole between the two half coupling and the outer ring inner surface, and transfers the torque through the column pin to realize the connection between two half couplings. It has certain shaft offset compensation ability and shock absorption performance. LZ High Quality Elastic Pin Gear Coupling is symmetrical and interchangeable, long life, allowing large axial movement, and has the performance of cushioning, damping, wear resistance and so on. The shaft holes of the two axle head of the pin type coupling of the LZ elastic column are all straight holes.



Product Parameter



型号

公称转矩

T.

N·m

许用

转速[n]

/r·min²¹

轴孔直径

d₁d₂

 轴孔长度



D

 D₁



B



S

转动惯量

l/kg·m²

质量m/

kg
Y型 J,型
LZ1 112





5000

 12,14 32 27 76 40 42 2.5 0.001 1.53
16,18,19 42 30 1.60
20,22,24 52 38 1.67



LZ2



250

 16,18,19 42 30



90



50



50



2.5

 0.002 2.70
20,22,24 52 38 2.76
25,28 62 44 0.003 2.79
30,32 82 60 3.00

ZL3

LZ3

 630 4500 25,28 62 44 118 65 70 3.0 0.011 6.49
30,32,35,38 82 60 7.05
40,42 112 84 0.012 7.31
LZ4 1800 4200 40,42,45,48,50,55,56 158 90 90 4 0.044 16.20
60 142 107 0.45 15.25
LZ5 4500 40000 50,55,56 112 84 192 120 90 4 0.100 24.82
60,63,65,70,71,75 142 107 0.107 27.02
80 172 132 0.108 25.44
LZ6 8000 3300 60,63,70,71,75 142 107 230 130 112 5 0.238 40.89
80.85.90,95 172 132 0.242 40.15
71 7 11200 2900 70,71,75 142 107 260 160 112 5 0.406 54.93
80,85,90,95 172 132 0.428 59.14
100,110 212 167 0.443 59.60
LZ8 18000 2500 80,85,90,95 172 132 300 190 128 6 0.860 89.35
100,110,120,125 212 167 0.911 94.67
130 252 202 0.908 87.43
LZ9 25000 2300 90,95 172 132 335 220 150 7 1.559 113.9
100,110,120,125 212 167 1.678 138.1
130,140,150 252 202 1.733 136.6
LZ10 31500 2100 100,110,120,125 212 167 355 245 152 8 2.236 165.5
130,140.150 252 202 2.362 169.3
160,170 302 242 2.422 164
LZ11 40000 2000 110,120,125 212 167 380 260 172 8 3.054 190.9
130,140,150 252 202 3.249 203.1
160,170,180 302 242 3.369 202.1
LZ12 63000 1700 130,140,150 252 202 445 290 182 8 6.146 288.5
160.170.180 302 242 6.432 296.6
190.200 352 282 6.524 288



LZ13



100000



1500

 150 252 202



515



345



218



8

 12.76 413.6
160,170,180 302 242 13.62 469.2
190,200.220 352 282 14.19 480
240 410 330 13.98 436.1
LZ14 125000 1400 170.180 302 242 560 390 218 8 19.90 581.5
190,200,220 352 282 21.17 621.7
240,250.260 410 330 21.67 599.4
LZ15 160000 1300 190.200.220 352 282 590 420 240 10 28.08 736.9
240,250.260 410 330 29.18 730.5
280,300 470 380 29.52 702.1



LZ16



250000



1000

 220 352 282



695



490



265



10

 56.21 1045
240,250.260 410 330 60.05 1129
280,300.320 470 380 60.56 1144
340 550 450 62.4 1064
型号

公称转矩 T₀

N·m

 许用 转速[n] /r ·min

轴孔直径

d₁d₂

 轴孔长度



D

 D₁



B



S

 转动惯量 /kg·m²

质量m/

kg
Y型 J,型
LZ17 315000 950 240,250,260 410 330 770 550 285 10 105.5 1500
280,300,320 470 380 102.3 1557
340,360,380 550 450 106 1535



LZ18



450000



850

 250,260 410 330



860



605



300



13

 152.3 1902
280,300,320 470 380 161.5 2025
340,360,380 550 450 169.9 2062
400,420 650 540 175.4 2029
LZ19 630000 750 280,300,320 470 380 970 695 322 14 283.7 2818
340,360,380 550 450 303.4 2963
400,420,440,450 650 540 3235 3068
LZ20 1120000 650 320 470 380 1160 800 355 15 581.2 4010
340,360,380 550 450 624.5 4426
400,420,440,450,460,480,500 650 540 669.4 4715
LZ21 1800000 530 380 550 450 1440 1020 360 18 1565 7293
400,420,440,450,460,480,500 650 540 1715 8228
530,560,600,630 800 680 1880 8699
LZ22 2240000 500 420,440,450,460,480,500 650 540 1520 1100 405 19 2338 9736
530,560,600,630 800 680 2596 10631
670,710,750 900 780 2522 9473



LZ23



2800000



460

 480,500 650 540



1640



1240



440



20

 3490 11946
530,560,600,630 800 680 3972 13822
670,710,750 900 780 3949 1226

800,850 1000 880 3982 12095

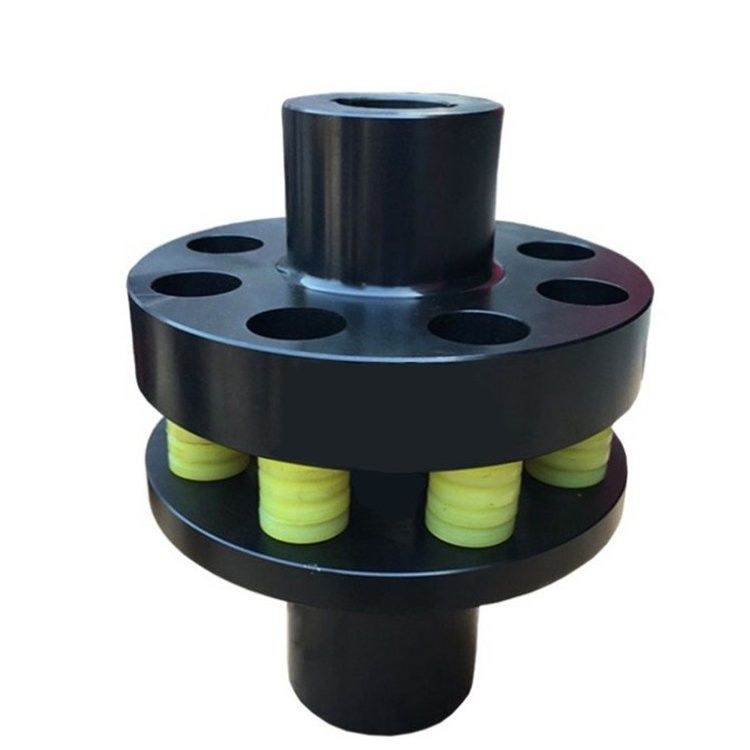

Product Image
